Tail Light Bulb: Service and Repair


Stop-Tail Light Bulb / REMOVAL
1. Remove rear combination light cover.
2. Remove rear gate trim access hole cover.

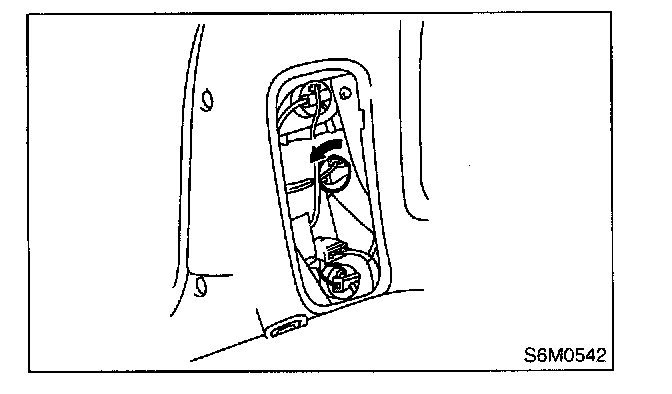

3. Turn the socket and remove the bulb.



INSTALLATION
Install in the reverse order of removal.
