Intake Air Duct: Service and Repair

REMOVAL

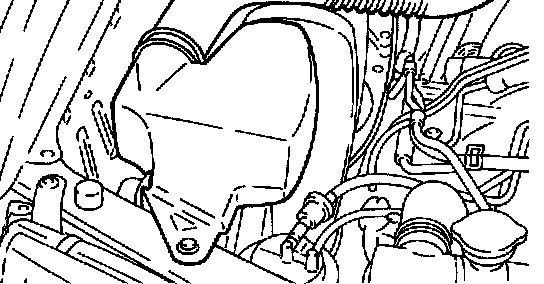

1) Remove bolts which secure air intake duct on the front side of body.

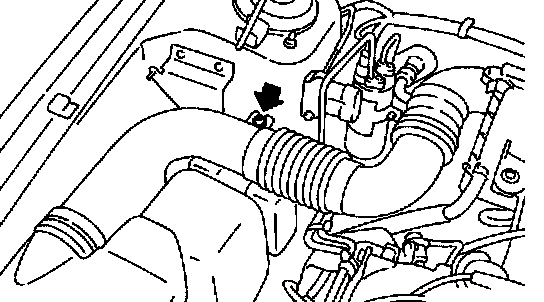

2) Remove bolt which secures air intake duct on body.

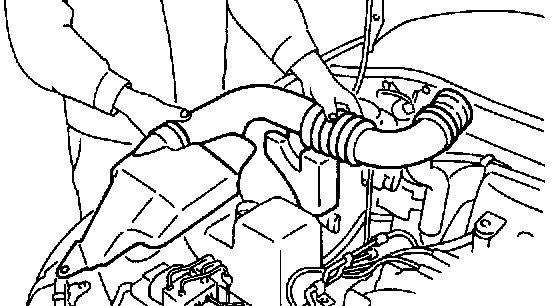

3) Remove air intake ducts as a unit.

INSTALLATION
Install in the reverse order of removal.
