Blower Motor Resistor: Testing and Inspection

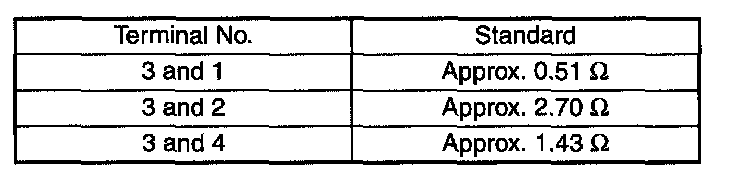

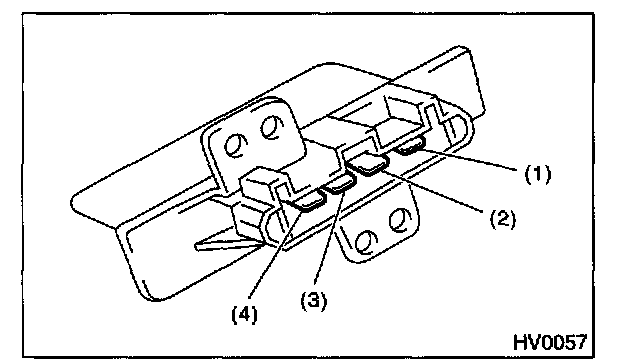

Measure the blower resistor resistance.





If NG, replace the blower resistor.
