Leak Detection Solenoid: Service and Repair

Fuel Pressure Control Solenoid Valve

REMOVAL

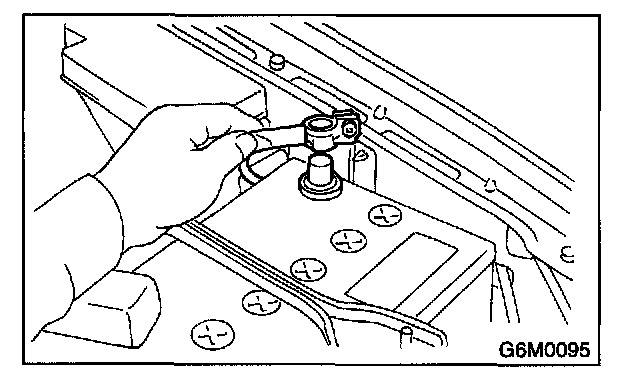

1. Disconnect the ground terminal from battery.
2. Remove the canister.

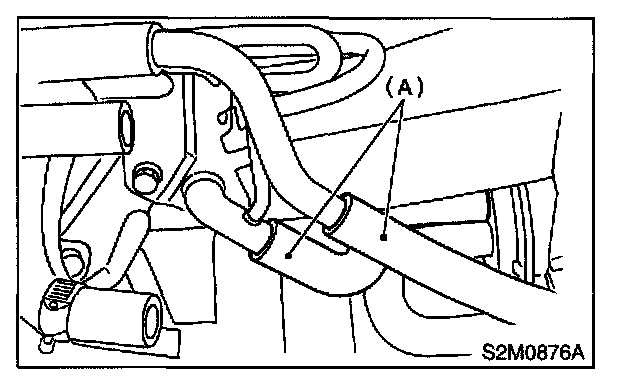

3. Disconnect the evaporation hoses (A) from joint pipes.




4. Remove the bolt which installs pressure control solenoid valve holding bracket on body.




5. Disconnect the connector from pressure control solenoid valve.




6. Disconnect the two evaporation hoses from pressure control solenoid valve.
7. Remove the pressure control solenoid valve with bracket.

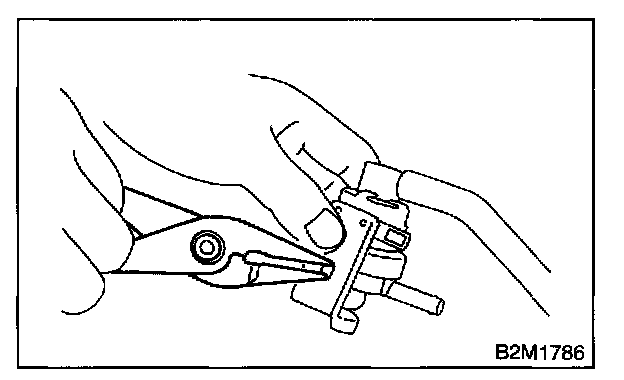

8. Remove the pressure control solenoid valve from bracket.

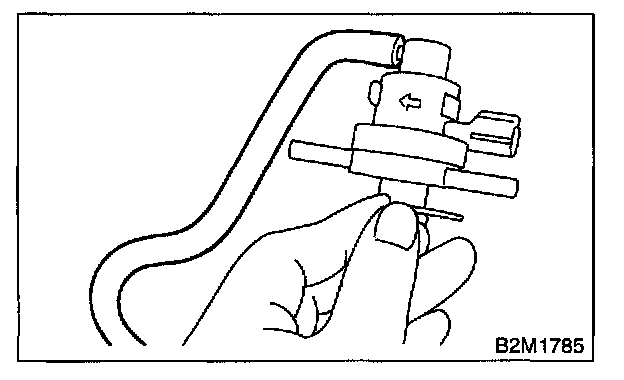

9. Disconnect the vacuum hose from pressure control solenoid valve.

INSTALLATION
1. Install in the reverse order of removal.




Tightening Torque: 17.6 Nm (1.8 kgf-m, 13.0 ft. lbs)

INSPECTION
Make sure the hoses are not cracked or loose.
