Dropping Resistor: Service and Repair

A: REMOVAL

NOTE: The dropping resister is only equipped to Non-turbo models.

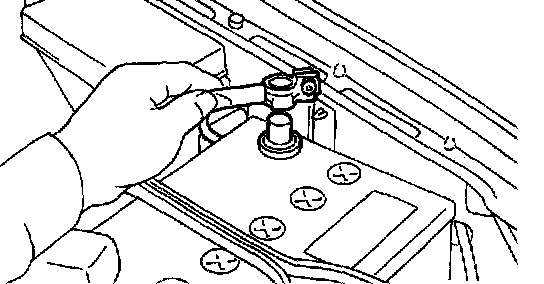

1. Disconnect the ground terminal from battery.
2. Remove the air intake duct.
3. Disconnect the connector from dropping resistor.

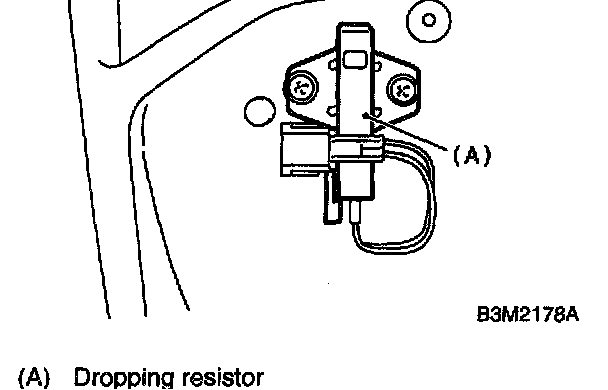

4. Remove the dropping resistor.

B: INSTALLATION





1. Install in the reverse order of removal.
Tightening torque: 6.4 Nm (0.65 kgf-cm, 4.7 ft. lbs.)
