Front

2. Front Brake Pad

REMOVAL
1) Set the vehicle on the lift.
2) Loosen the wheel nuts.
3) Jack-up the vehicle, and remove the front wheel.

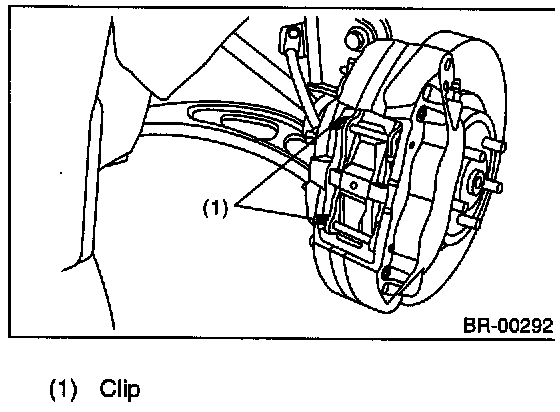

4) Remove the clip.





5) Remove the pad pins and cross spring.

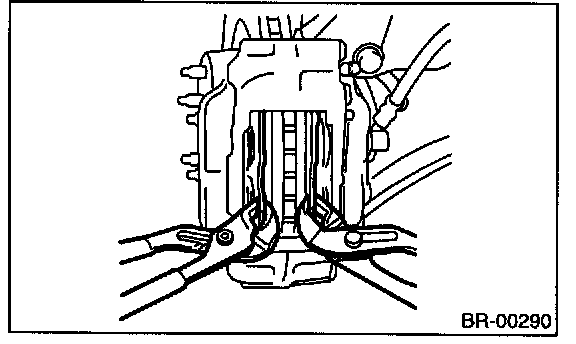

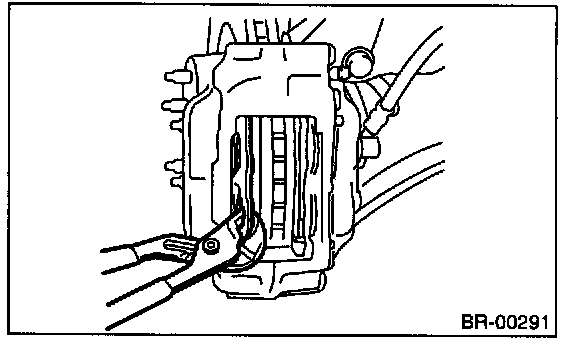

6 Use a wrench to expand the pads, and then push the piston back.





7) Remove the pad.






INSTALLATION

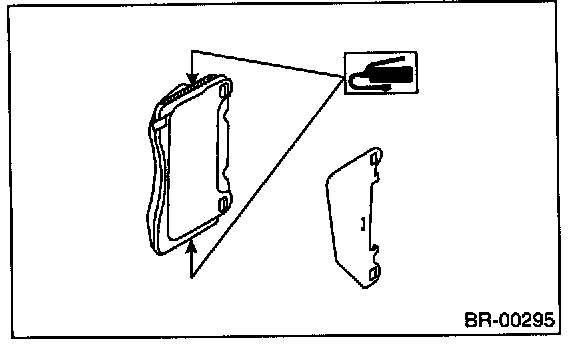

1) Apply a thin coat of Molykote AS880N (Part No. 26298AC000) to the frictional portion between pad and pad clip.





2) Apply a thin coat of Molykote AS880N (Part No. 26298AC000) to the frictional portion between pad and pad inner shim. (Non-turbo model)
3) Install the pads on support.
4) Install the caliper body on support.
Tightening torque: 26.5 Nm (2.70 kgf-m, 19.5 ft. lbs.)

NOTE: If it is difficult to push the piston during pad replacement, loosen the air bleeder to facilitate work.

5) Install the front wheel.
