Locations
>>

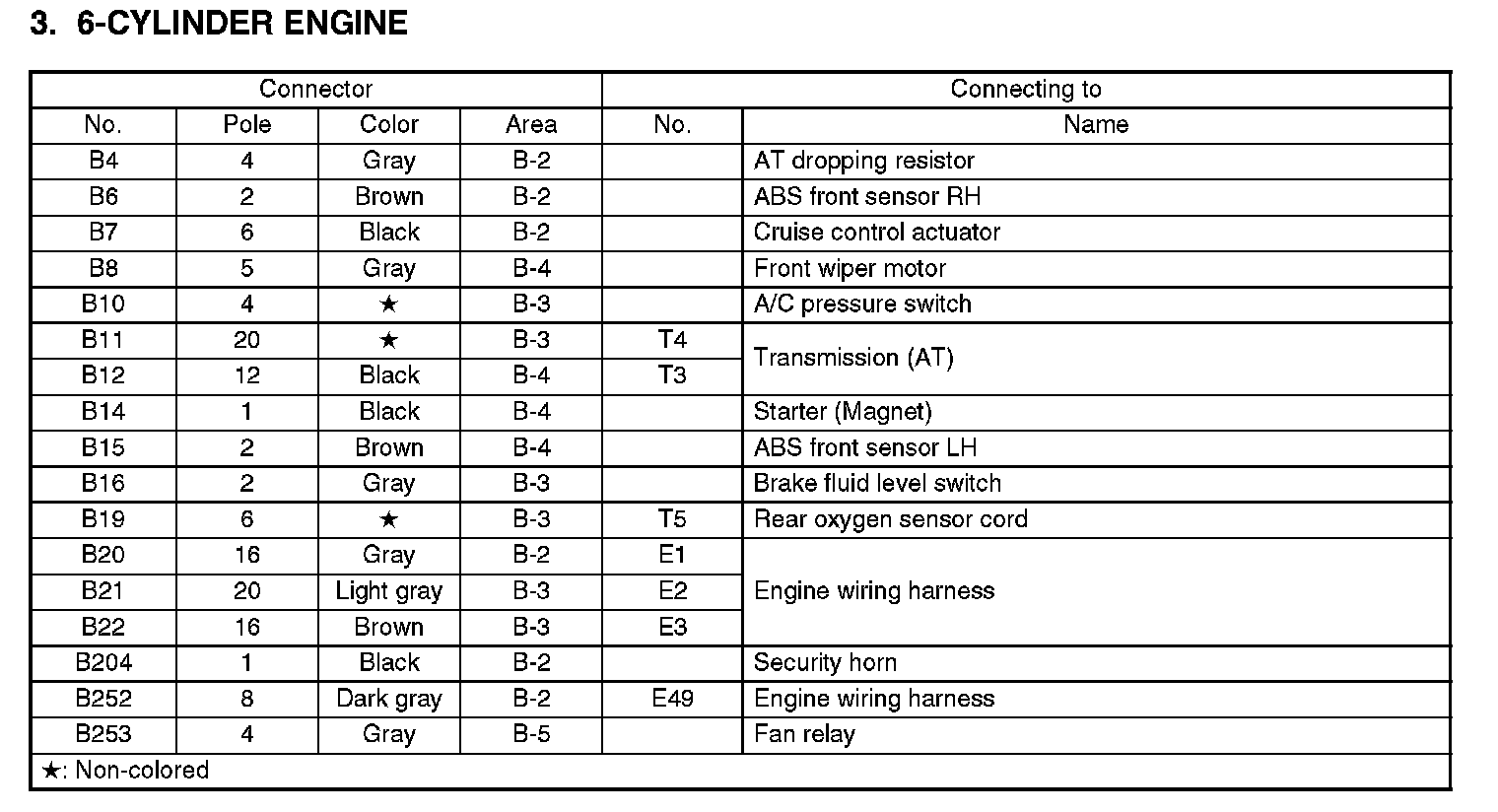

Connector Locations
>>
B4-B253
B4-B253
BULKHEAD WIRING HARNESS (IN ENGINE ROOM)
B4-B253:

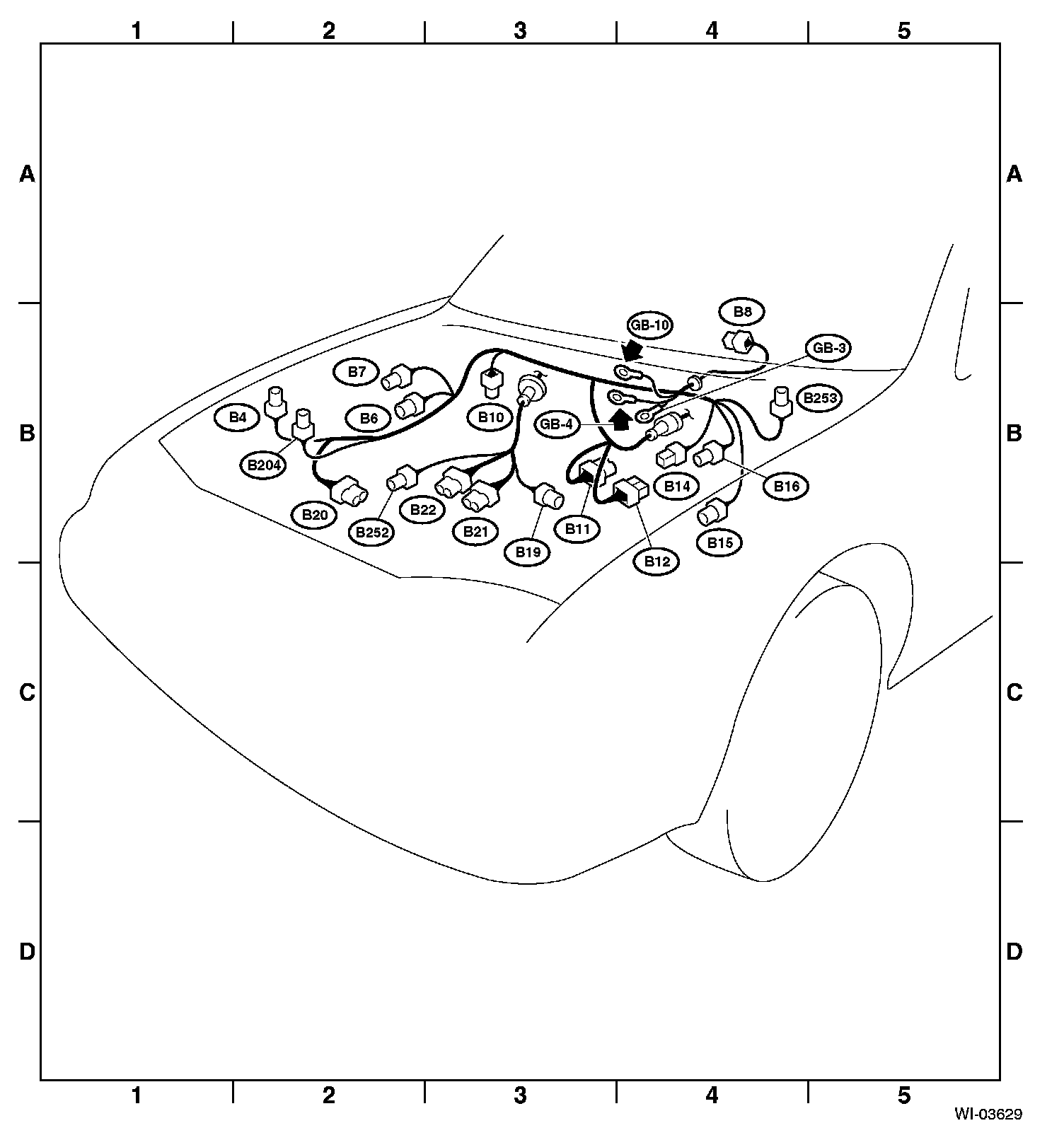

Area View:
