Removal and Installation
FRONT SEATREMOVAL
1. Disconnect the ground cable from battery.
CAUTION: The airbag system is fitted with a backup power source. If the airbag system is serviced within 20 seconds after the ground cable is disconnected, it may inflate.
2. While pressing the headrest lock button, remove the headrest.
3. Tilt forward the backrest.
4. Move the seat to full front end.

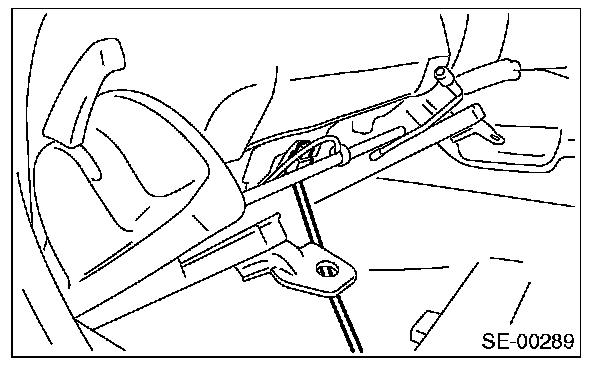

5. Remove the bolt cover at rear end of slide rail.
6. Remove the two bolts at rear side of seat rail.
7. Move the seat to full rear end.
8. Remove the two bolts at front side of seat rail.
9. Disconnect the connector under seat.
- Seat belt warning light connector (Driver's seat)
- Side airbag connector (with side airbag)
- Seat heater connector (with seat heater)
10. Remove the front seat from vehicle.
INSTALLATION
Install in the reverse order of removal.
Front Seat:
Tightening torque: Nm (kgf-m, ft-lb)
T1: 5.9 (0.60, 4.35)
T2: 10 (1.02, 7.38)
T3: 22 (2.24, 16.2)
T4: 30 (3.06, 22.1)
T5: 52 (5.30, 38.4)
T6: 53 (5.40, 39.1)
