Locations
>>
Connector Locations
>>
B3-B306 & AB15
B3-B306 & AB15
Bulkhead Wiring Harness (In Engine Room)

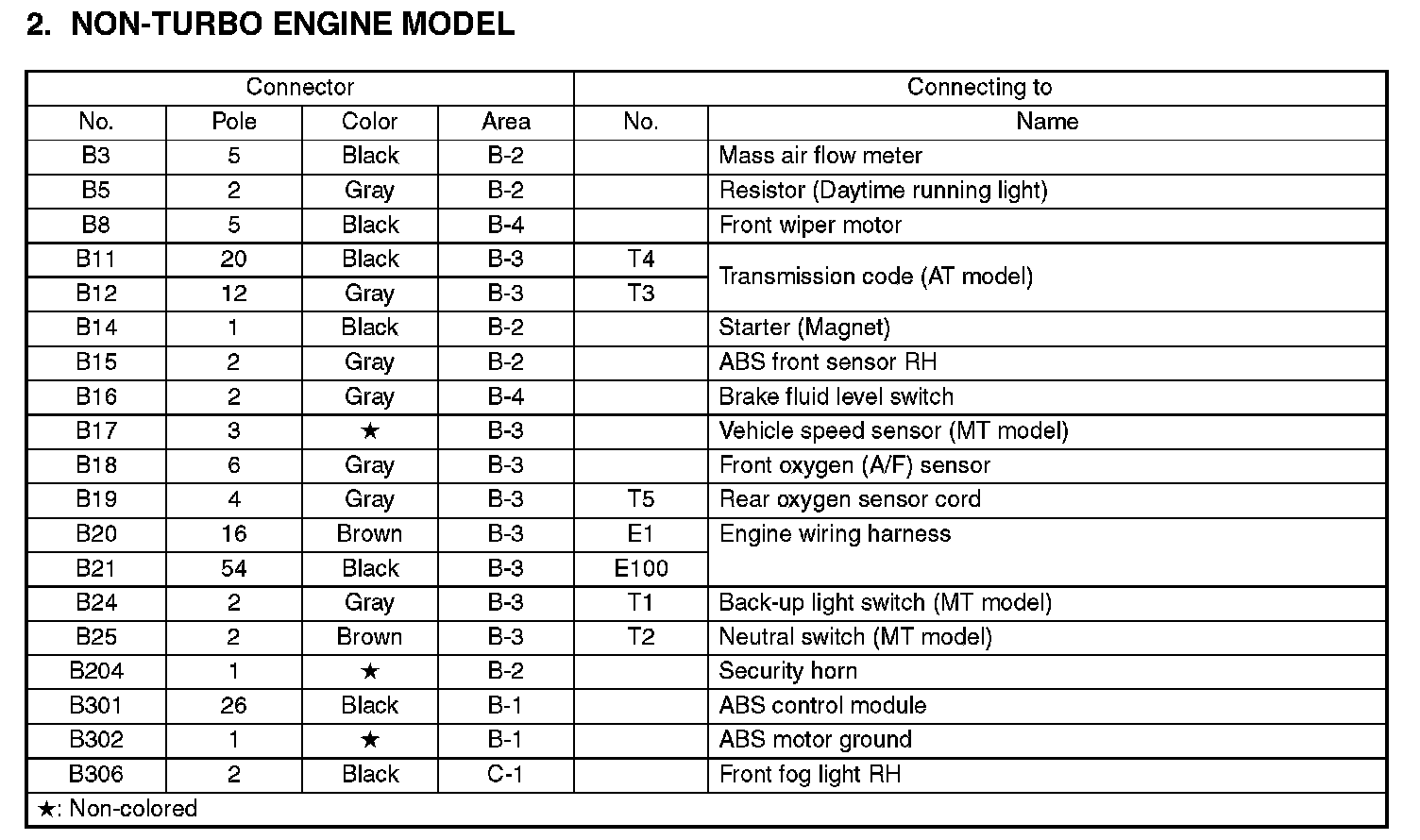

B3-B306:

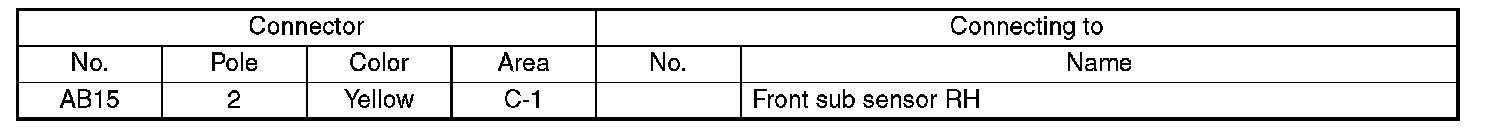

AB15:

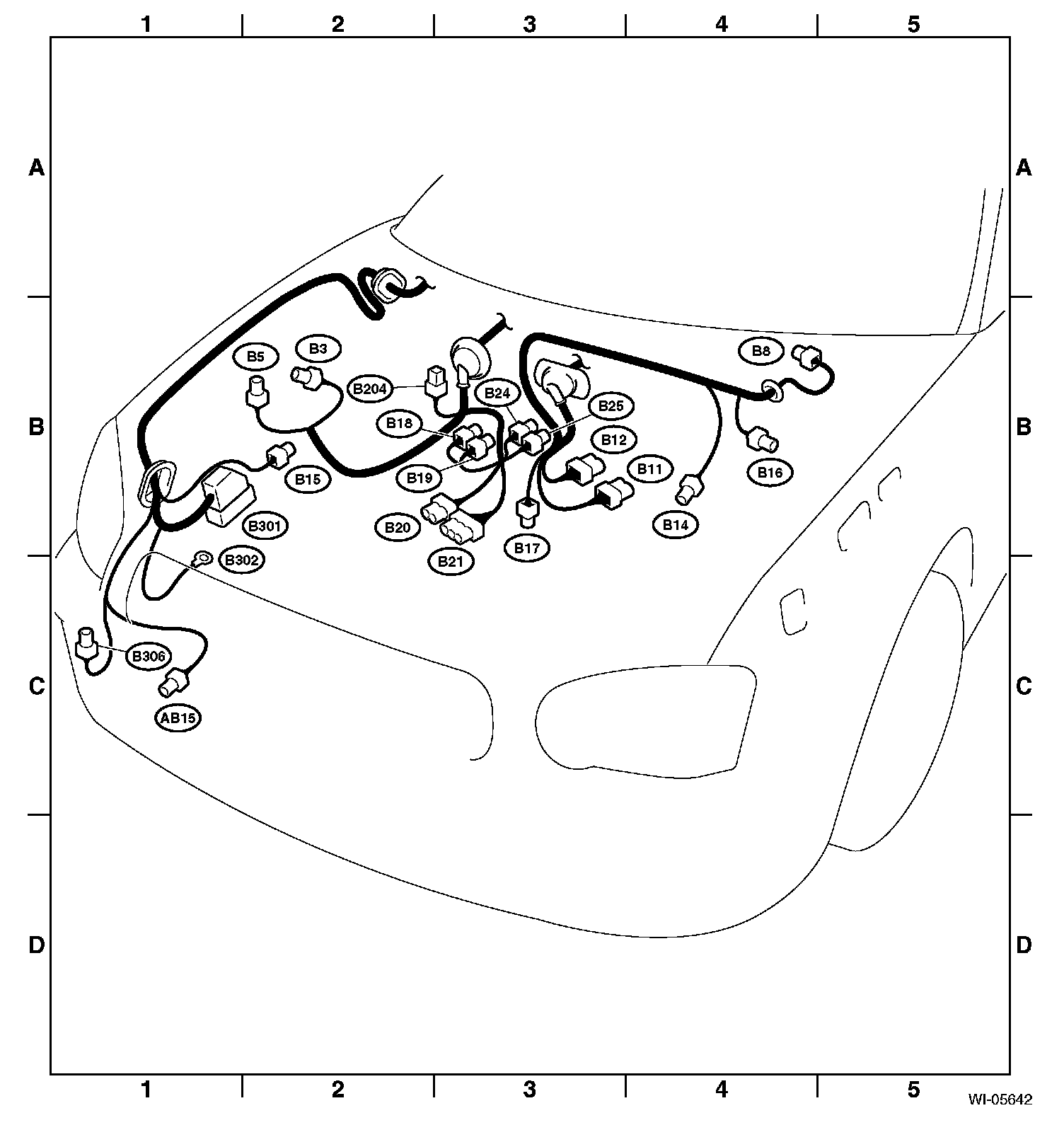

Area View:
