Brake Pedal Assy: Service and Repair
Brake PedalREMOVAL
1. Remove the steering shaft.

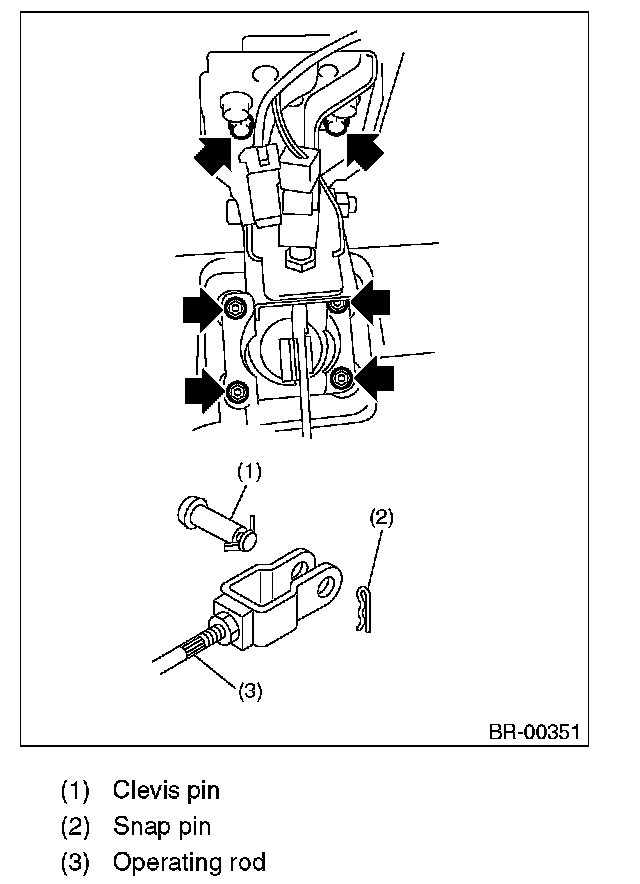

2. Disconnect the connector (stop light switch etc.) from the pedal bracket.
3. Remove the clevis pin which secures the lever and push rod.
4. Remove the bolt and nut which secures the pedal bracket.
INSTALLATION
1. Install in the reverse order of removal.
CAUTION: Always use a new clevis pin.
2. Check the brake pedal after installation.
