Cabin Air Filter / Purifier: Service and Repair

A/C Filter

REPLACEMENT
1. Remove the instrument panel lower cover.

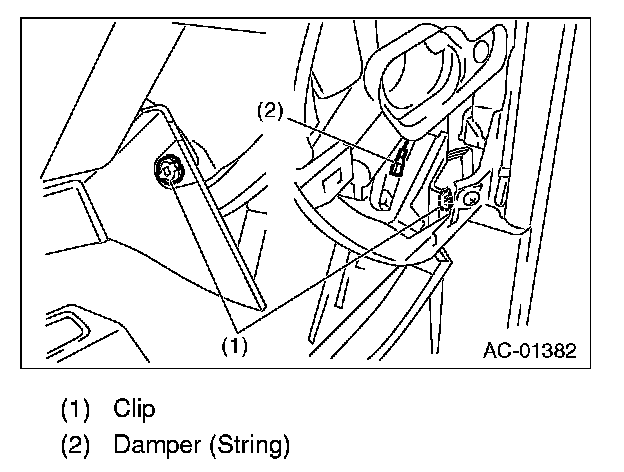

2. Remove the 2 clips and the damper (string)
3. Remove the glove box.

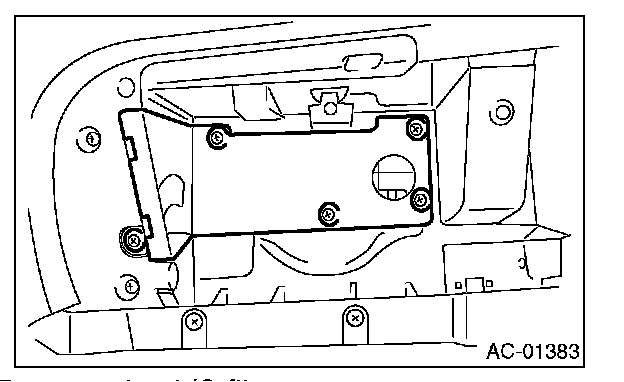

4. Remove the service hole cover.

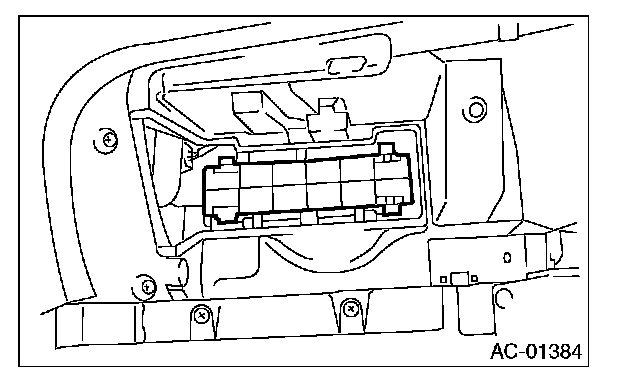

5. Remove the A/C filter.
6. Install in the reverse order of removal.
