A/C - Single/Dual System Refrigerant Capacities

B9 TRIBECA AIR CONDITIONING INFORMATION

With the introduction of the B9 Tribeca it is necessary to identify whether you are working on a Front A/C only model or a Front & Rear A/C model.

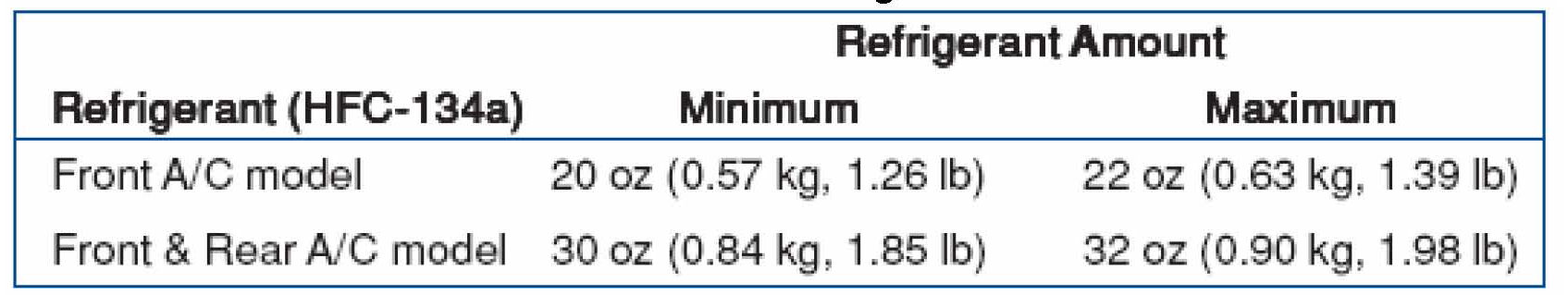

Note the chart has two different refriqerant amounts:

Make sure to choose the correct amount of refrigerant depending on the system you are working on. Following the information above will ensure the system is not under or overcharged after repairs have been made.

Question: When was the last time your air conditioning recycling equipment/ machine was calibrated?
