Muffler: Service and Repair

Muffler

FRONT EXHAUST PIPE:

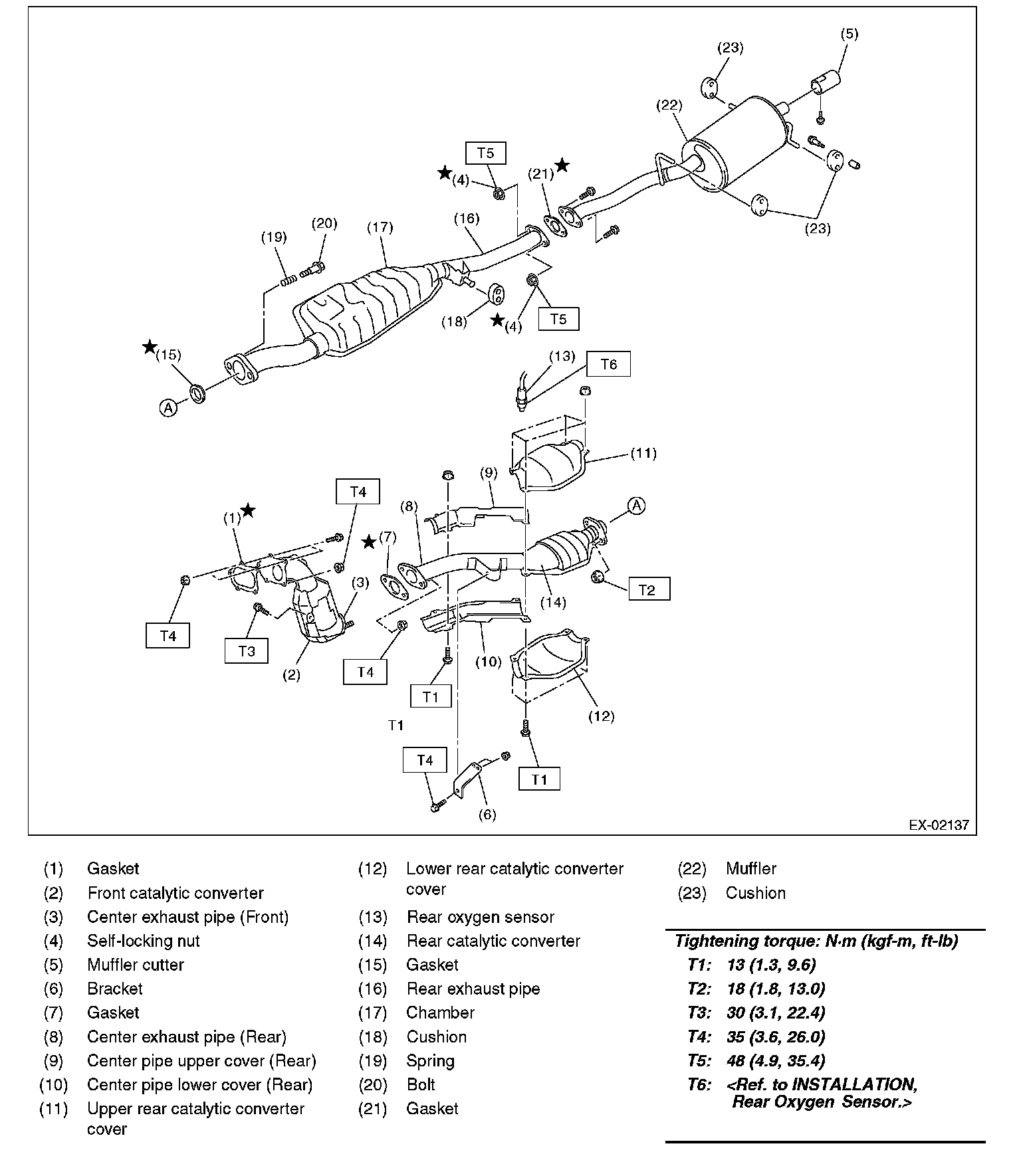

CENTER AND REAR EXHAUST PIPE, AND MUFFLER:

REMOVAL
1. Separate the muffler from rear exhaust pipe.

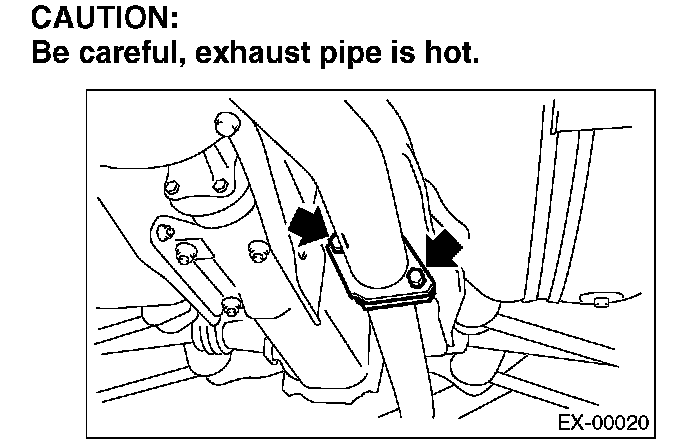

CAUTION: Be careful, exhaust pipe is hot.

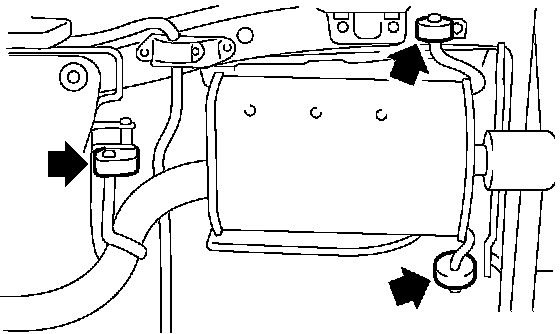

2. Remove the rubber cushion, and detach the muffler.

CAUTION: Be careful not to drop the muffler during removal.

NOTE: To facilitate removal, apply a coat of spray type lubricant to the mating area of rubber cushion in advance.





INSTALLATION
Install in the reverse order of removal.

NOTE: Replace with a new gasket and nut.

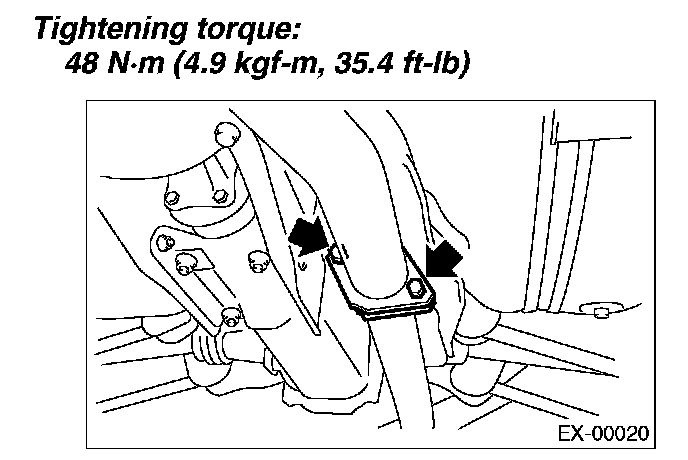

Tightening torque: 48 Nm (4.9 kgf-m, 35.4 ft. lbs.)





INSPECTION
1. Check the connections and welds for exhaust leaks.
2. Make sure there are no holes or rusting.
3. Check the cushion rubber for wear or crack.
