Evaporative Shut Valve: Service and Repair

SHUT VALVE

REMOVAL

WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel.

1. Remove the fuel filler pipe.

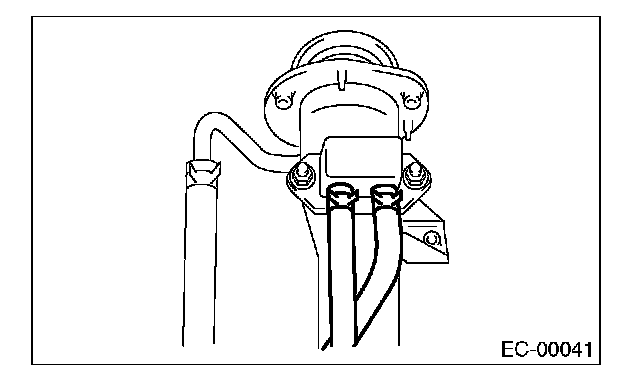

2. Disconnect the evaporation hose from shut valve.

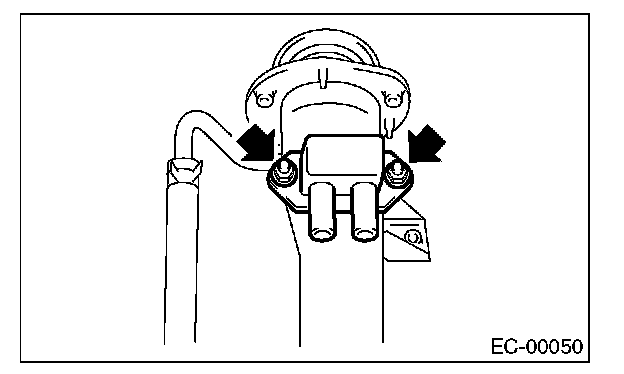

3. Remove the shut valve from the fuel filler pipe.

INSTALLATION

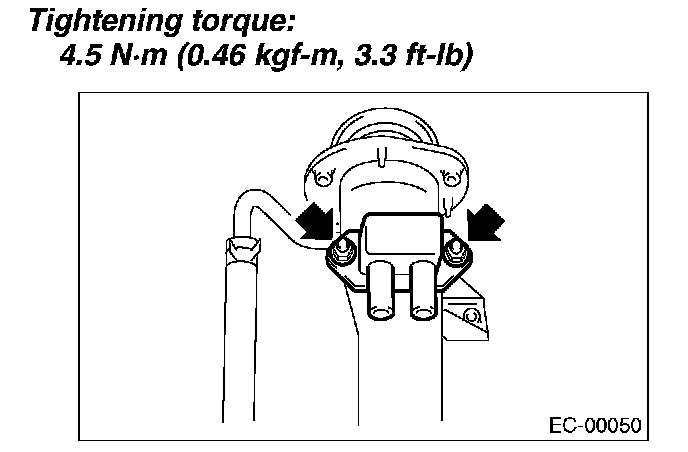

Install in the reverse order of removal.
