Removal and Installation

Wiper Blade

REMOVAL

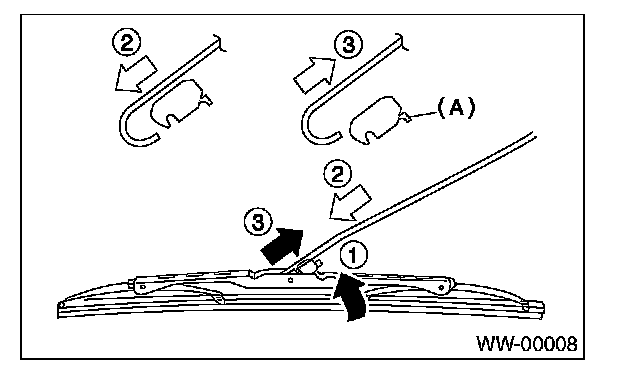

While pushing the locking clip (A) up, pull out the blade to the direction of the arrow and remove it from the wiper arm.

INSTALLATION
1. Install in the reverse order of removal.
2. Confirm that the clip is locked securely.
