Locations
>>
Connector Locations
>>
R1-R188 & B97-B270 & R50-R139 & R47-R69 & AB7-AB61
R1-R188 & B97-B270 & R50-R139 & R47-R69 & AB7-AB61
Rear Wiring Harness

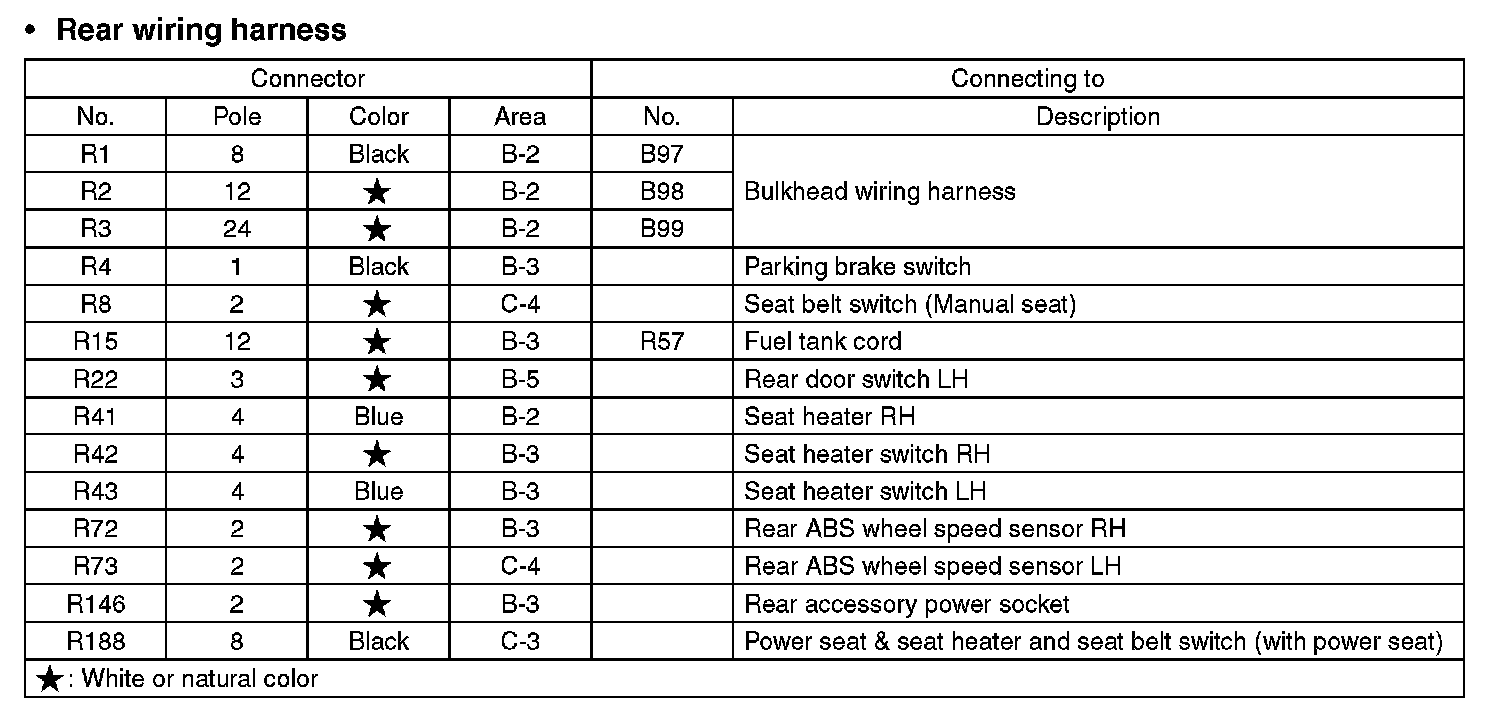

R1-R188:

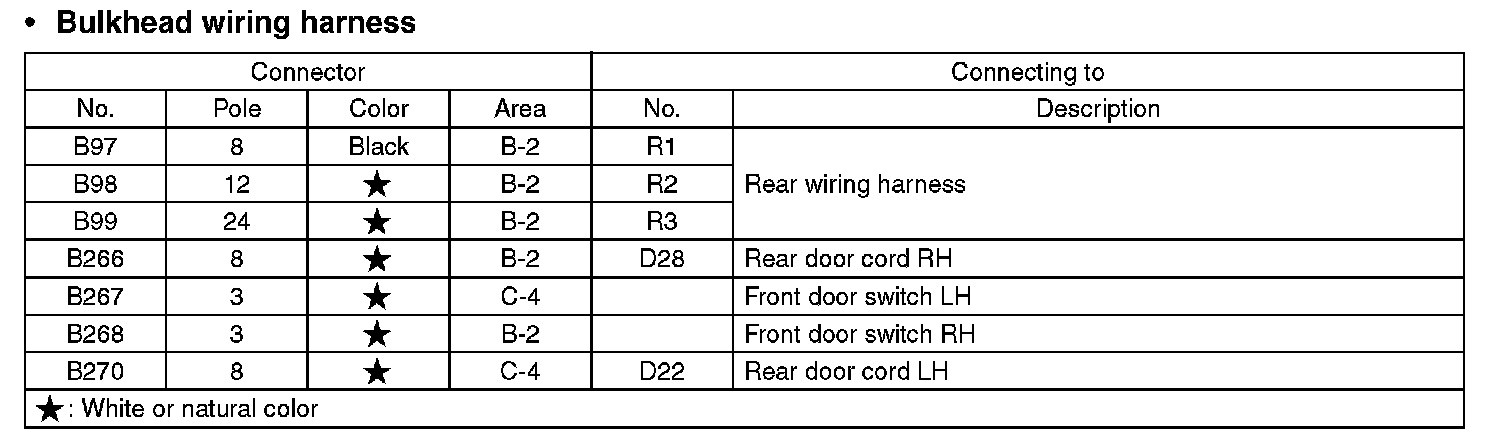

B97-B270:

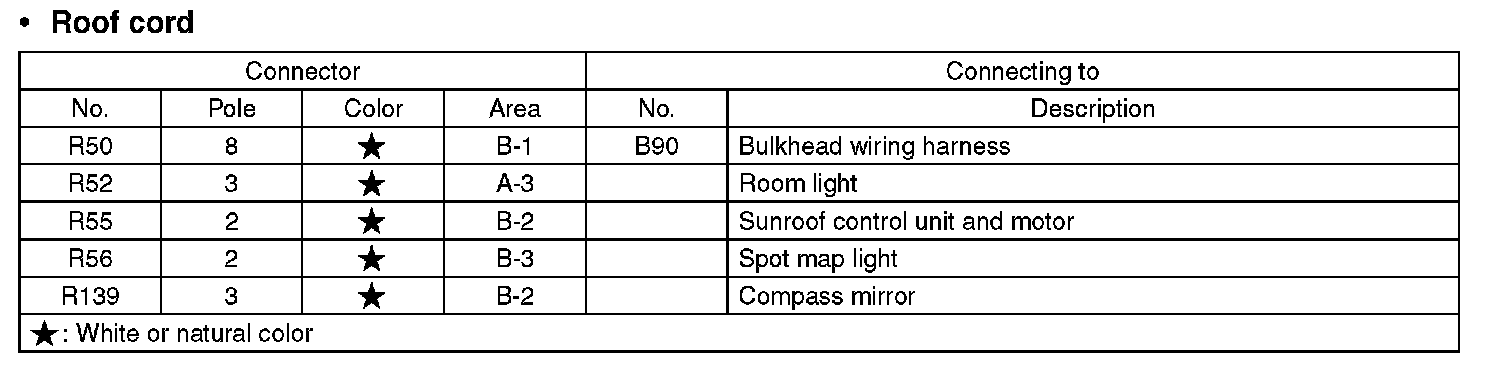

R50-R139:

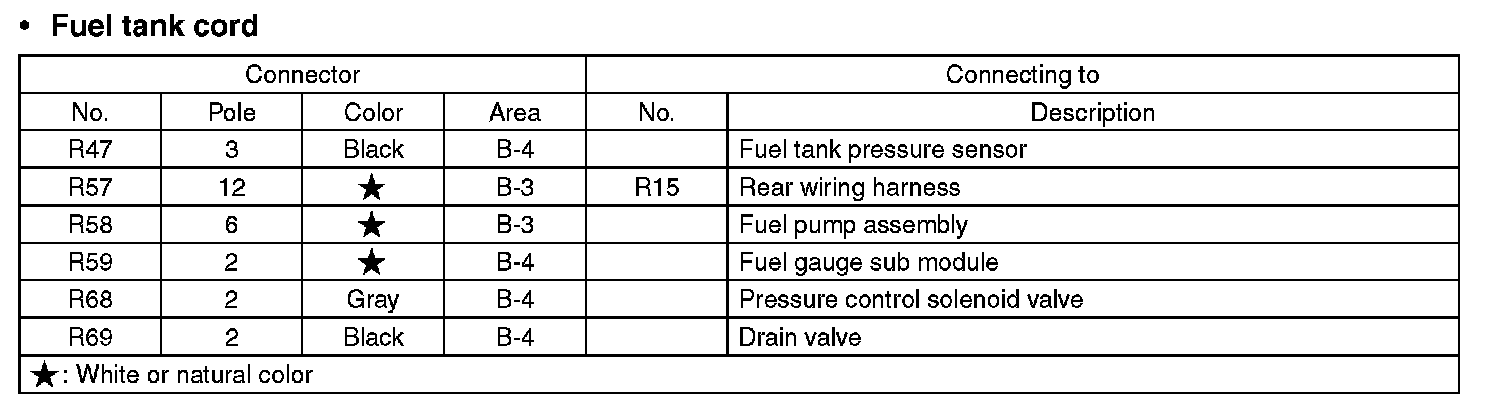

R47-R69:

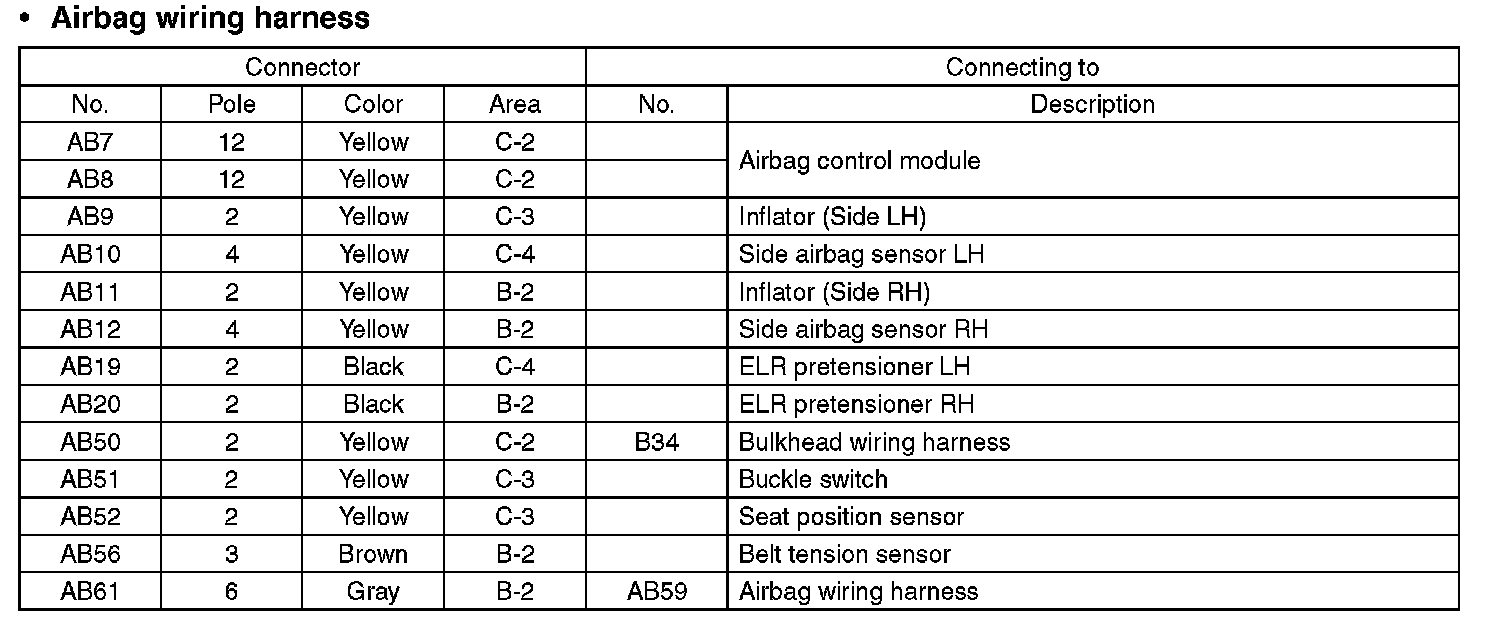

AB7-AB61:

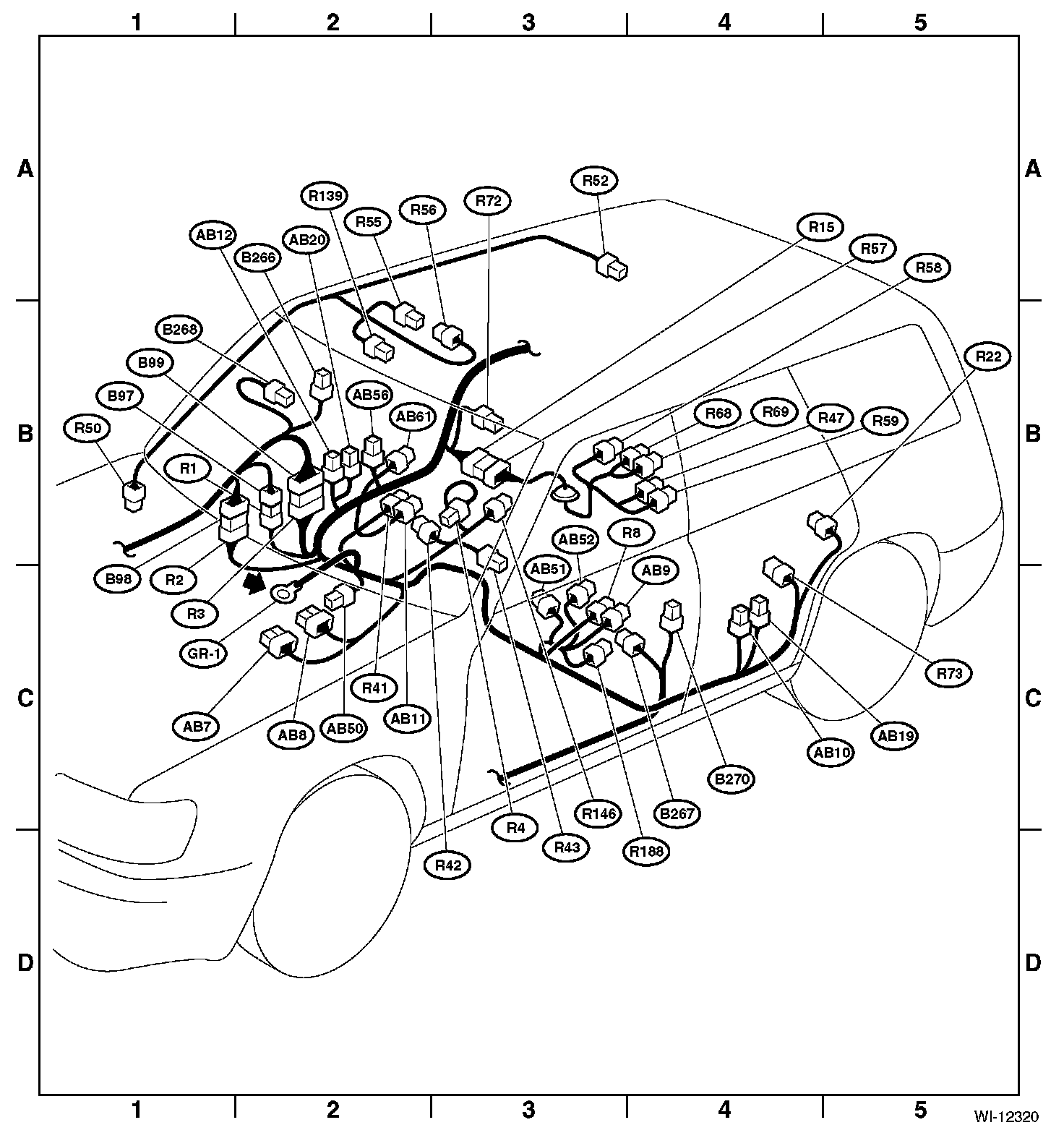

Area View:
