Operation CHARM
: Car repair manuals for everyone.
Home
>>
Subaru
>>
2007
>>
Forester F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
E3-E75 & T1-T2
E3-E75 & T1-T2
Engine Wiring Harness and Transmission Cord

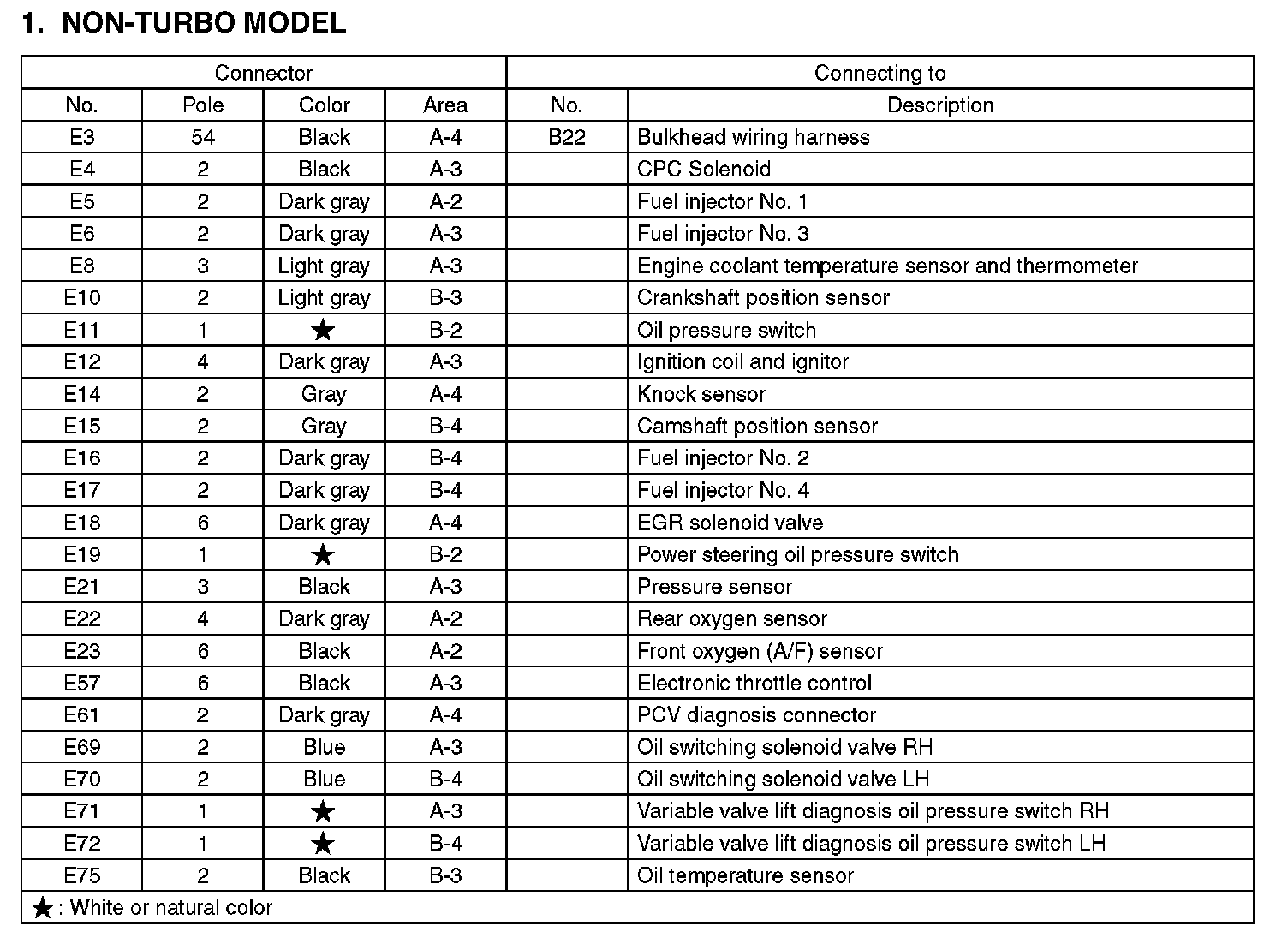

E3-E75:

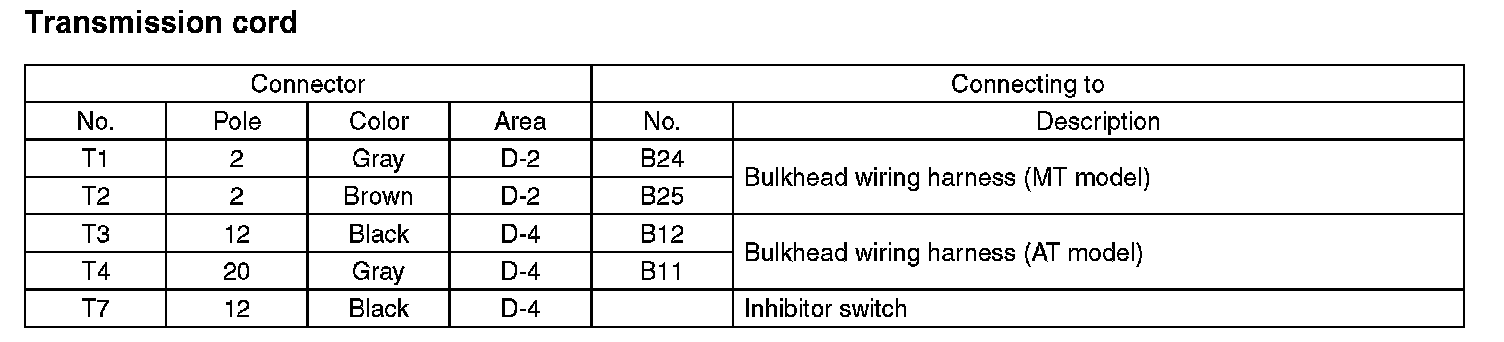

T1-T7:

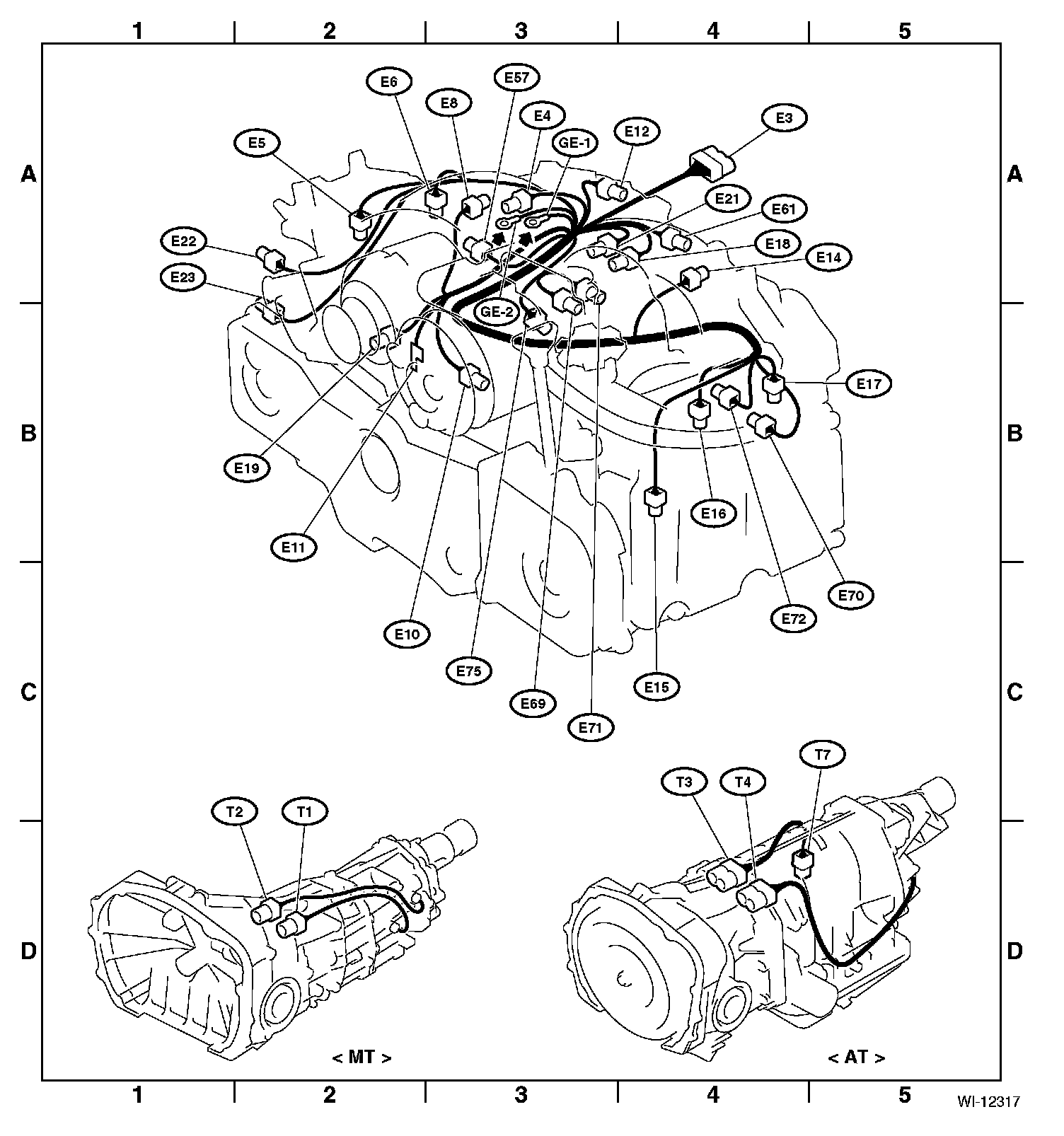

Area View:
