Marker Lamp Bulb: Service and Repair

Front Side Marker Light Bulb

REMOVAL
1. Disconnect the ground cable from battery.

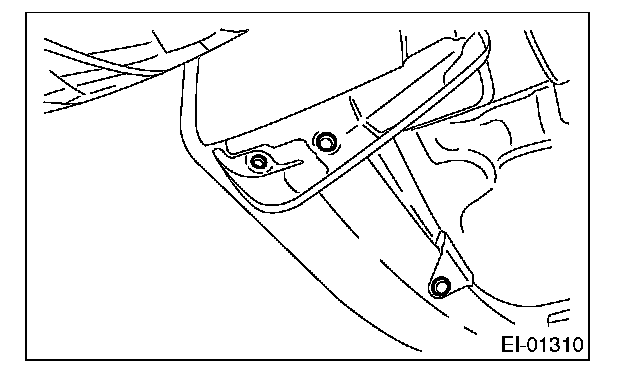

2. Remove the three clips holding the mud guard.
3. Turn over the mud guard, turn the socket and then remove the bulb.

INSTALLATION
Install in the reverse order of removal.
