Coolant Reservoir: Service and Repair

RESERVOIR TANK

REMOVAL
1. Remove the collector cover. (DOHC Turbo only)
2. Disconnect the over flow hose.

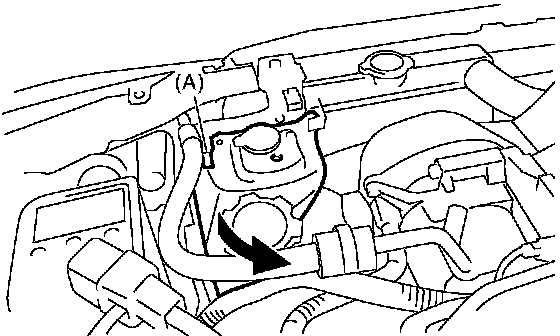

3. Push in the hook (A), and pull the reserve tank in the direction of the arrow to remove.





INSTALLATION
Install in the reverse order of removal.

INSPECTION
Make sure the engine coolant level is between "FULL" and "LOW".
