Rear Shelf: Service and Repair

REAR SHELF TRIM

REMOVAL

1. Disconnect the ground cable from battery.
2. Remove the high-mounted stop light.






3. Remove the rear quarter upper trim.

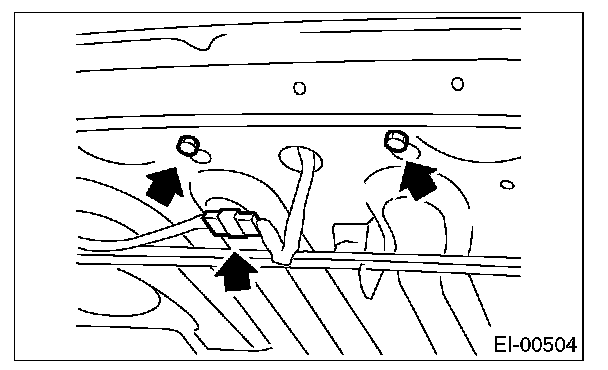

4. Remove the seat belt center anchor lower bolt.

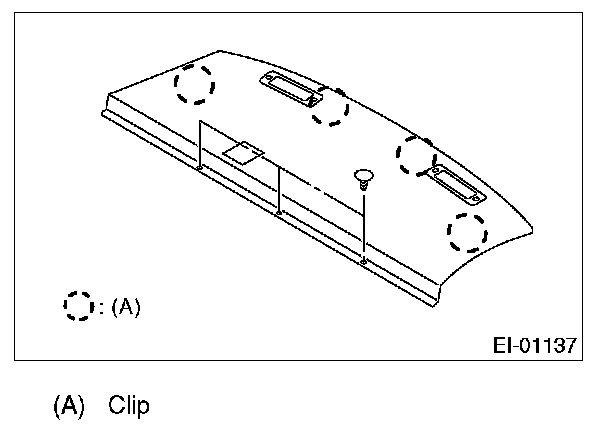

5. Remove the rear shelf trim.

INSTALLATION

Install in the reverse order of removal.
