Brake Light Bulb: Service and Repair

Tail/Stop Light Bulb

REMOVAL
1. Remove the rear combination light assembly.

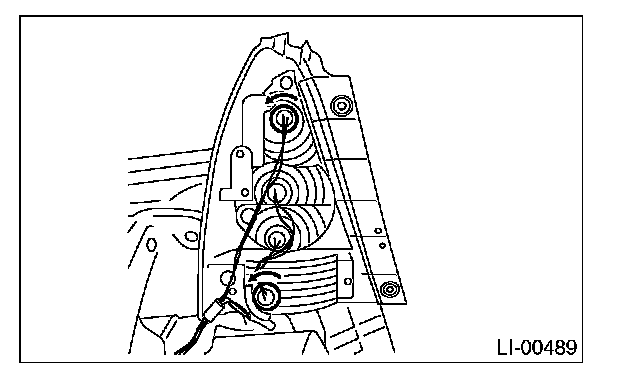

2. Turn the socket and remove the bulb.






INSTALLATION
Install in the reverse order of removal.
