Center Mounted Brake Lamp: Service and Repair

High-mounted Stop Light

REMOVAL

1. Disconnect the ground cable from battery.

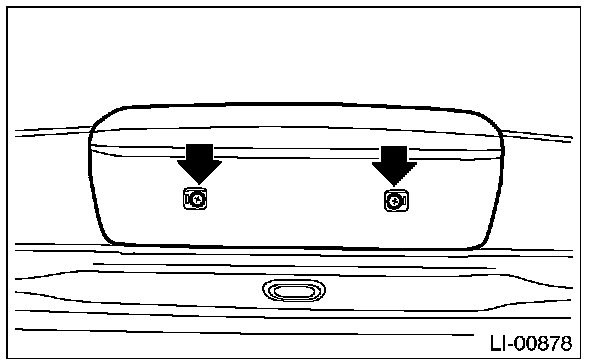

2. Remove the caps and screws, then detach the high-mounted stop light cover.






3. Remove the high-mounted stop light.

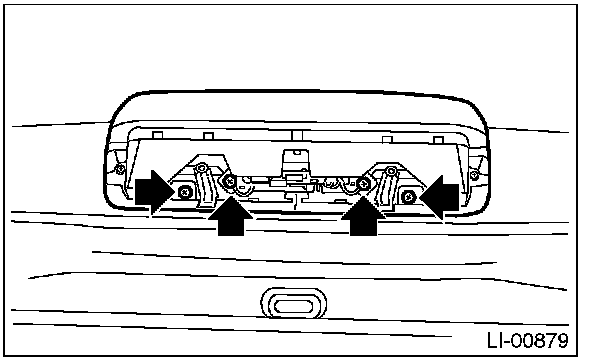

1. Remove the four screws.
2. Disconnect the harness connector.

INSTALLATION

Install in the reverse order of removal.

Tightening torque: 1.5 N.m (0.15 kgf.m, 1.1 ft.lb)
