License Plate Bulb: Service and Repair

License Plate Light

REMOVAL

1. Disconnect the ground cable from battery.

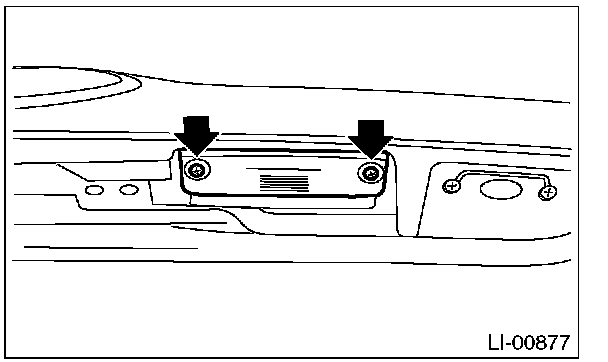

2. Remove the screw and remove the license light cover.

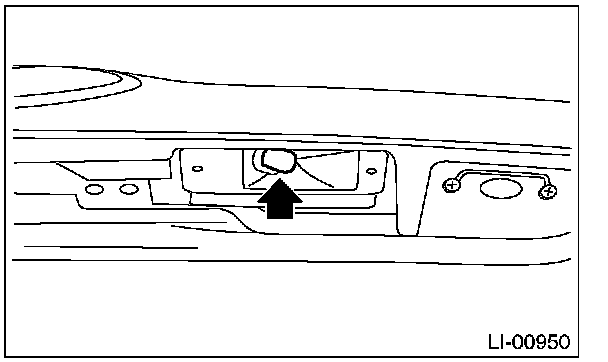

3. Remove the bulb.







4. Remove the rear gate trim.
5. Remove the license plate light assembly harness.

INSTALLATION

Install in the reverse order of removal.

Tightening torque: 1.5 N.m (0.15 kgf.m, 1.1 ft.lb)
