Procedures

Aluminum Wheel

INSPECTION
1) Deformation or damage to the rim may cause air leakage. Check the rim flange for deformation, cracks or damage, and repair or replace as necessary.
2) Jack-up the vehicle until wheels clear the floor.

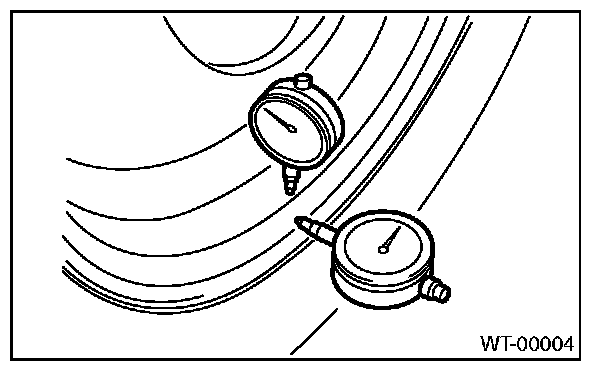

3) Slowly rotate the wheel to check rim "runout" using a dial gauge.

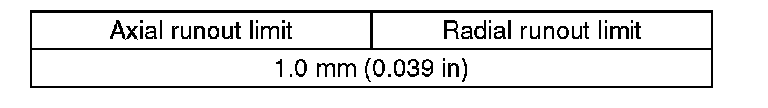

Aluminum Wheel

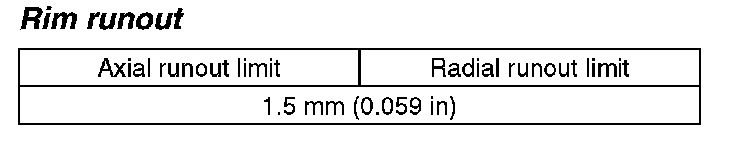

Steel Wheel





4) If the rim runout exceeds specifications, replace the wheel.
