Impreza WRX STI F4-2.5L DOHC Turbo
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
Cylinder Block Assembly
>>

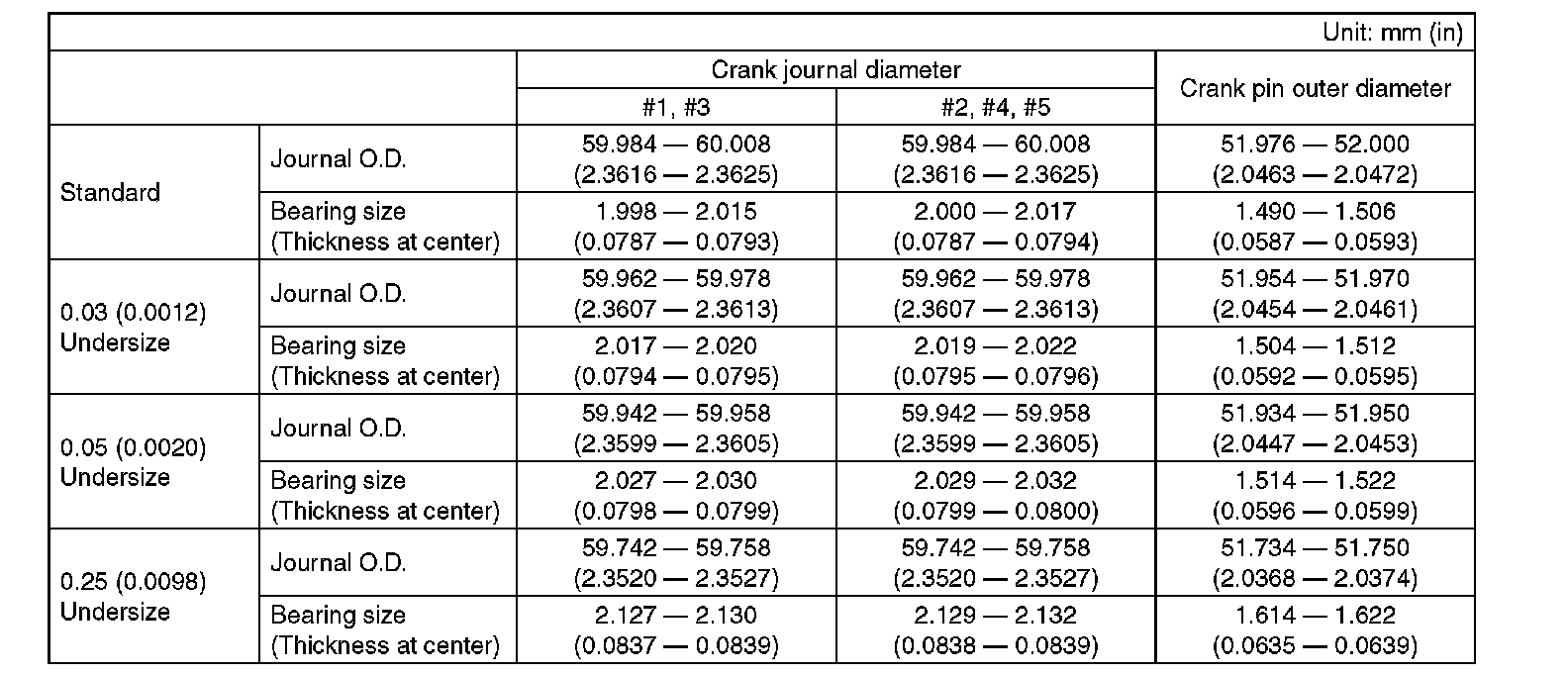

Crankshaft Main Bearing
Crankshaft Main Bearing

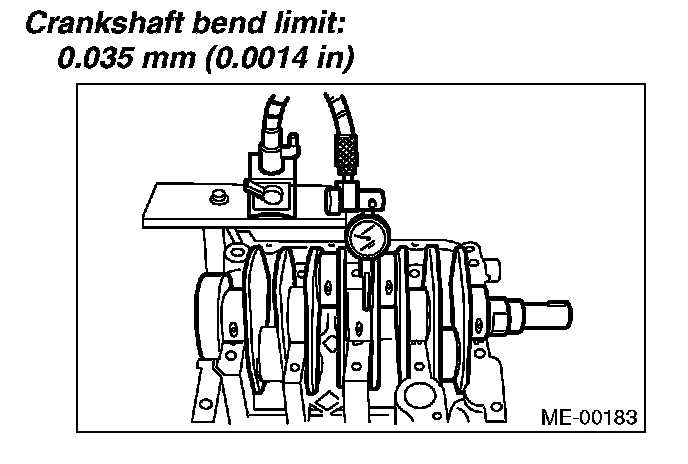

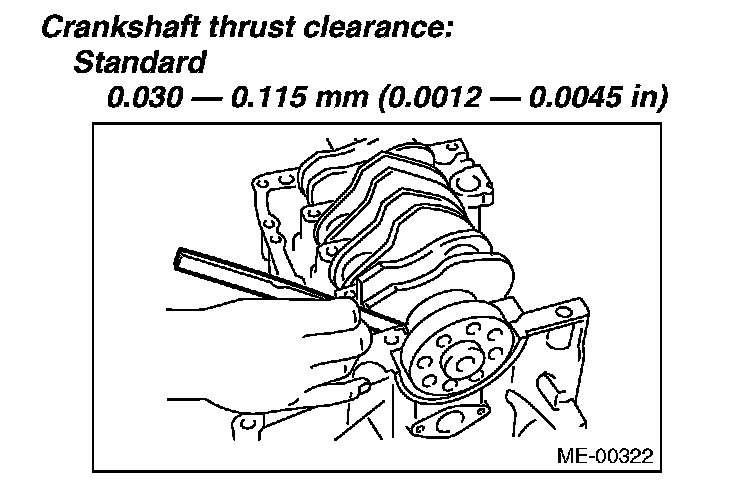

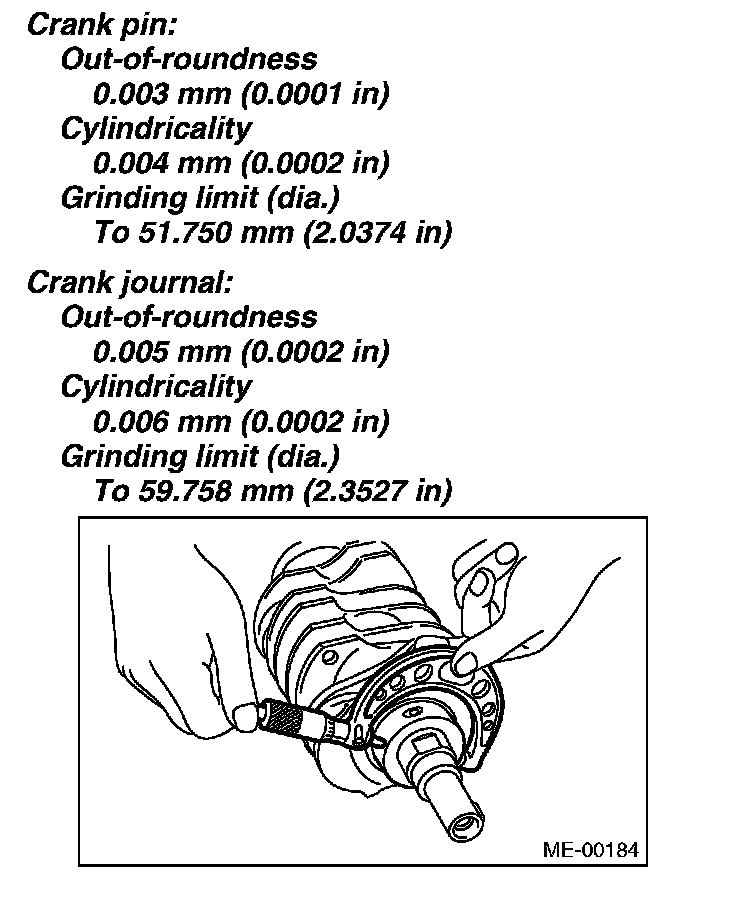

Crankshaft
and Bearings
Crankshaft Main Bearing
Cap Bolts
Please refer to Cylinder Block Removal and Replacement for bolt tightening specifications and procedures.
