Canister Purge Solenoid: Service and Repair

Purge Control Solenoid Valve

REMOVAL

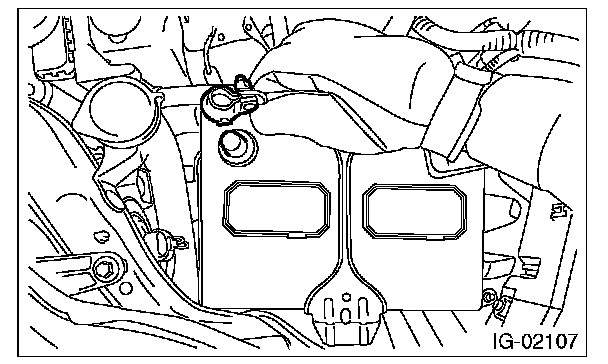

1. Disconnect the ground cable from battery.






2. Remove the air intake boot assembly.

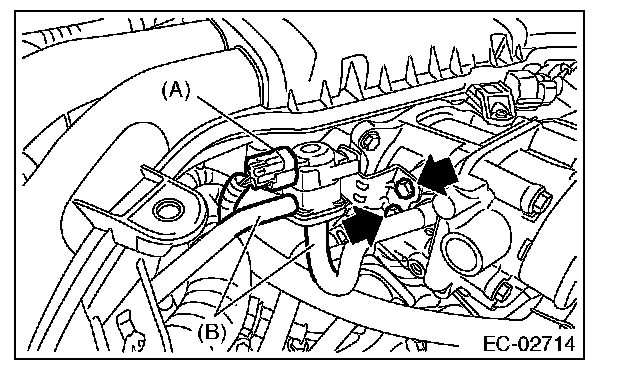

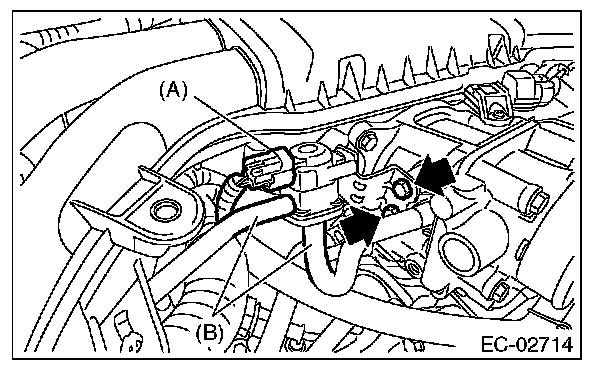

3. Disconnect the purge control solenoid valve connector (A) and evaporation hose (B), and then remove the purge control solenoid valve.

- Other than U5 model

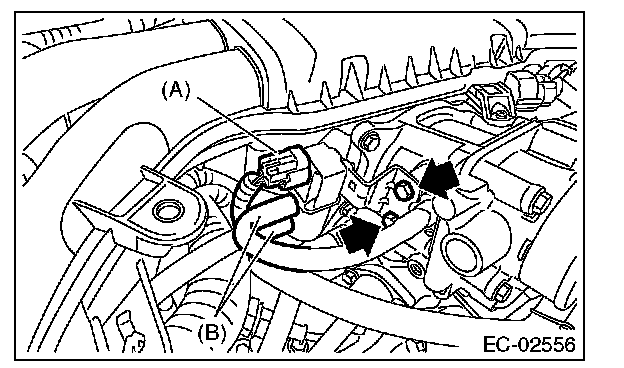

- U5 model






INSTALLATION

Install in the reverse order of removal.

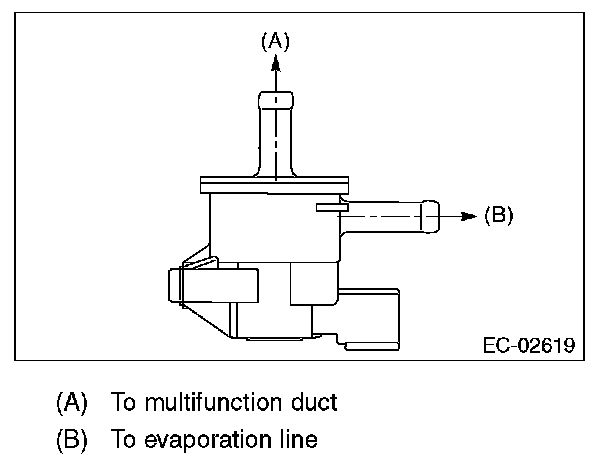

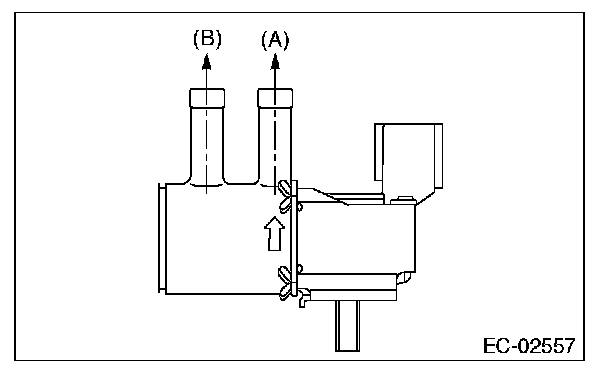

NOTE: Connect the evaporation hose as shown in the figure.

- Other than U5 model






- U5 model






Tightening torque: 6.4 N.m (0.7 kgf.m, 4.7 ft.lb)

- Other than U5 model






- U5 model
