Crankshaft Main Bearing: Specifications
Cylinder Block Connecting BoltsPlease refer to Cylinder Block Removal and Installation for tightening specifications and sequence. Service and Repair
Main Journal Size Mark
Bearing Size (Thickness at Center)
#1, #3
Standard 1.998 - 2.015 mm (0.0787 - 0.0793 in)
0.03 mm (0.0012 in) US 2.017 - 2.020 mm (0.0794 - 0.0795 in)
0.05 mm (0.0020 in) US 2.027 - 2.030 mm (0.0798 - 0.0799 in)
0.25 mm (0.0098 in) US 2.127 - 2.130 mm (0.0837 - 0.0839 in)
#2, #4, #5
Standard 2.000 - 2.017 mm (0.0787 - 0.0794 in)
0.03 mm (0.0012 in) US 2.019 - 2.022 mm (0.0795 - 0.0796 in)
0.05 mm (0.0020 in) US 2.029 - 2.032 mm (0.0799 - 0.0800 in)
0.25 mm (0.0098 in) US 2.129 - 2.132 mm (0.0838 - 0.0839 in)
Thrust Clearance Standard 0.030 - 0.115 mm (0.0012 - 0.0045 in)
Oil Clearance Standard 0.010 - 0.030 mm (0.0004 - 0.0012 in)

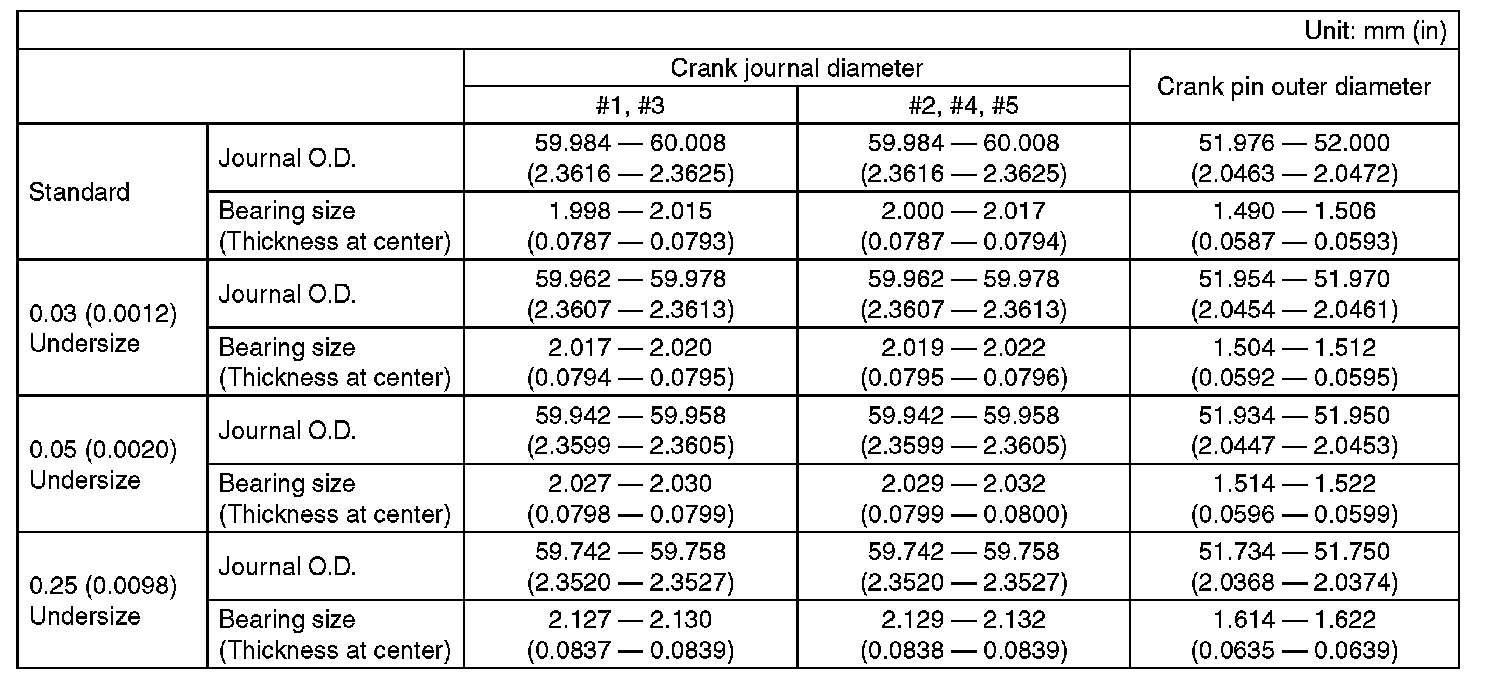

Crankshaft Dimensions
