Installation

INSTALLATION

1) Install the oil pump to bracket.

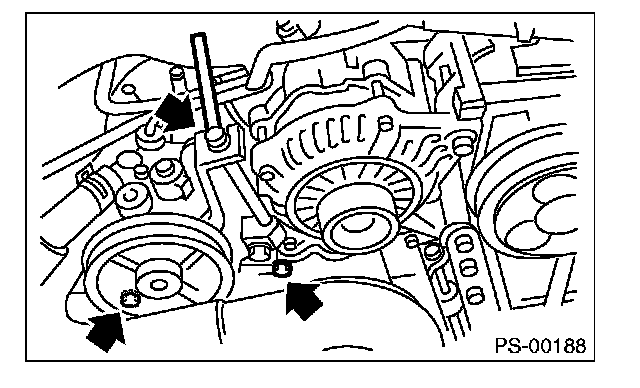

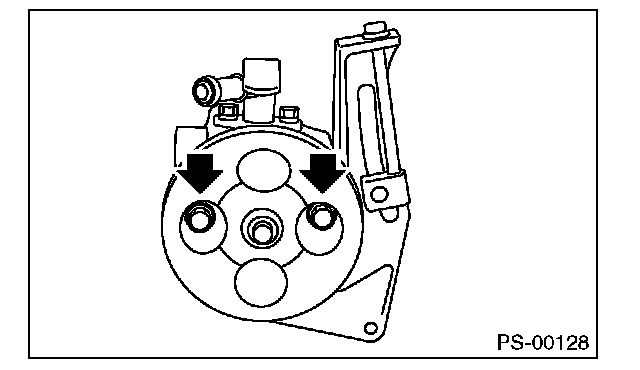

2) Tighten the bolts which hold the oil pump to the bracket.

Tightening torque:
16 Nm (1.63 kgf-m, 11.8 ft-lb)





Tightening torque:
36 Nm (3.67 kgf-m, 26.6 ft-lb) (non-turbo model)
48 Nm (4.89 kgf-m, 35.4 ft-lb) (turbo model)





3) Attach the installation bolts of the power steering pump bracket.

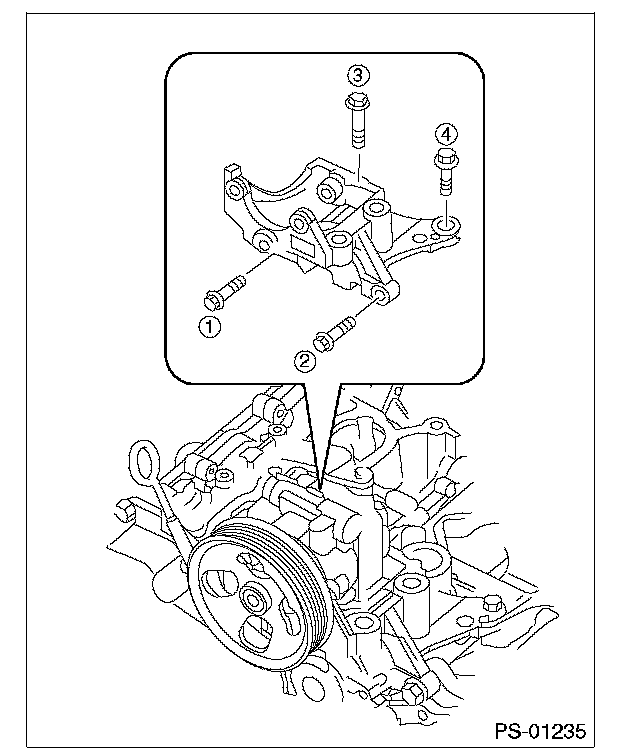

4) Tighten the bolts to the specified torque in the order as shown in the figure.

Tightening torque:
Refer to "COMPONENT" of "General Description". Diagrams

^ Non-turbo model





^ Turbo model

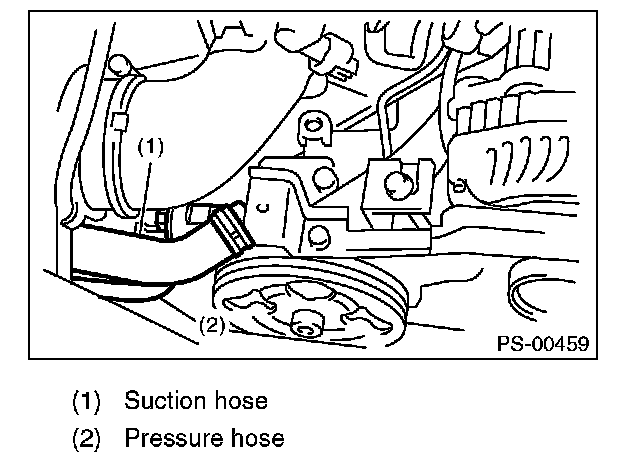

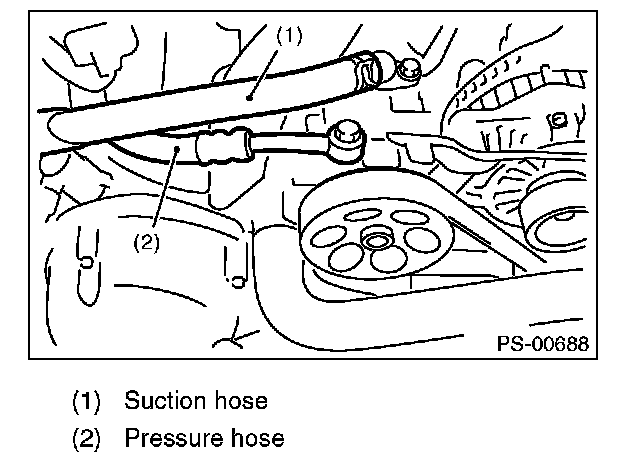

5) Connect the pressure hose and suction hose.

Tightening torque:
Eye bolt
40 Nm (4.08 kgf-m, 29.5 ft-lb)

CAUTION:
Be careful when installing; If the hose is twisted it may come into contact with other parts.

^ Non-turbo model





^ Turbo model





6) Connect the power steering pump switch to the connector.
7) After installing the oil pump, fill the oil pump with as much fluid as possible by rotating the pulley by hand.

CAUTION:
Always fill the oil pump with the fluid to prevent abnormal noise and seizure of the oil pump.

8) Install the V-belts (front side belt).
9) Connect the battery ground terminal.
10) Fill with the specified power steering fluid.

CAUTION:
Never start the engine before filling with fluid; otherwise the vane pump may become seized.
