Home
>>
Suzuki Truck
>>
2001
>>
XL-7 Standard 2WD V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
G Connectors
G Connectors

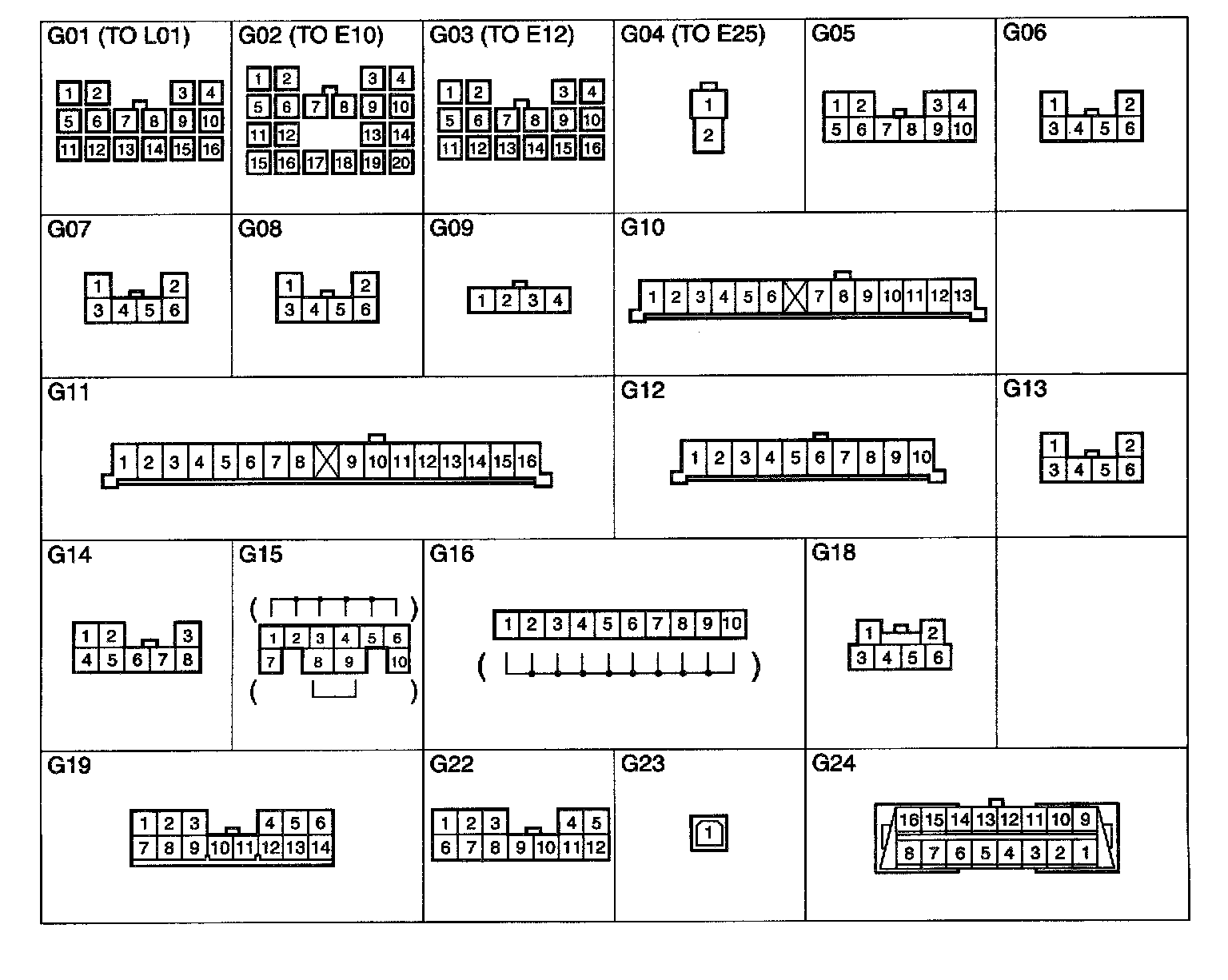

G01 - G24:

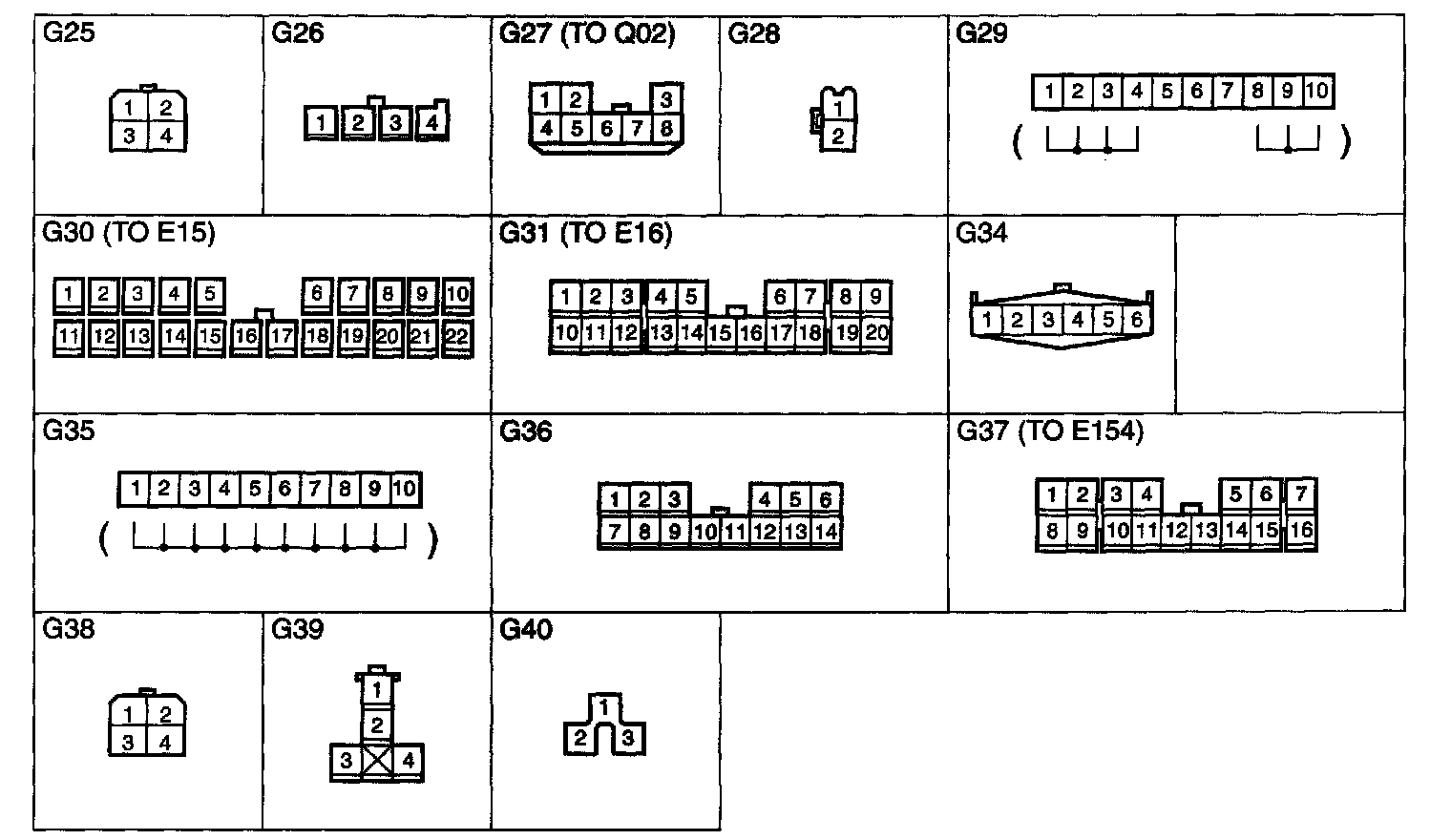

G25 - G40:
