Front

FRONT BRAKE HOSE/PIPE REPLACEMENT W/ RELATED COMPONENTS

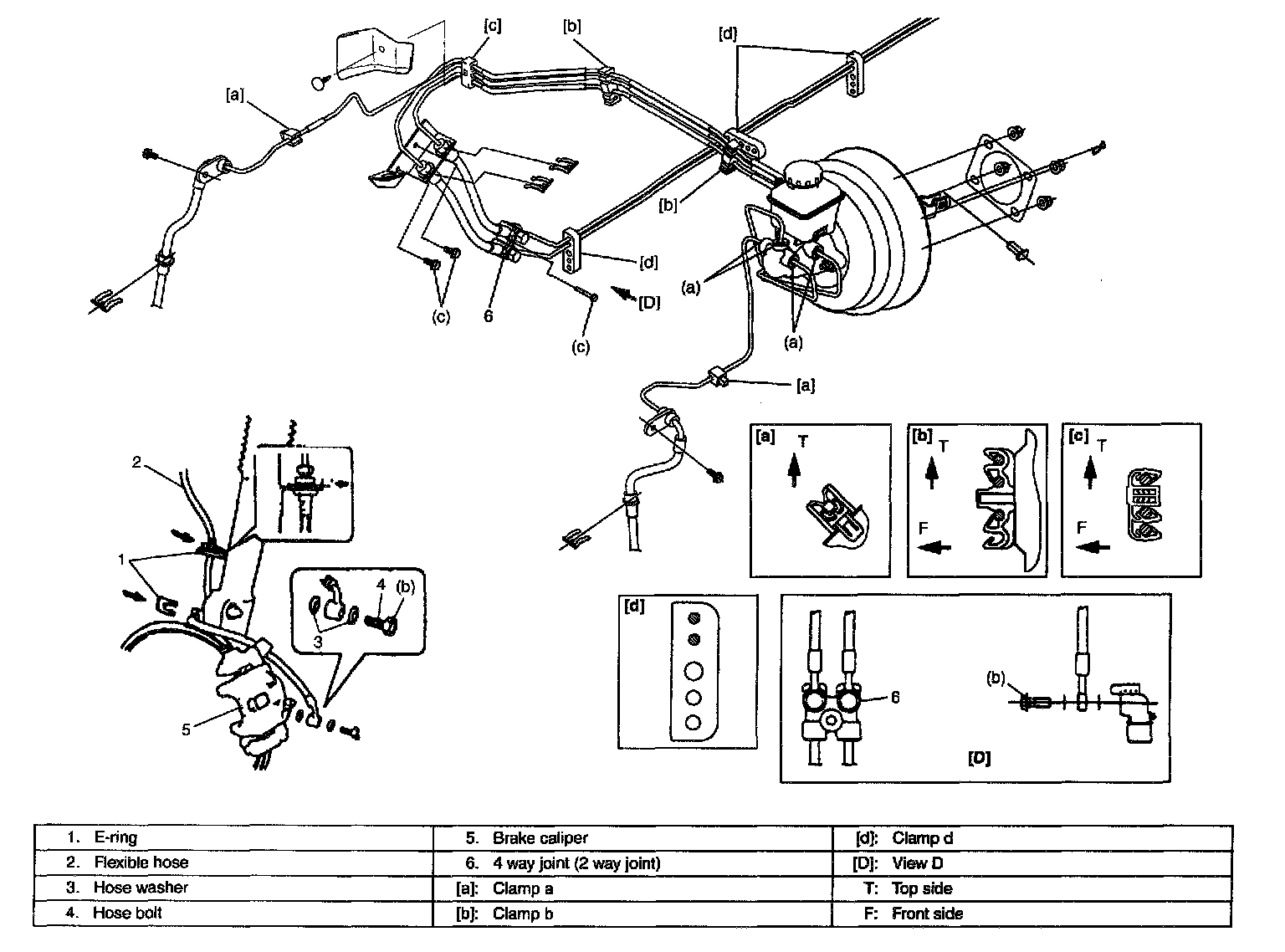

For Vehicle Without ABS

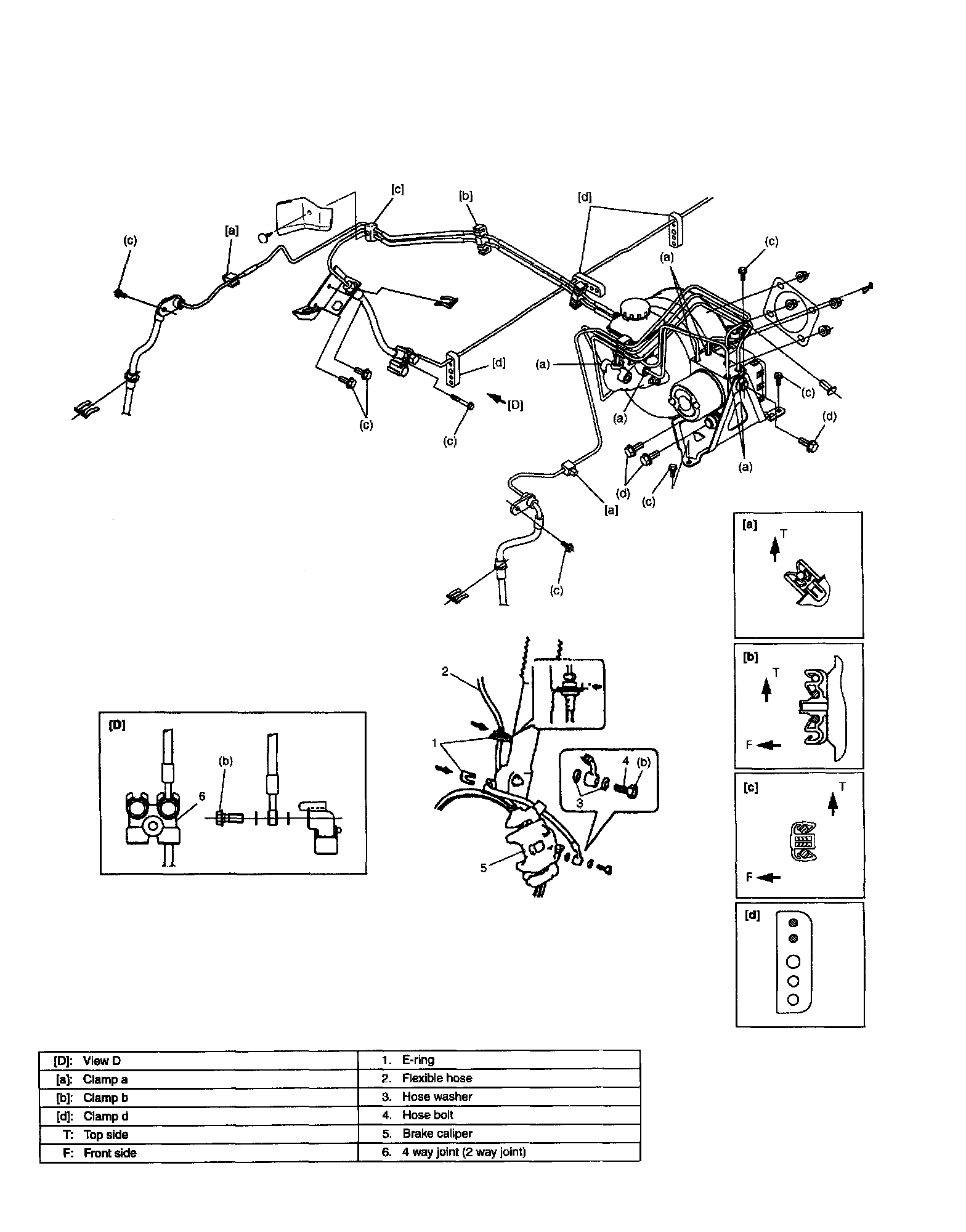

For Vehicle With ABS
