Compressor HVAC: Service and Repair

COMPRESSOR ASSEMBLY

REMOVAL
1. Run engine at idle with A/C ON for 10 minutes.
2. Disconnect negative (-) cable at battery.
3. Recover refrigerant from refrigeration system using recovery and recycling equipment.

NOTE: The amount of compressor oil at removed must be measured and the same amount must be poured when installing the compressor.

4. Remove P/S pump referring to step 4) to 7) of "REMOVAL" under "P/S PUMP".

NOTE: It is not necessary to drain P/S fluid

5. Disconnect magnet clutch connector.

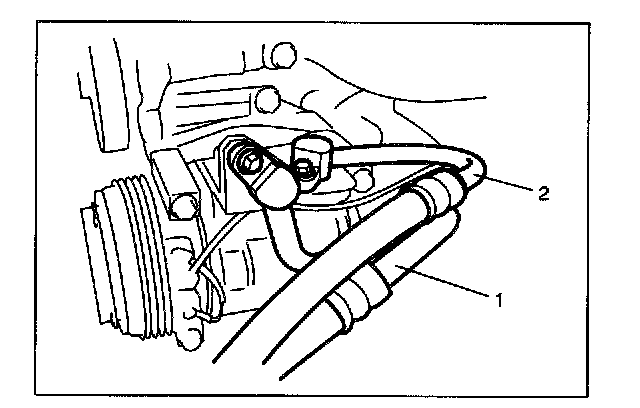

6. Disconnect suction hose (1) and discharge hose (2) from compressor.

NOTE: Cap open fitting immediately to keep moisture out of system.




7. Remove compressor (1) from its mount (2).

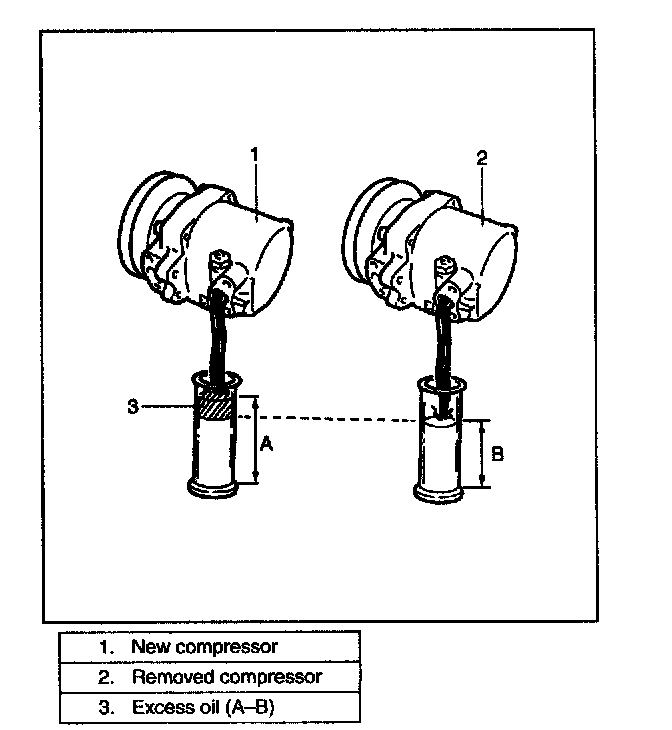

NOTE: If compressor assembly is replaced. Drain oil from compressor, and measure its amount.

INSTALLATION

CAUTION: Be sure to use HFC-134a (R-134a) compressor oil.

Reverse removal procedure to install compressor assembly noting the following instructions.




- If compressor was replaced, pour new compressor oil with the same amount as that drained from compressor.
Refer to "REPLENISHING COMPRESSOR OIL".
- Install P/S pump referring to "P/S PUMP".
- Evacuate and charge system. Refer to "EVACUATING" and "CHARGING".
