Condenser Fan: Testing and Inspection

A/C CONDENSER FAN ASSEMBLY




- Remove condenser assembly (Refer to "A/C CONDENSER ASSEMBLY").

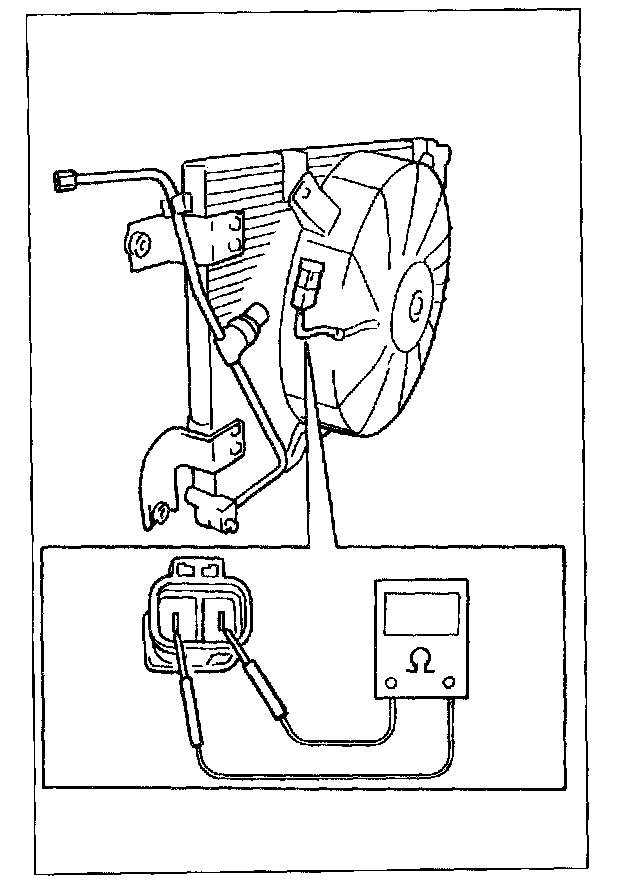

- Check continuity between terminal to terminal as shown. If check results are continuity, proceed to next operation check.
If not, replace.

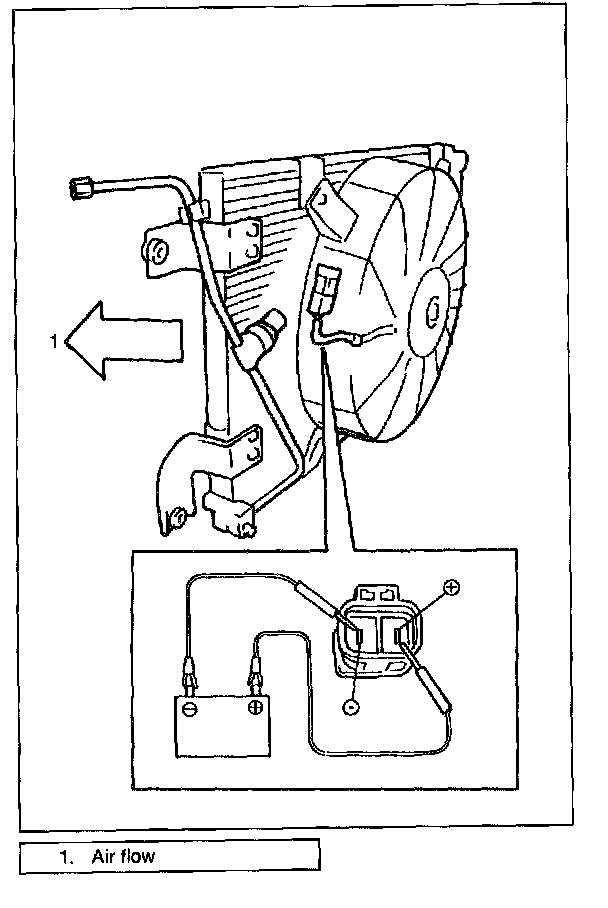

- Connect battery to condenser fan motor as shown, then check that the condenser fan motor operates smoothly.

Reference current for A/C condenser fan : 8 - 12 A at 12 V
