Rear A/C Temperature Controller

REAR A/C EVAPORATOR TEMPERATURE CONTROLLER




REMOVAL
1. Remove rear A/C unit referring to "REAR A/C UNIT".

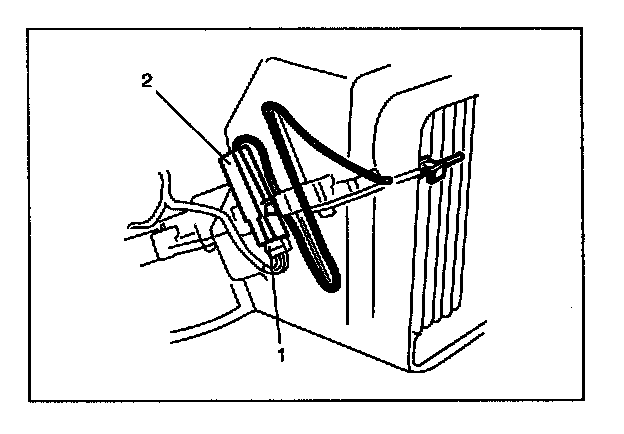

2. Disconnect rear A/C evaporator temperature controller connector (1).
3. Remove rear A/C evaporator temperature controller (2) from rear A/C unit.

INSTALLATION
Reverse removal procedure to install rear A/C evaporator temperature controller noting the following instruction.
- When the rear A/C evaporator thermistor (temperature sensor) removed, it should be reinstalled in original position.
