Home >> Suzuki Truck >> 2001 >> XL-7 Standard 2WD V6-2.7L >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations >> Dual A/C

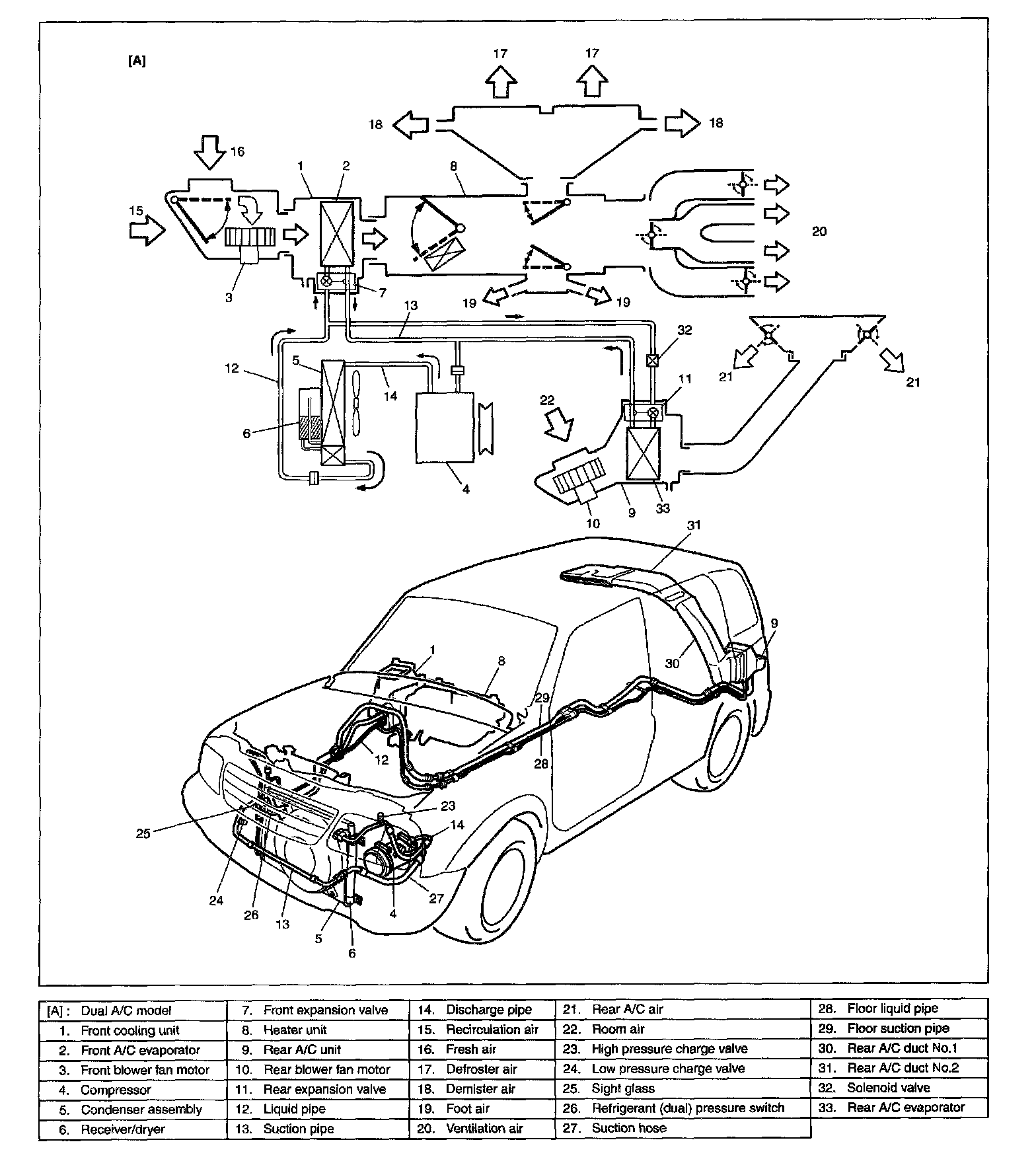

Dual A/C






NOTE: Single A/C model is the same major component and location as SQ625 (H25 engine) model.
