Refrigerant Control Solenoid Valve: Testing and Inspection

SOLENOID VALVE

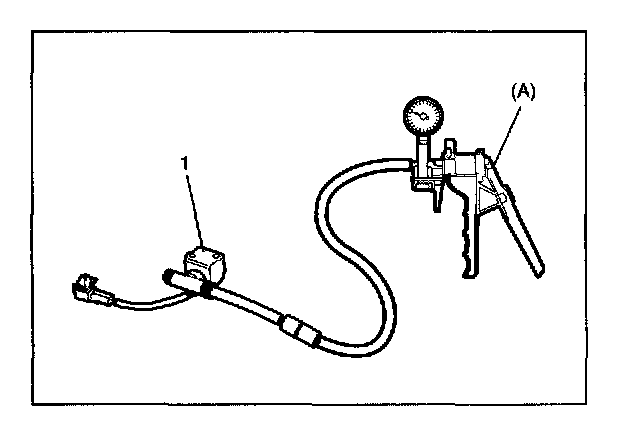

1. Connect special tool to solenoid valve (1).

Special tool
(A) : 09917 - 47910

2. Check that solenoid valve is closed when vacuum is applied to solenoid valve.
If solenoid valve is opened, replace solenoid valve.

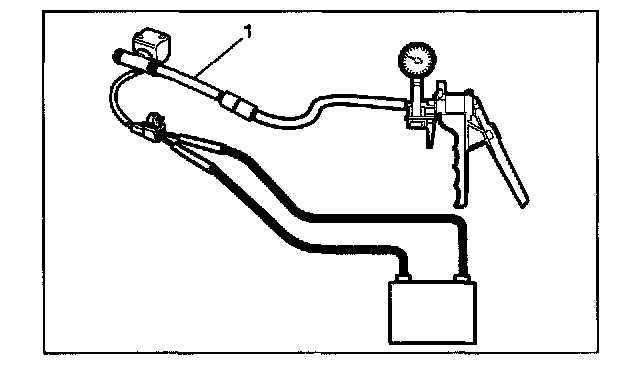

3. Check that solenoid valve (1) is opened when connect battery to solenoid valve as shown is figure.

NOTE: Solenoid valve terminal is no polarity.

INSTALLATION
Reverse removal procedure to install solenoid valve.
