Engine Room

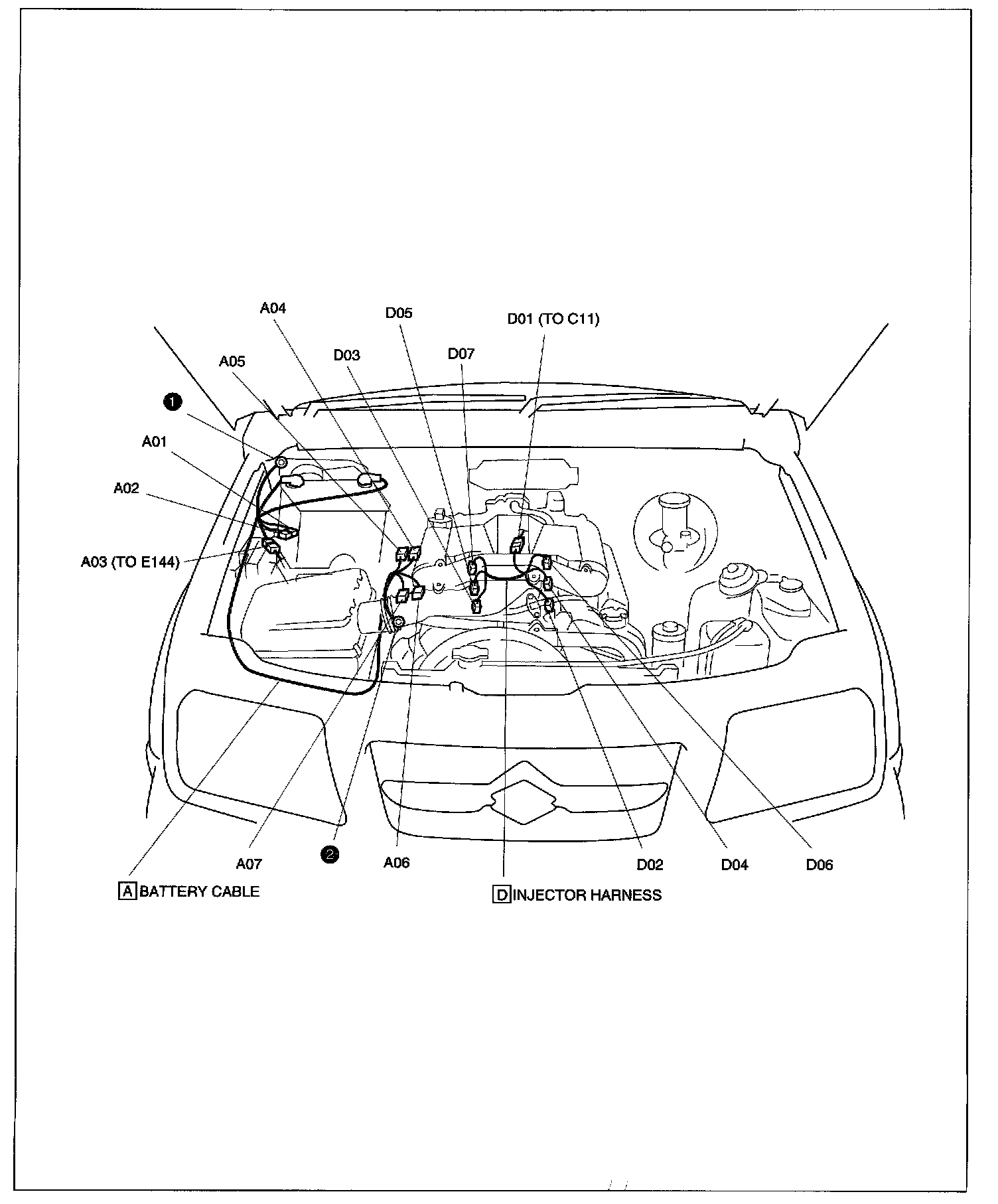

A: Battery Cable, D: Injector Harness:

A: Battery Cable, D: Injector Harness Connectors:

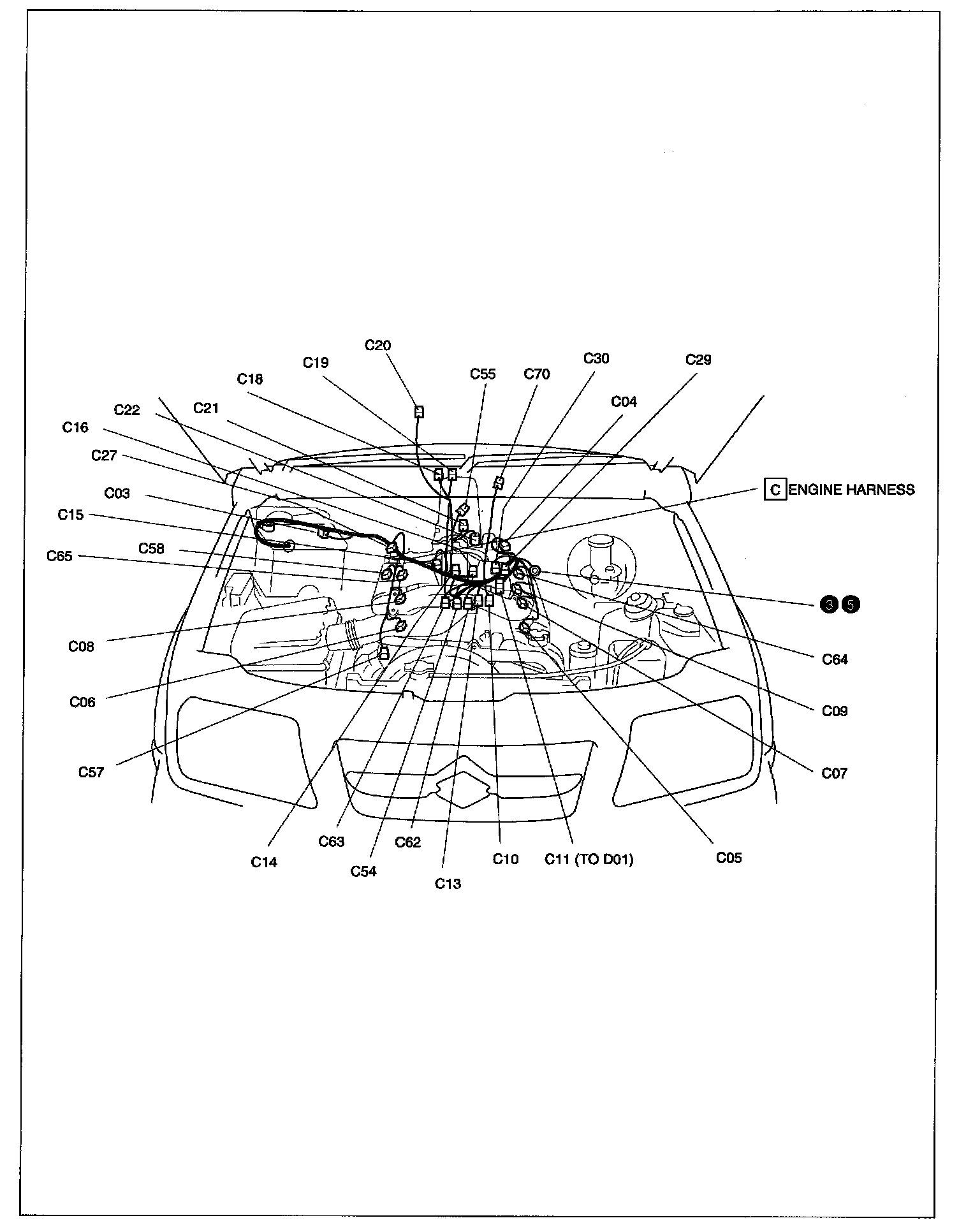

C: Engine Harness:

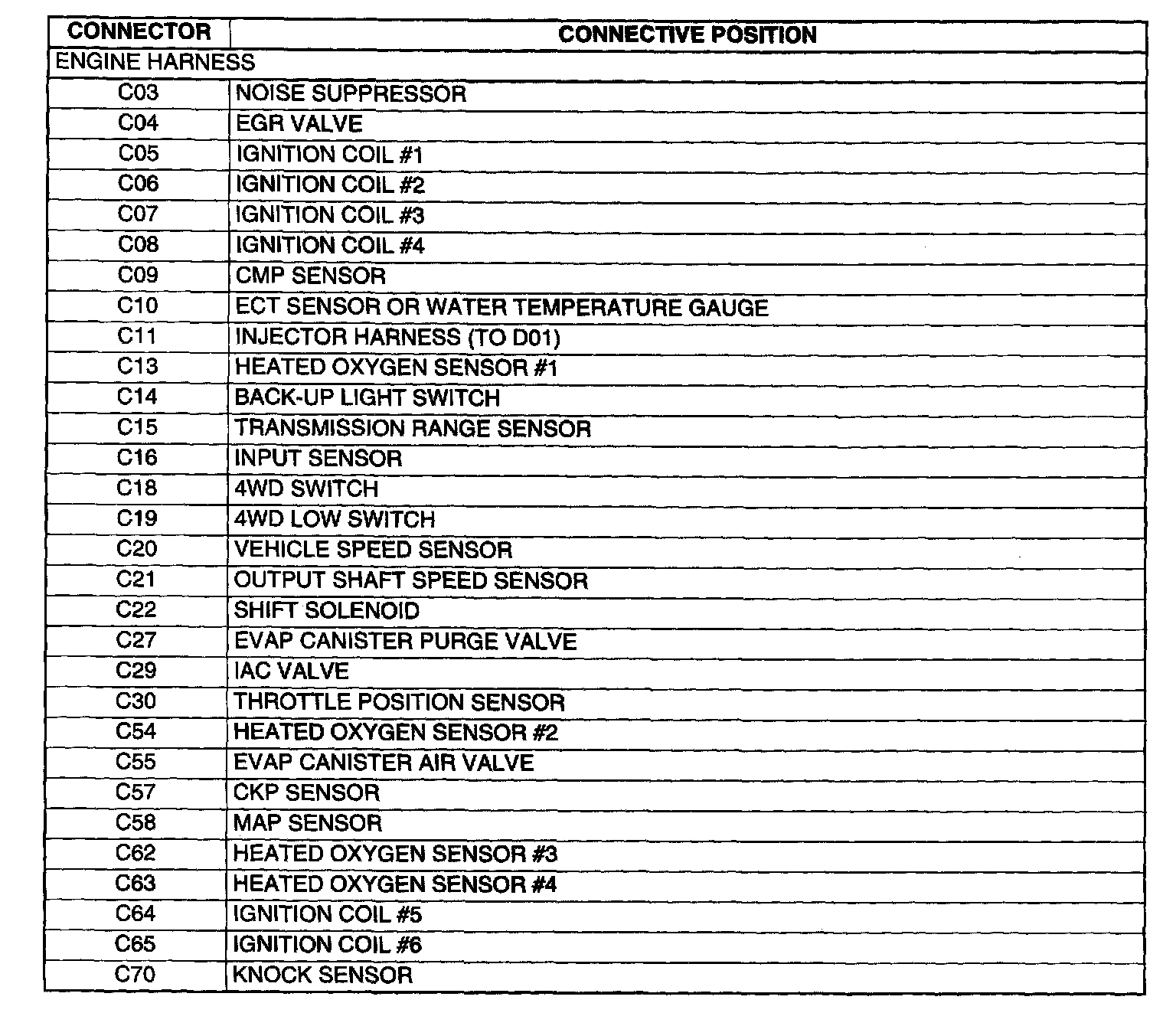

C: Engine Harness Connectors:

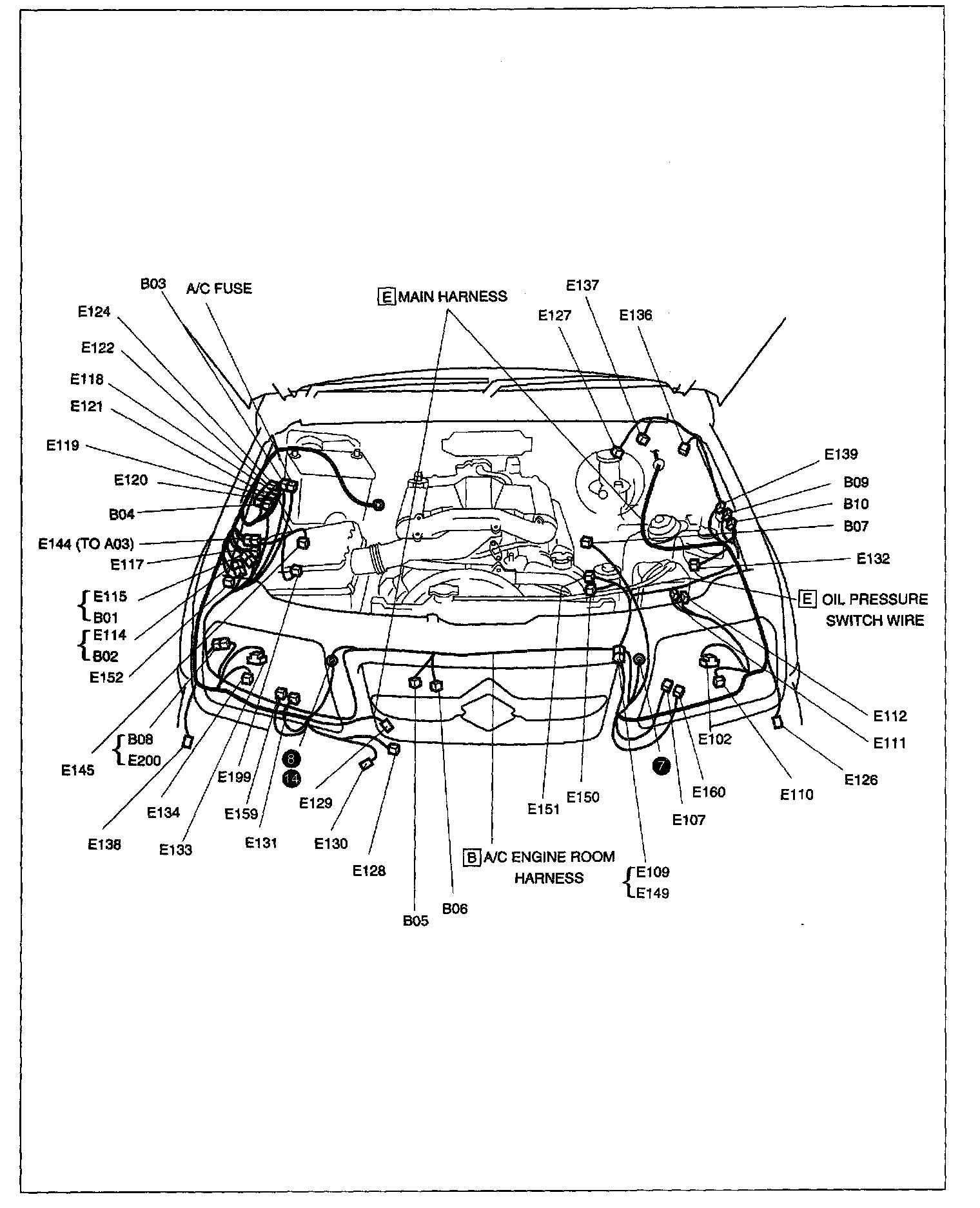

B: A/C Engine Room Harness, E: Main Harness, Oil Pressure Switch Wire:

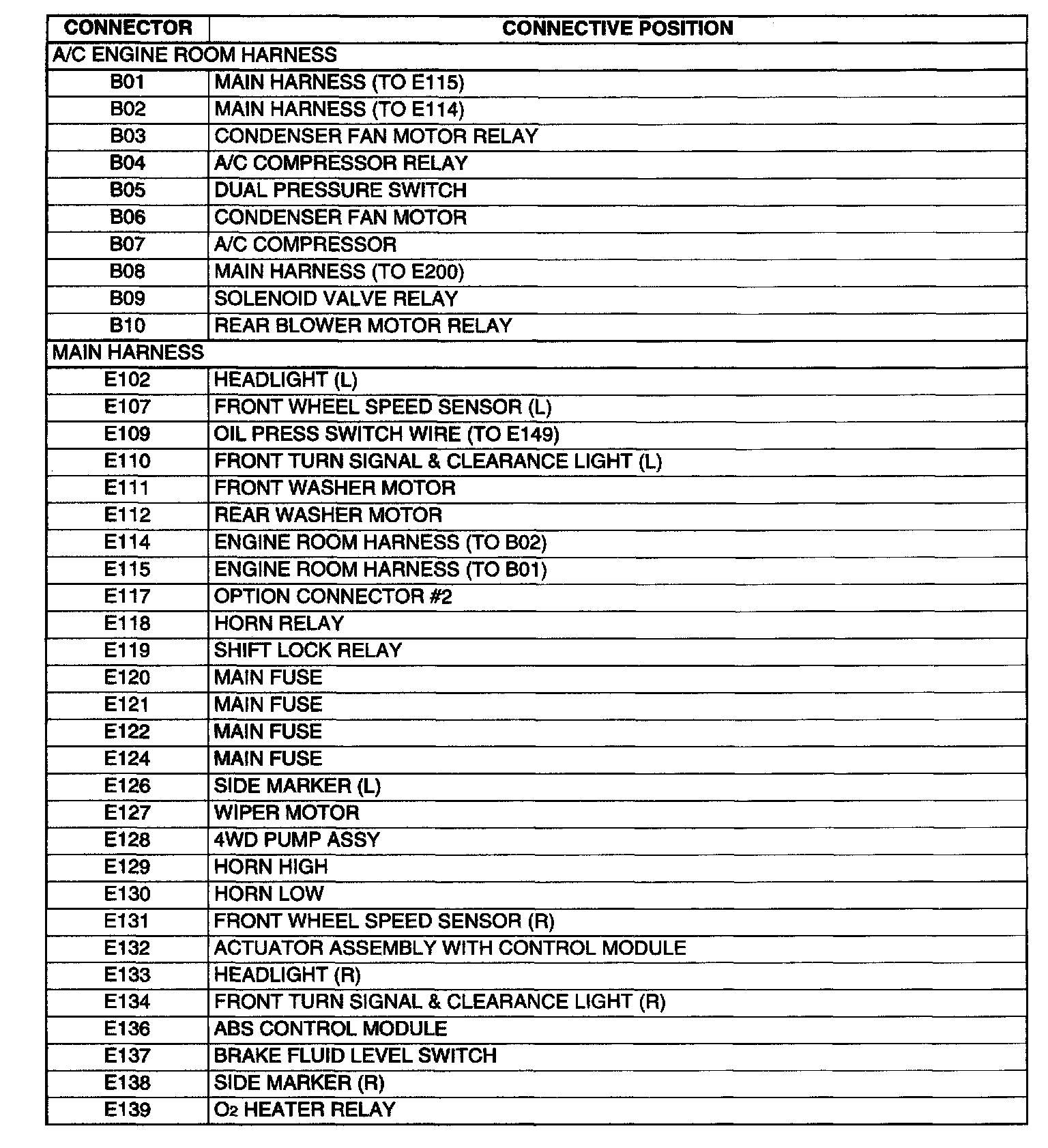

B: A/C Engine Room Harness, E: Main Harness Connectors:

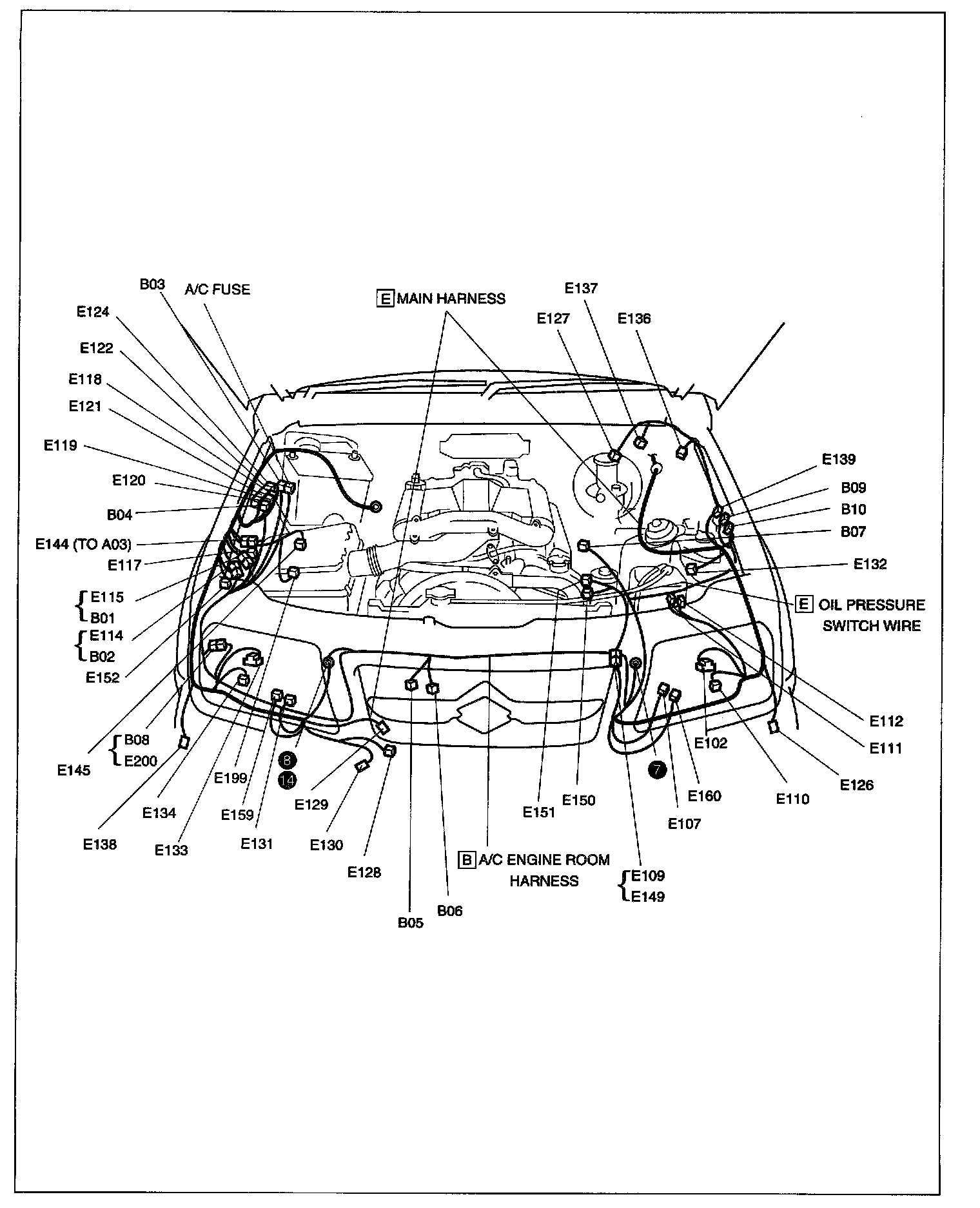

B: A/C Engine Room Harness, E: Main Harness, Oil Pressure Switch Wire:

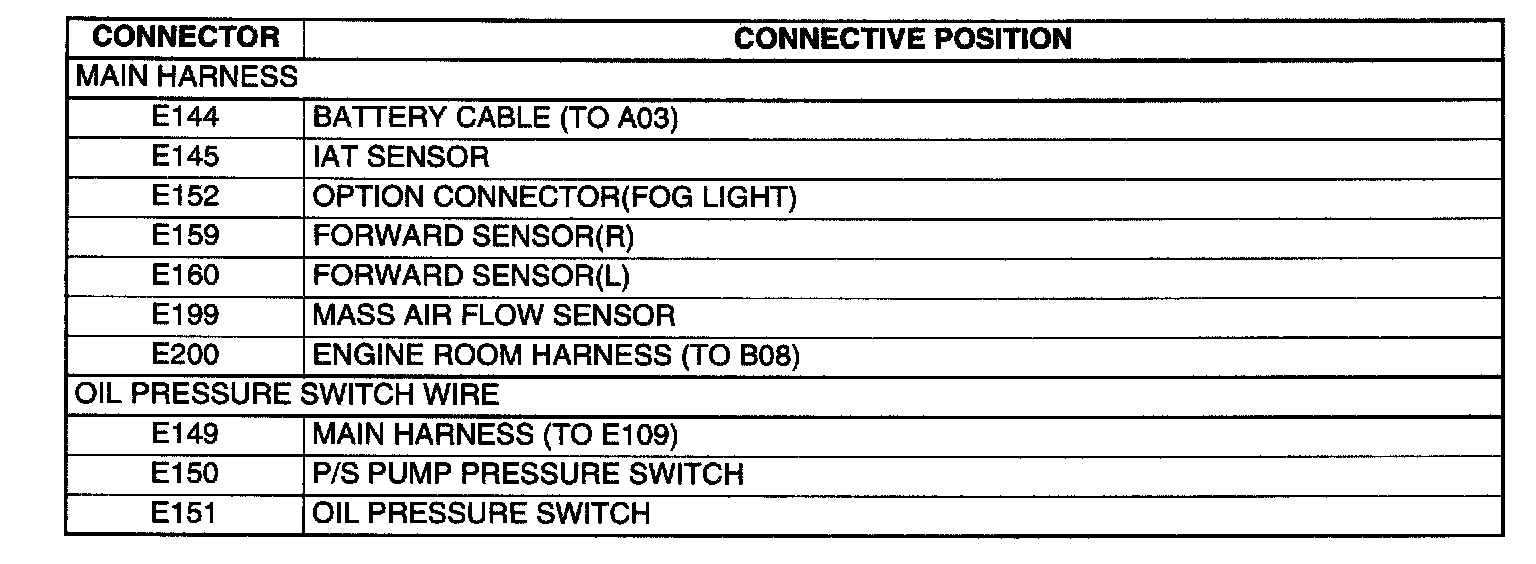

E: Main Harness And Oil Pressure Wire Connectors:
