Alignment: Description and Operation

ALIGNMENT SERVICE DATA (WITHOUT LOAD)

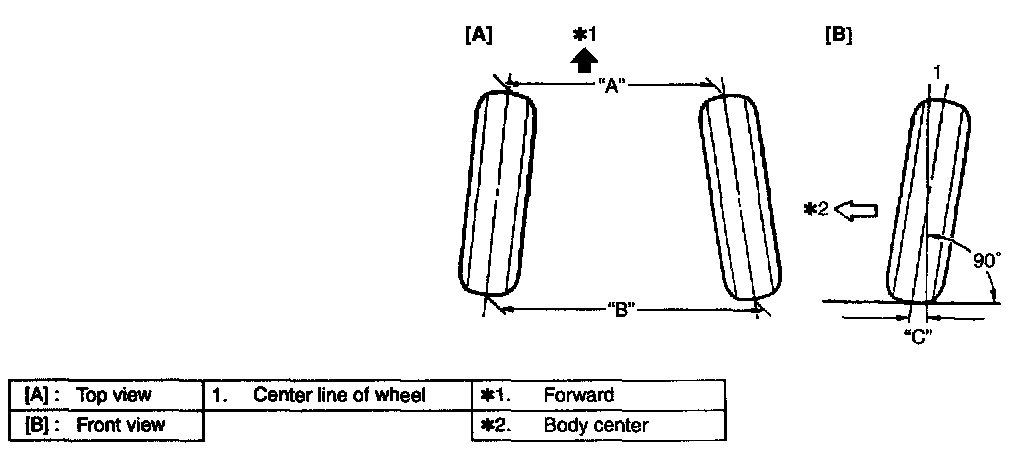

Toe-in (Toe-in gauge measurement)"B" - "A": 1 ± 2 mm (0.04 - 0.08 inch)
Camber angle "C": 0' ± 1.5°
Caster: 2° 30' ± 1°
