Component Tests and General Diagnostics

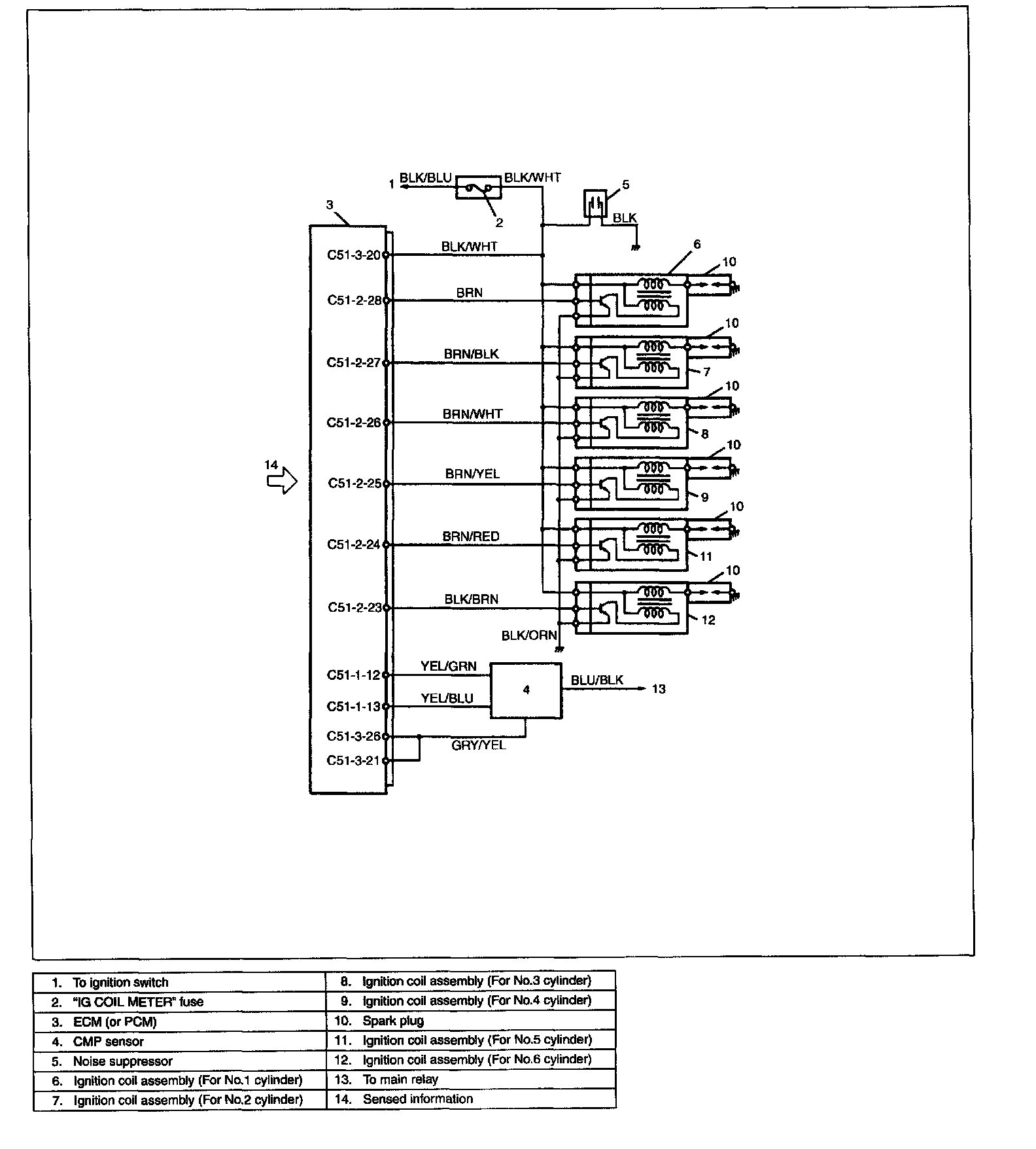

System Wiring:

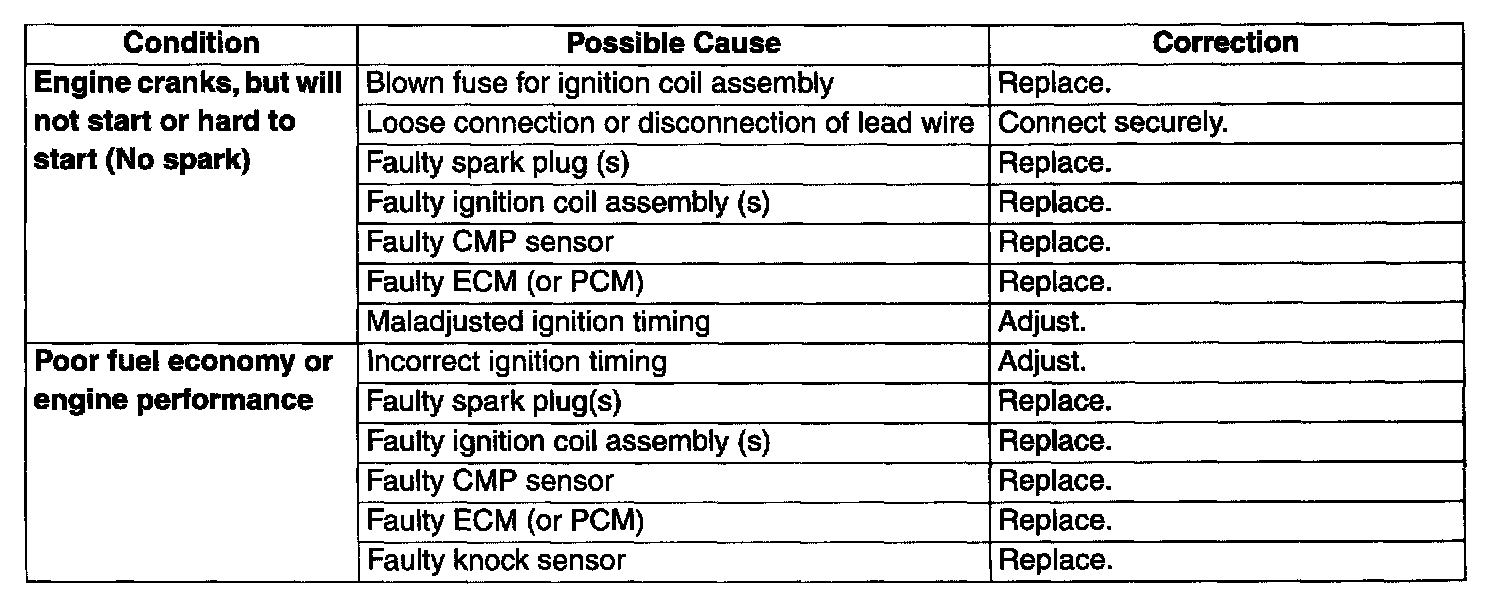

Diagnosis:

REFERENCE

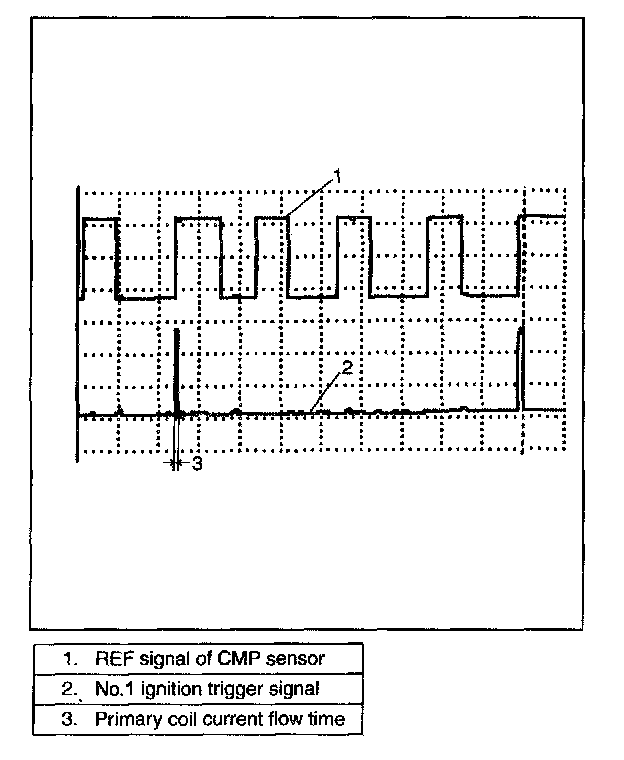

Oscilloscope waveforms of CMP sensor REF signal and No.1 ignition trigger signal are as shown in figure when connecting oscilloscope between terminal C51-1-13 of ECM (PCM) connector connected to ECM (PCM) and ground, and between terminal C51-2-28 and ground.
