Home >> Suzuki Truck >> 2001 >> XL-7 Standard 2WD V6-2.7L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Flow of Diagnosis

Flow of Diagnosis

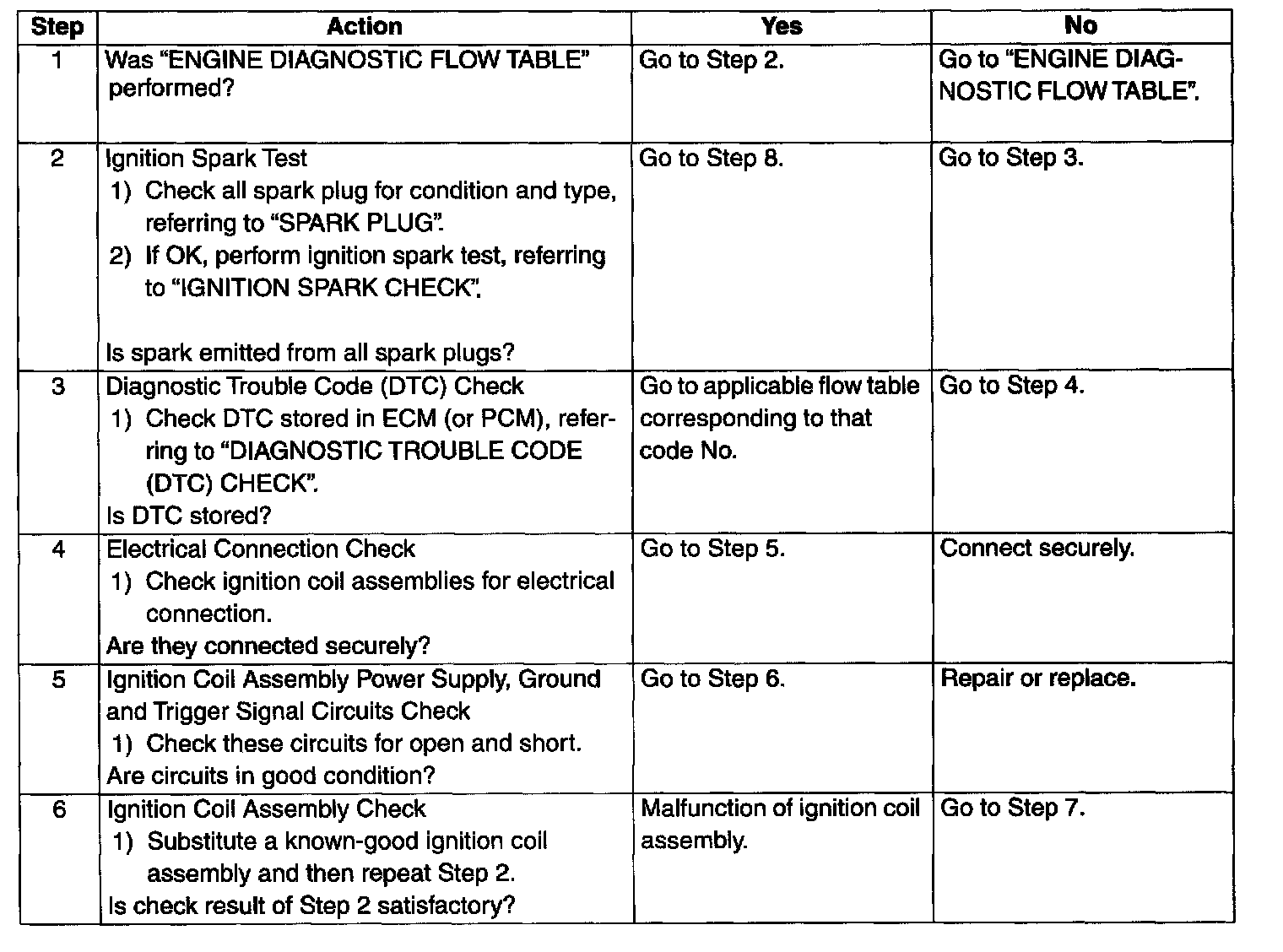

Steps 1 - 6:

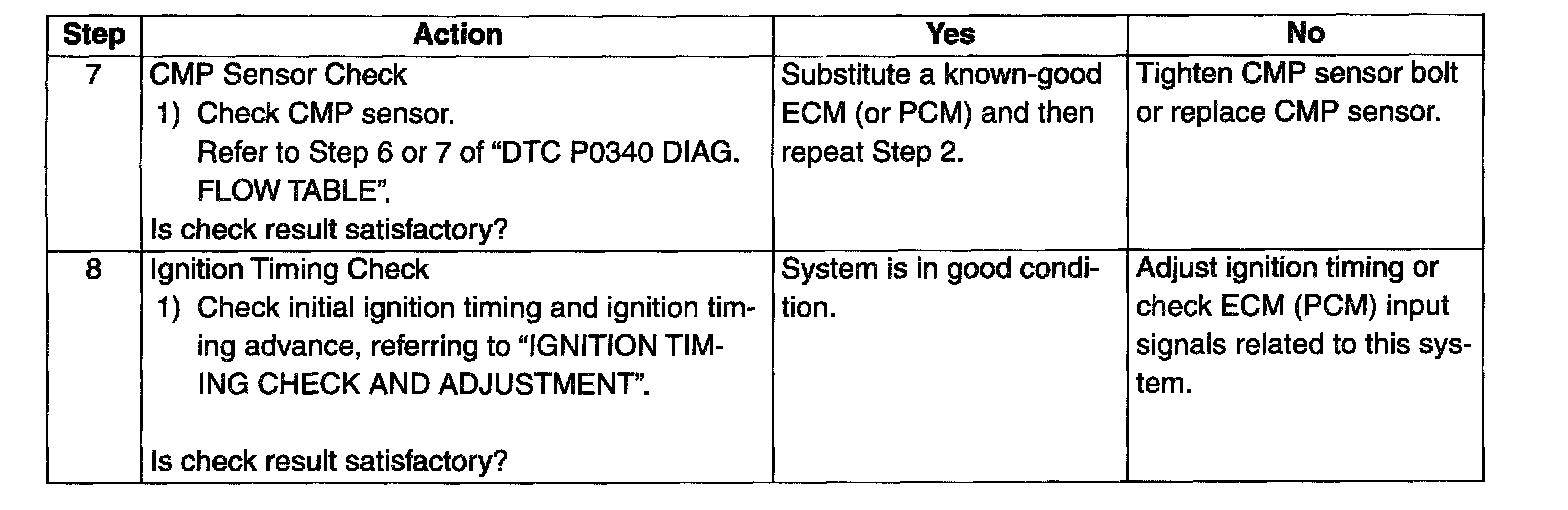

Steps 7 - 8:
