Connector Views

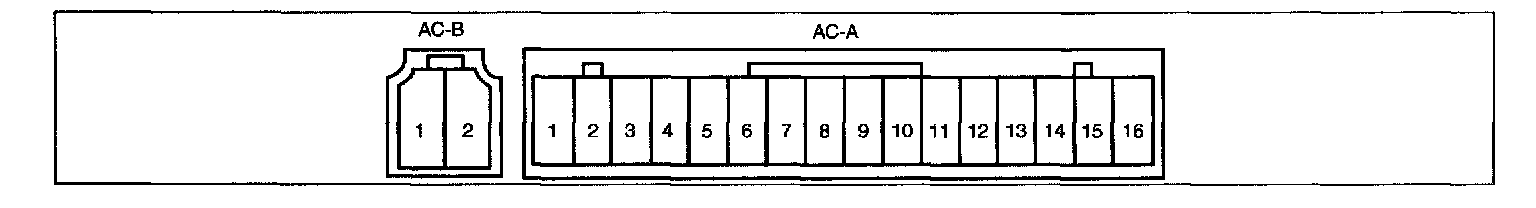

Terminal Arrangement Of A/C Controller:

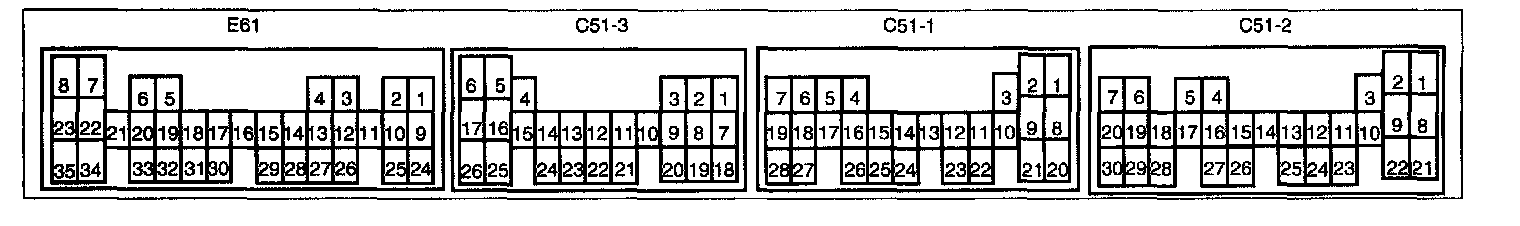

Terminal Arrangement Of ECM:

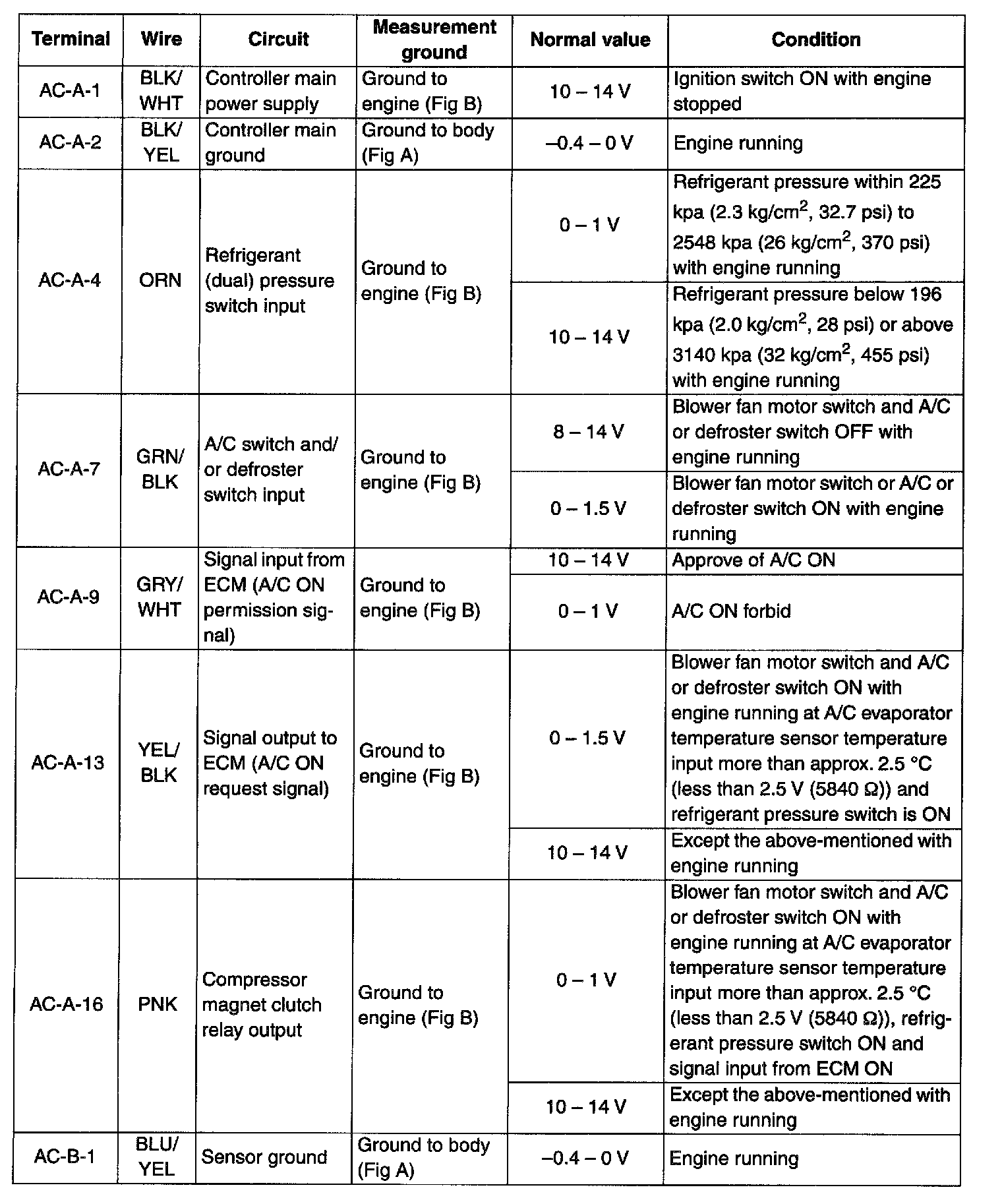

A/C Controller Voltage Values Table (Part 1):

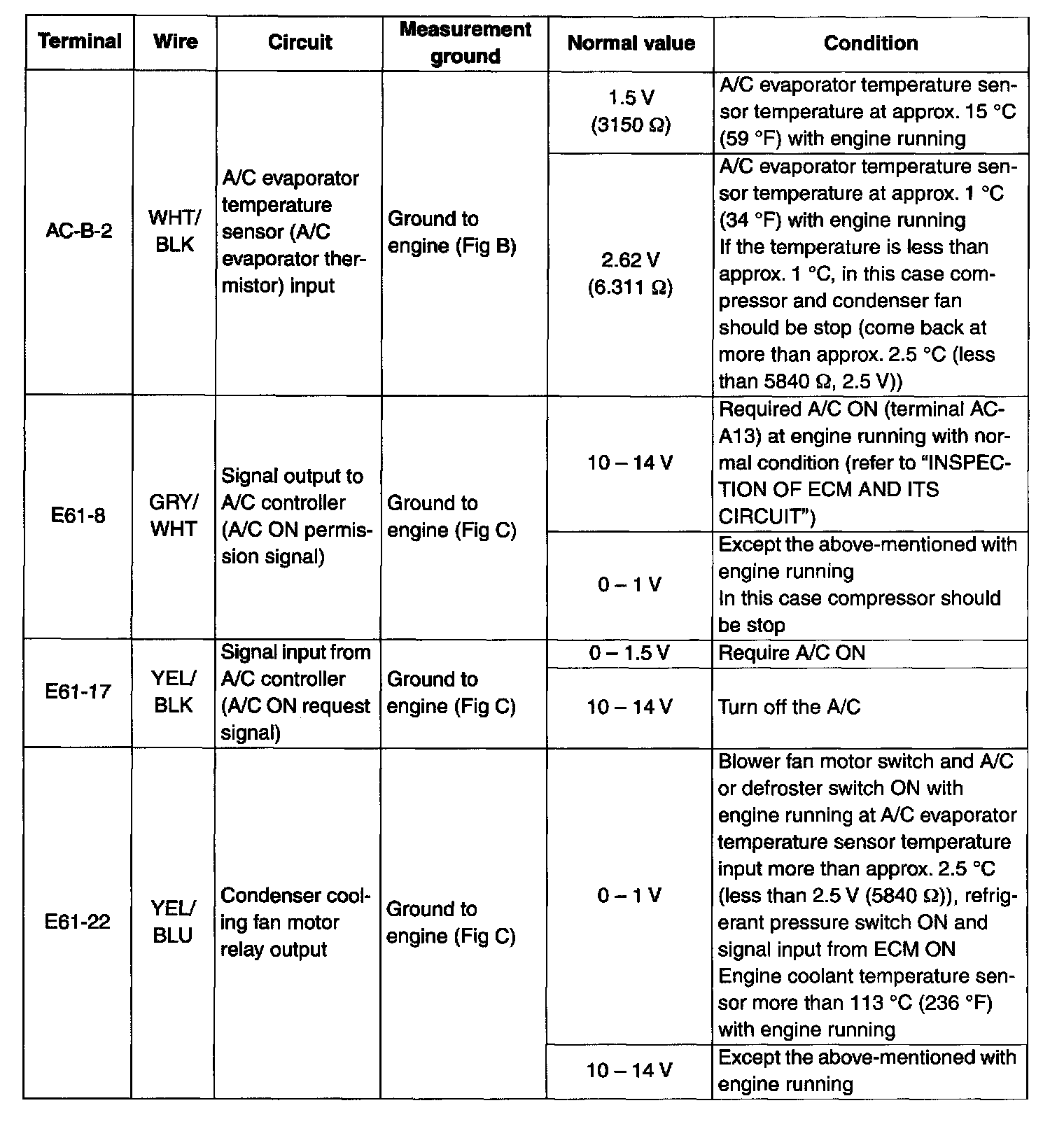

A/C Controller Voltage Values Table (Part 2):
