Suzuki Truck
>>
2001
>>
XL-7 Standard 2WD V6-2.7L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Starter Motor
>>
Specifications
>>
Electrical Specifications

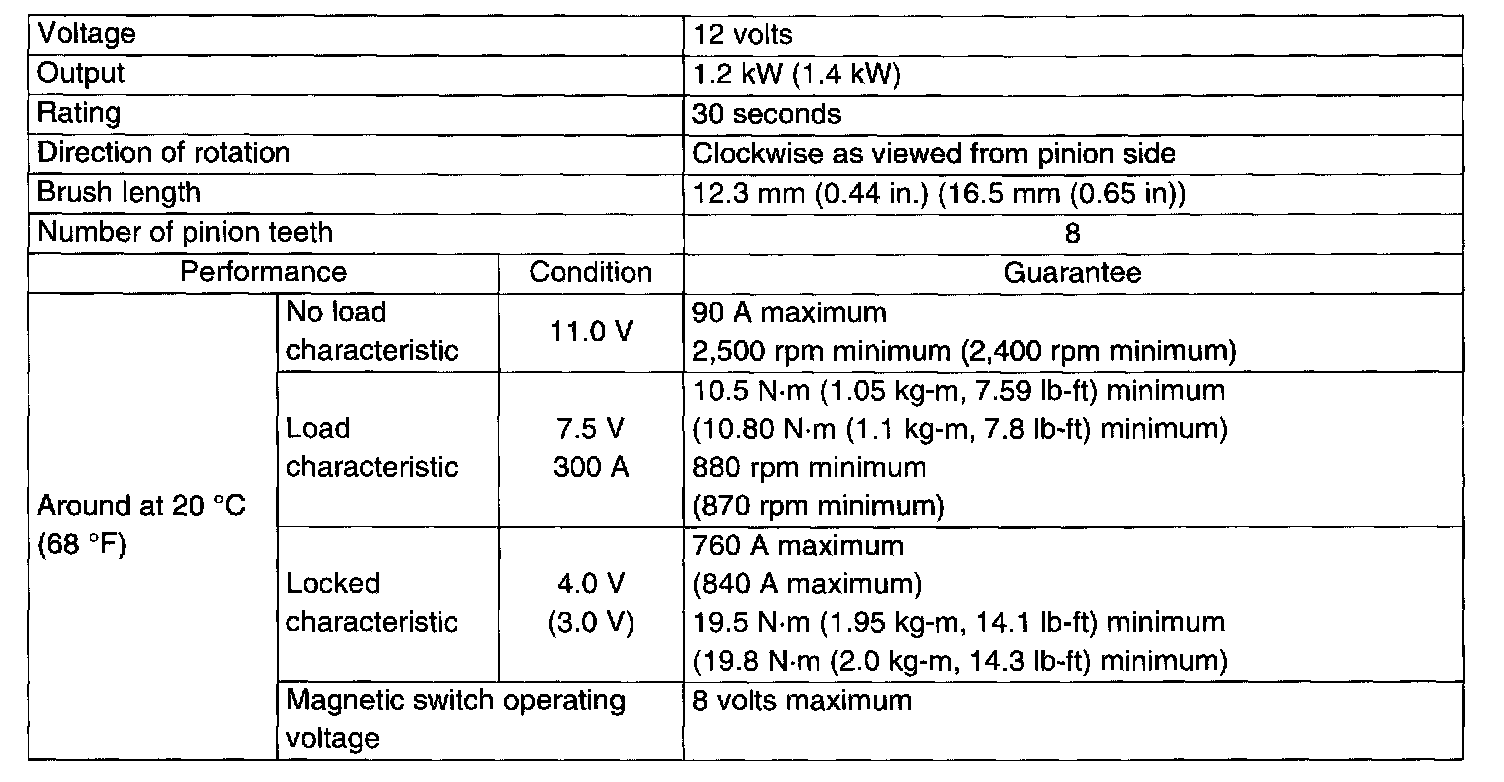

Electrical Specifications
1.2 KW TYPE (1.4 KW TYPE):
