Suzuki Truck
>>
2004
>>
Grand Vitara 2WD V6-2.5L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Blower Motor
>>
Diagrams
>>
Exploded Views
Exploded Views

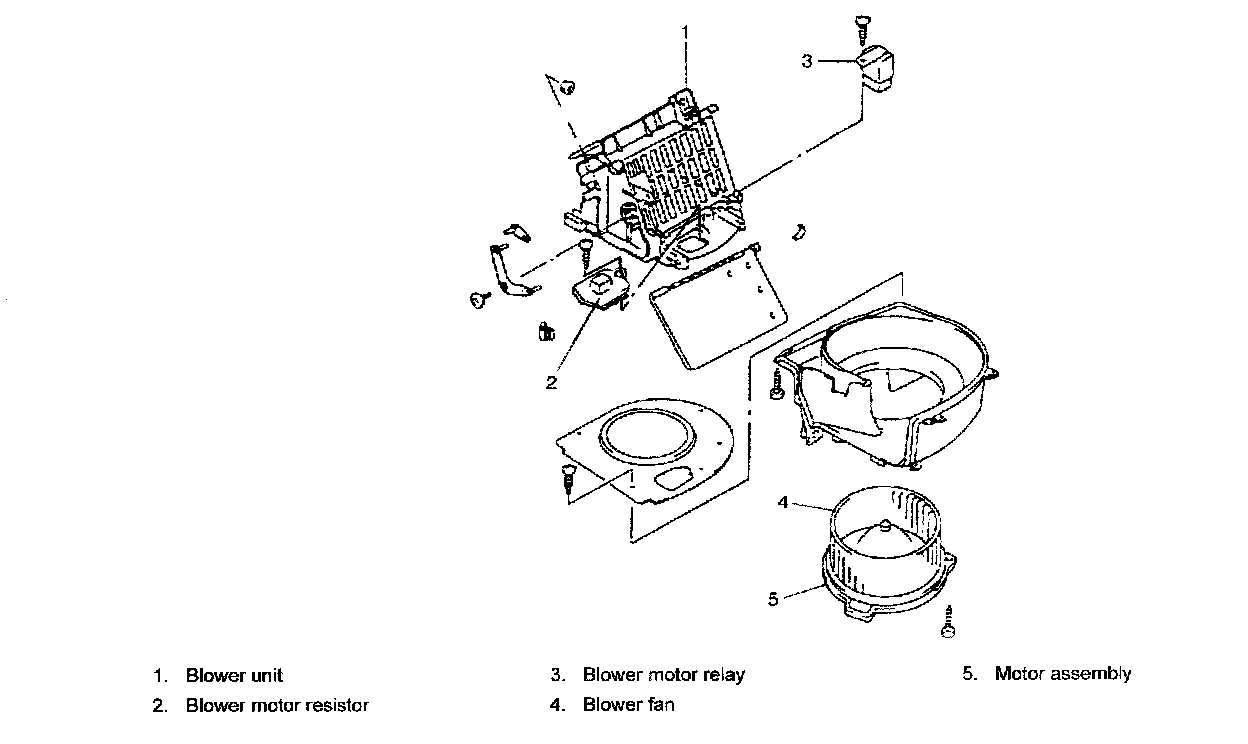

Heater Blower Unit Components:
