Ignition Timing: Testing and Inspection
Idle Speed and Ignition Timing CheckIDLE SPEED
With SDT
Check idle speed in "Data list" mode with SDT.
With GST
Check idle speed in Service $01 with GST.
IGNITION TIMING
Any of following two methods may be used.

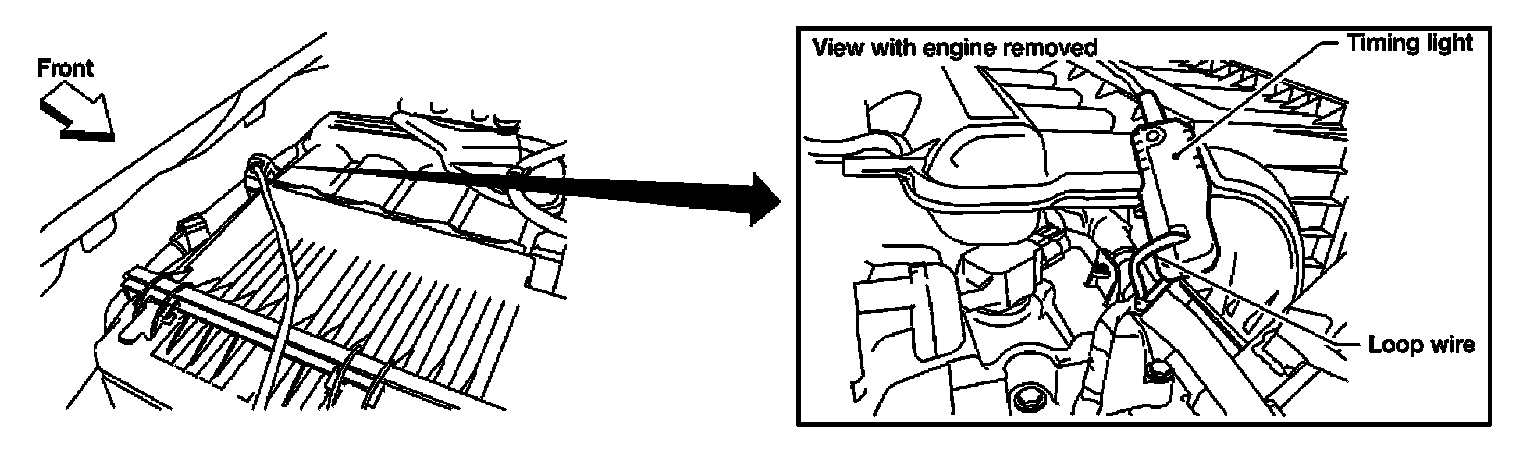

1. Attach timing light to loop wire as shown.

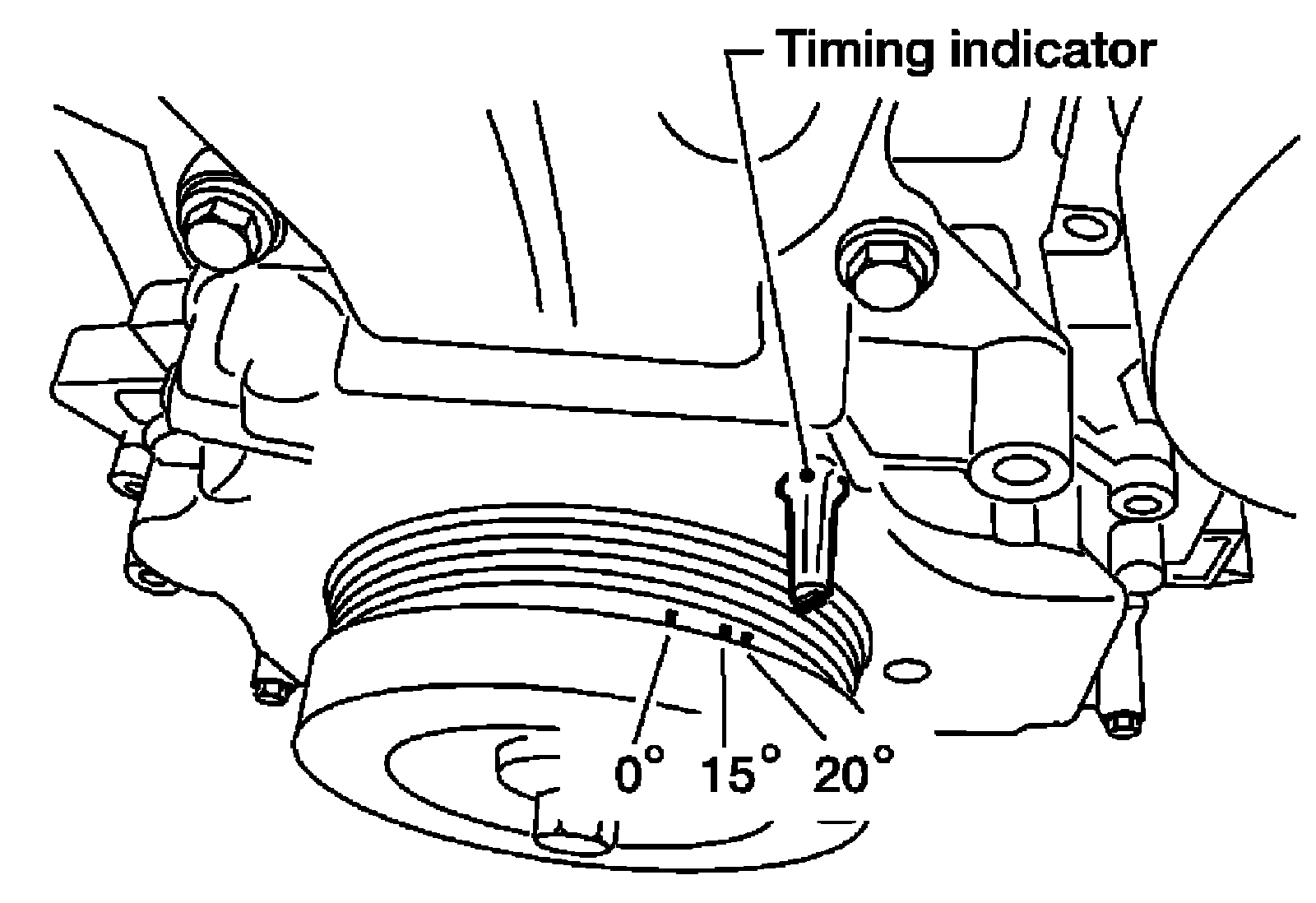

2. Check ignition timing.
