Intake Manifold

Intake manifold bolts: 9.4 Nm (0.96 kg-m, 83 in-lb)
Tighten in numerical order as shown.

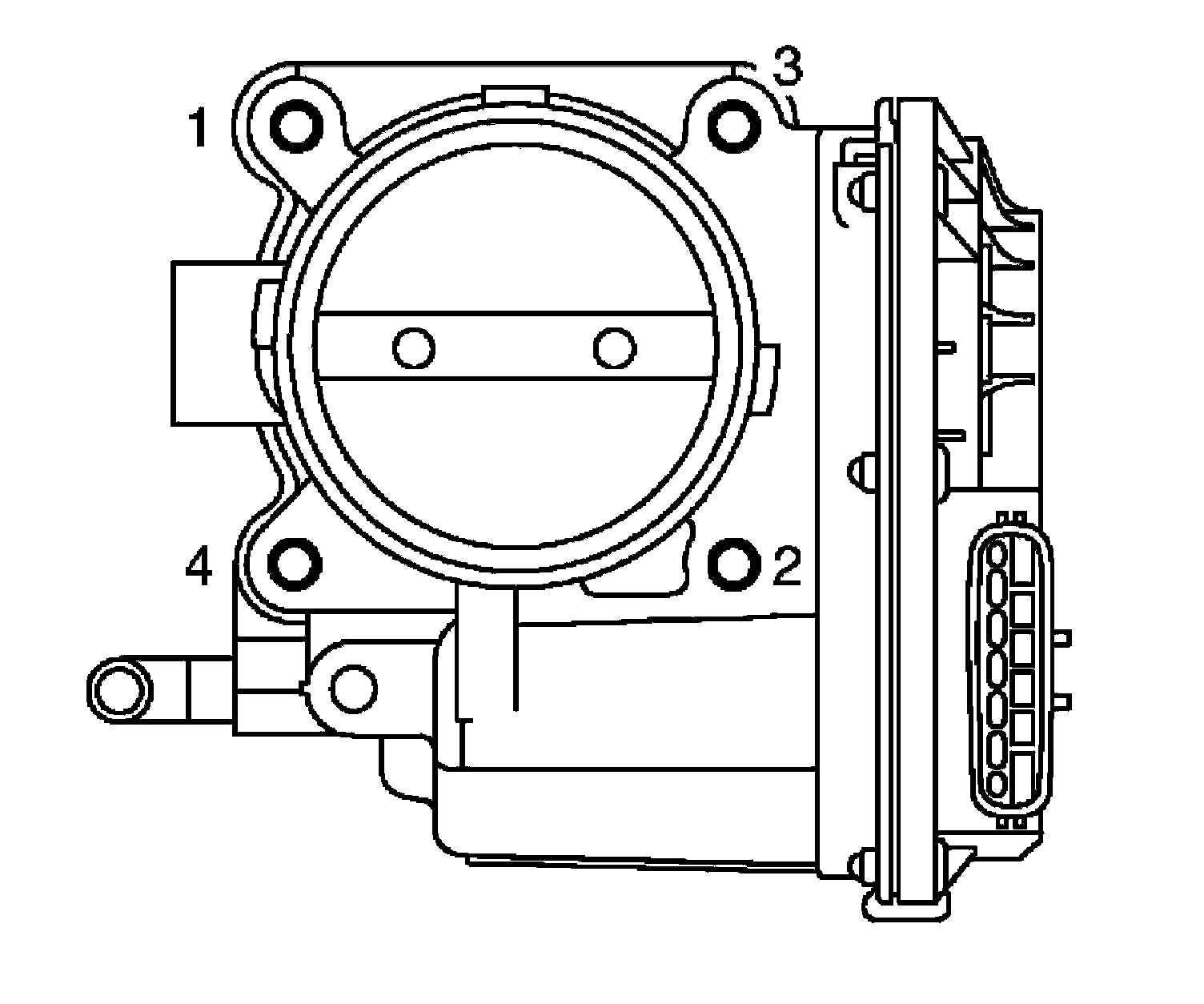

Electric Throttle Control Actuator bolts 10.0 Nm (1.0 kg-m, 7 ft-lb)
Tighten bolts equally and diagonally in several steps and in numerical order as shown.
