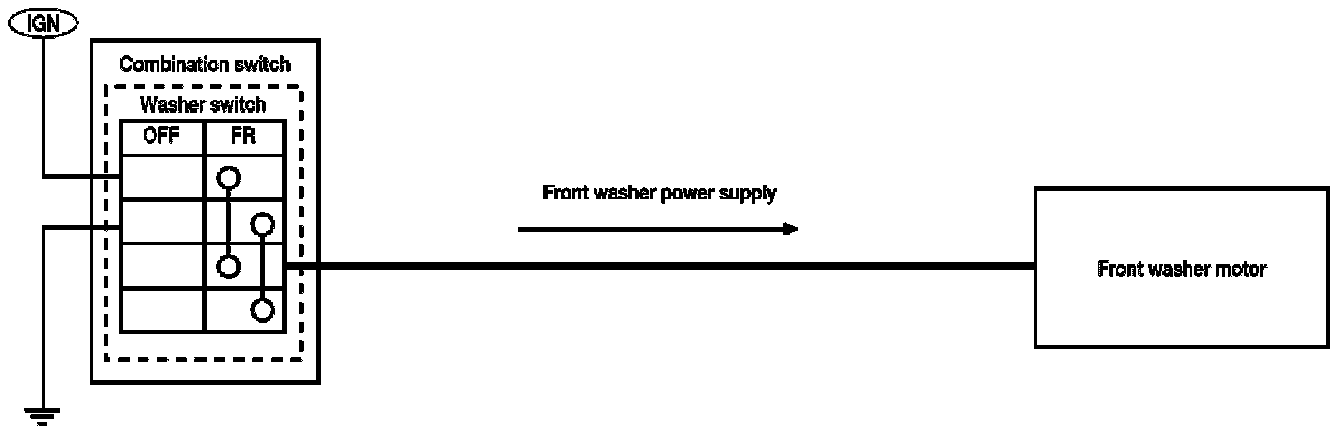

Washer Switch Circuit Check
Washer Switch Circuit Check
Washer Switch Circuit Check
Description
Washer switch is integrated with combination switch.

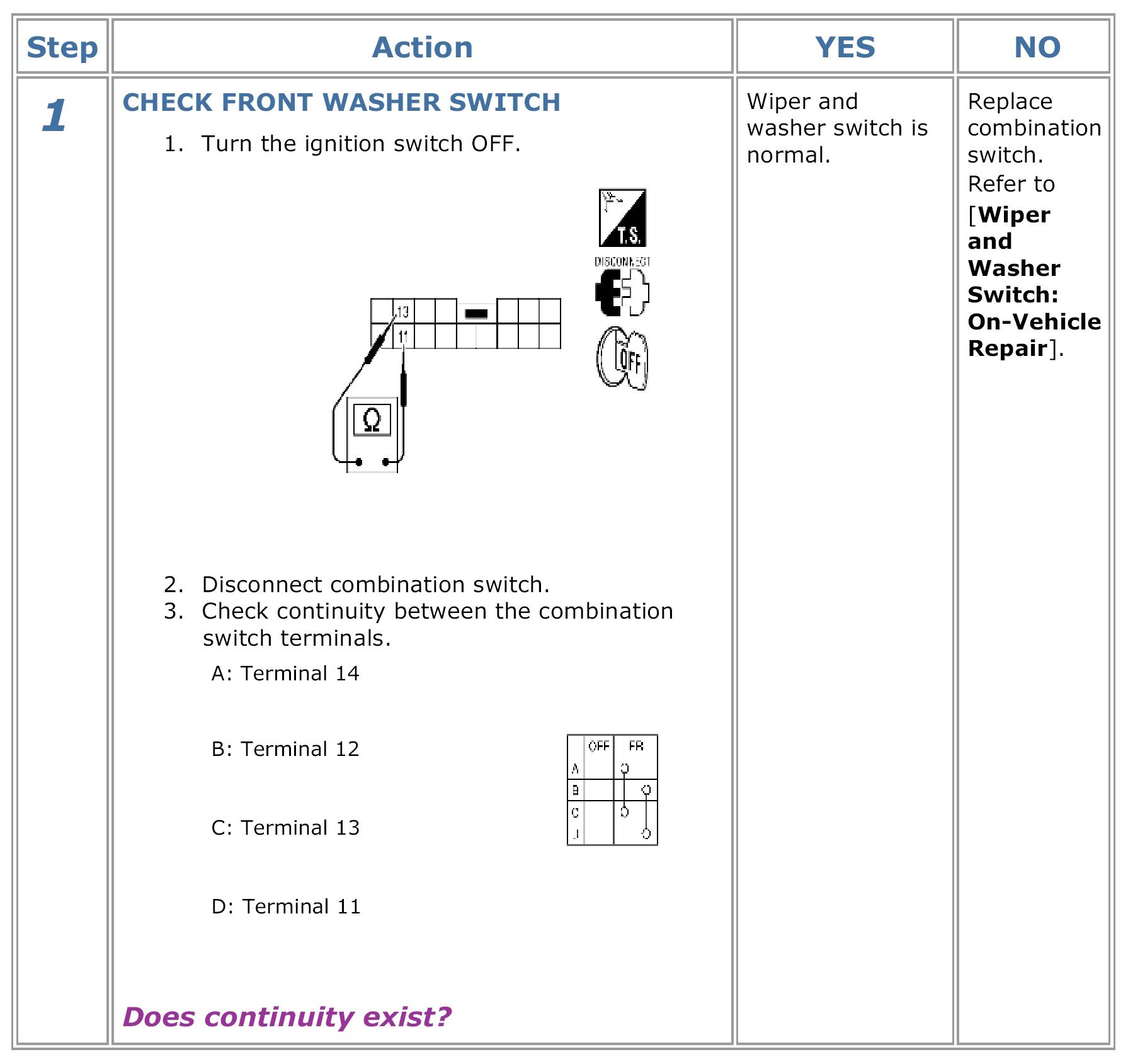

Component Inspection
