Evaporator Temperature Sensor / Switch: Service and Repair
A/C Evaporator Temperature Sensor Removal and InstallationRemoval

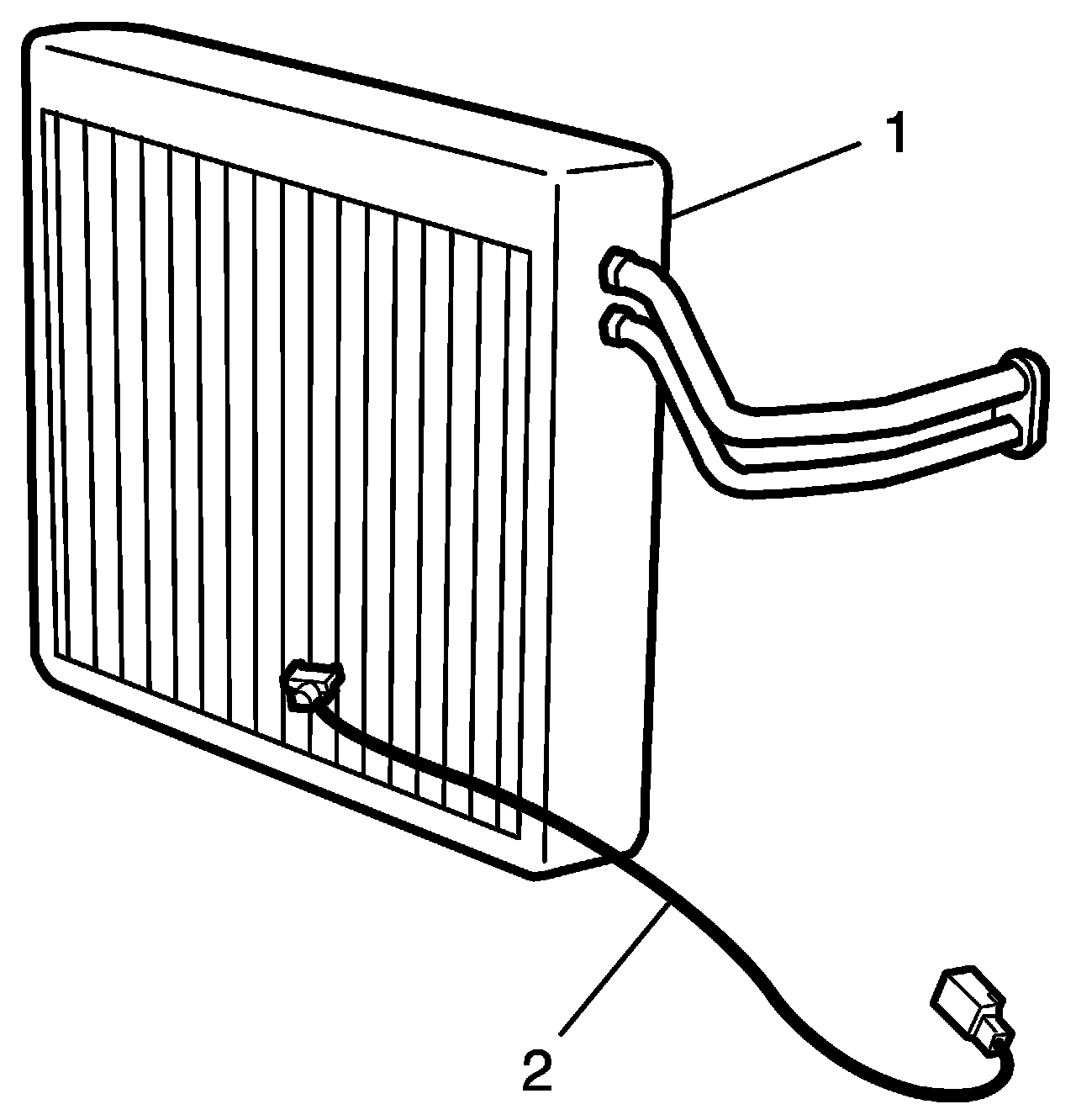

1. Remove A/C evaporator (1) referring to A/C Evaporator Removal and Installation.
2. Remove A/C evaporator temperature sensor (2) from evaporator.
Installation

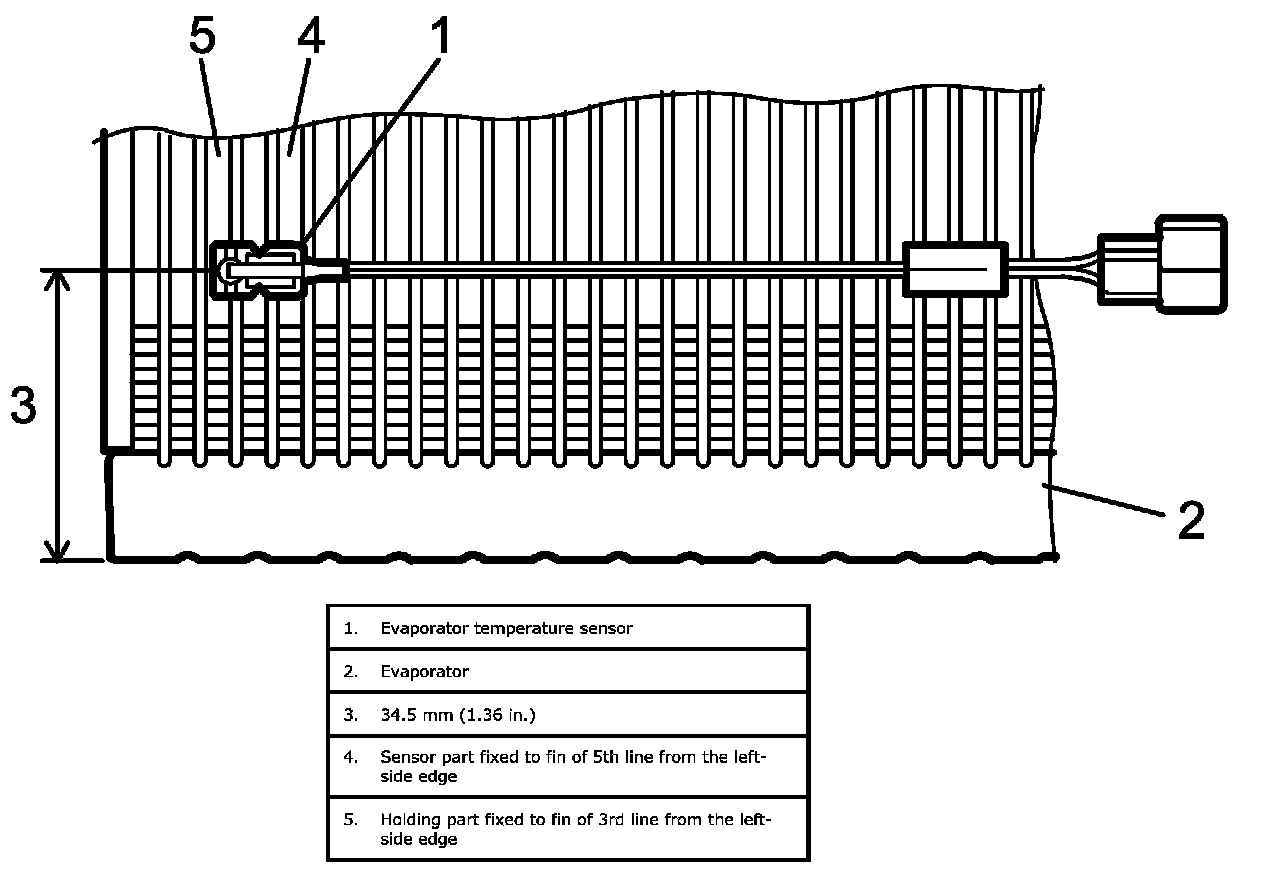

1. Install evaporator temperature sensor onto evaporator in specified position as shown in figure.
CAUTION: Mis-position causes insufficiency cooling and damaged of A/C system.
