Homelink Universal Transceiver Circuit Check
Homelink Universal Transceiver Circuit CheckDescription
Homelink universal transceiver can store and transmit a maximum of 3 radio signals.
Allows operation of garage doors, gates, home and office lighting, entry door locks and security system, etc.
Homelink universal transceiver power supply uses vehicle battery, which enables it to maintain every program in case battery is discharged or removed.

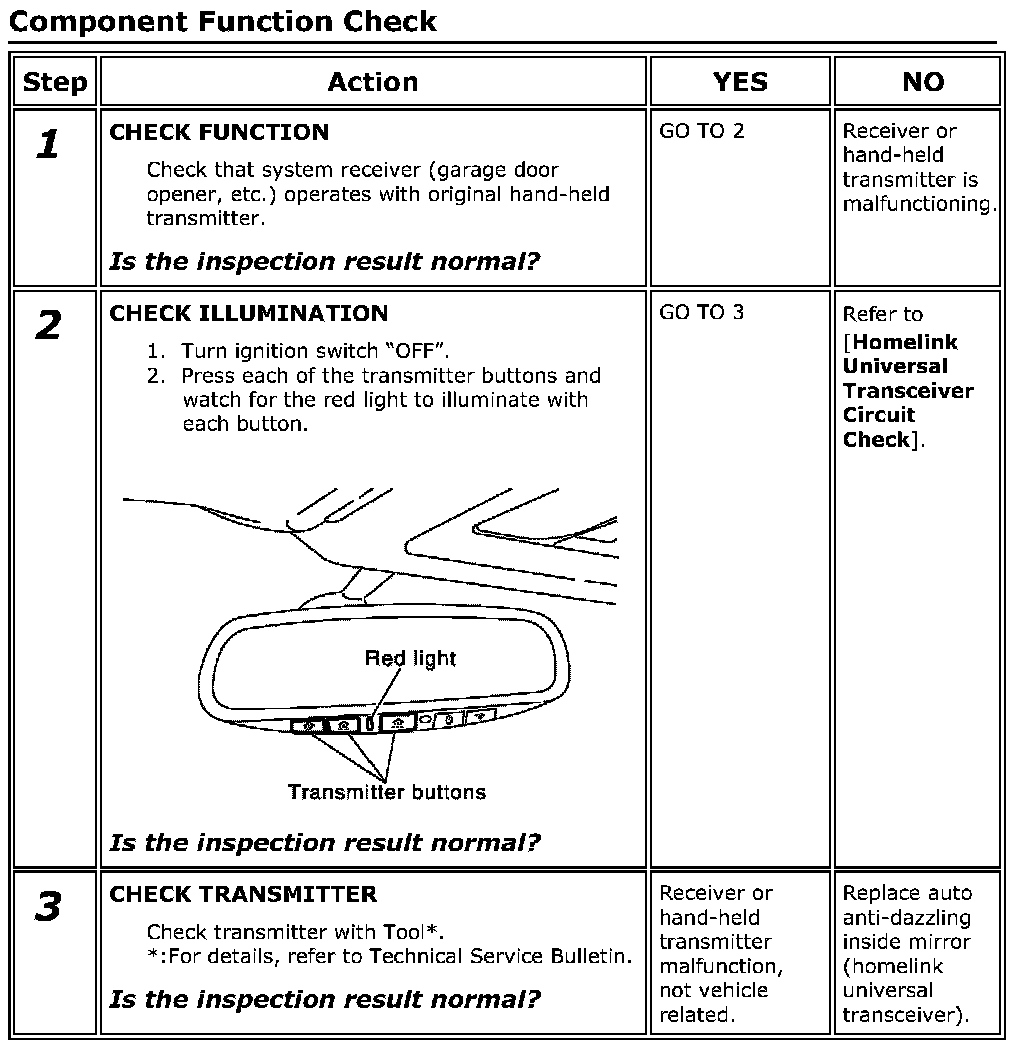

Component Function Check
Step 1-3:

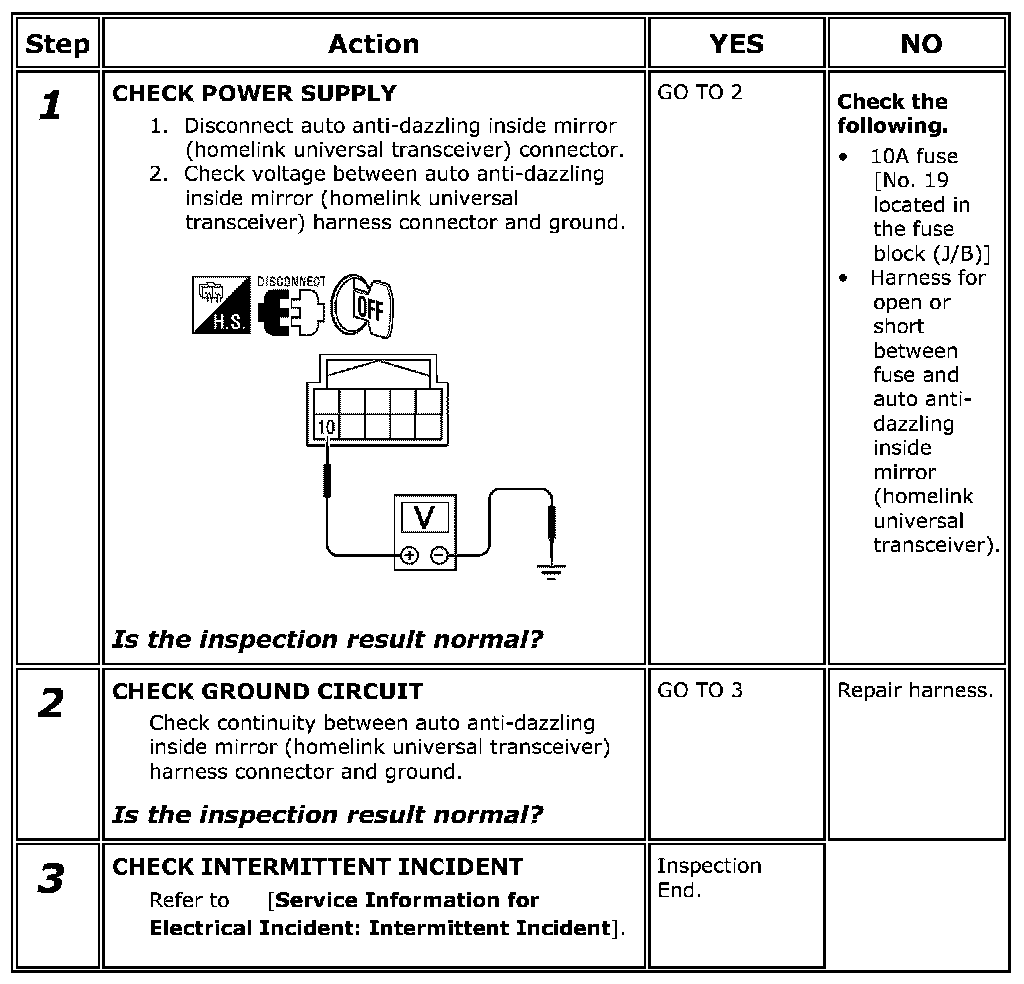

Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Homelink Universal Transceiver: Wiring Diagram]. [1][2]Electrical Diagrams
Step 1-3:
