Initial Inspection and Diagnostic Overview
Initial Inspection and Diagnostic Overview
Diagnosis and Repair Workflow

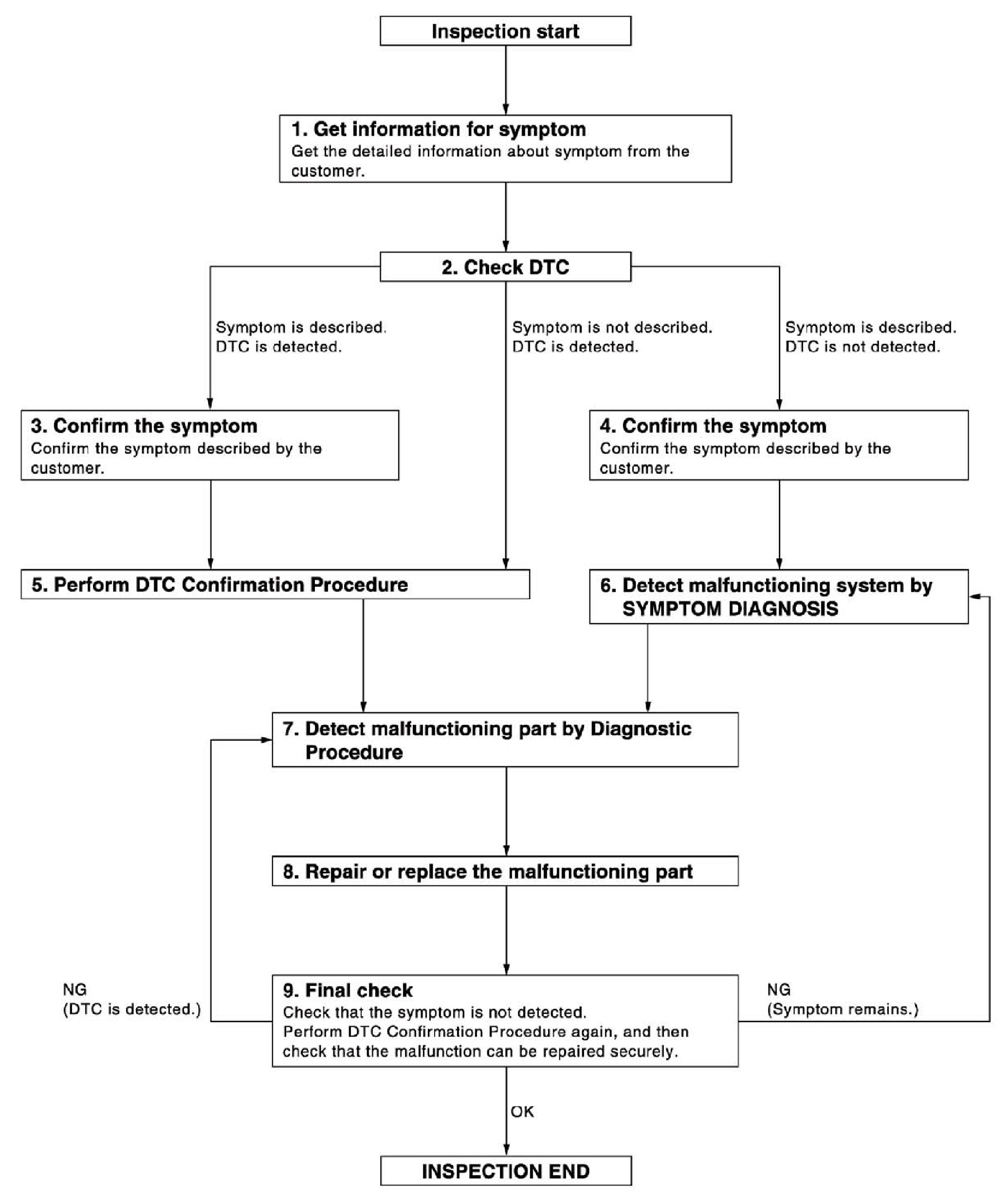

Overall Sequence

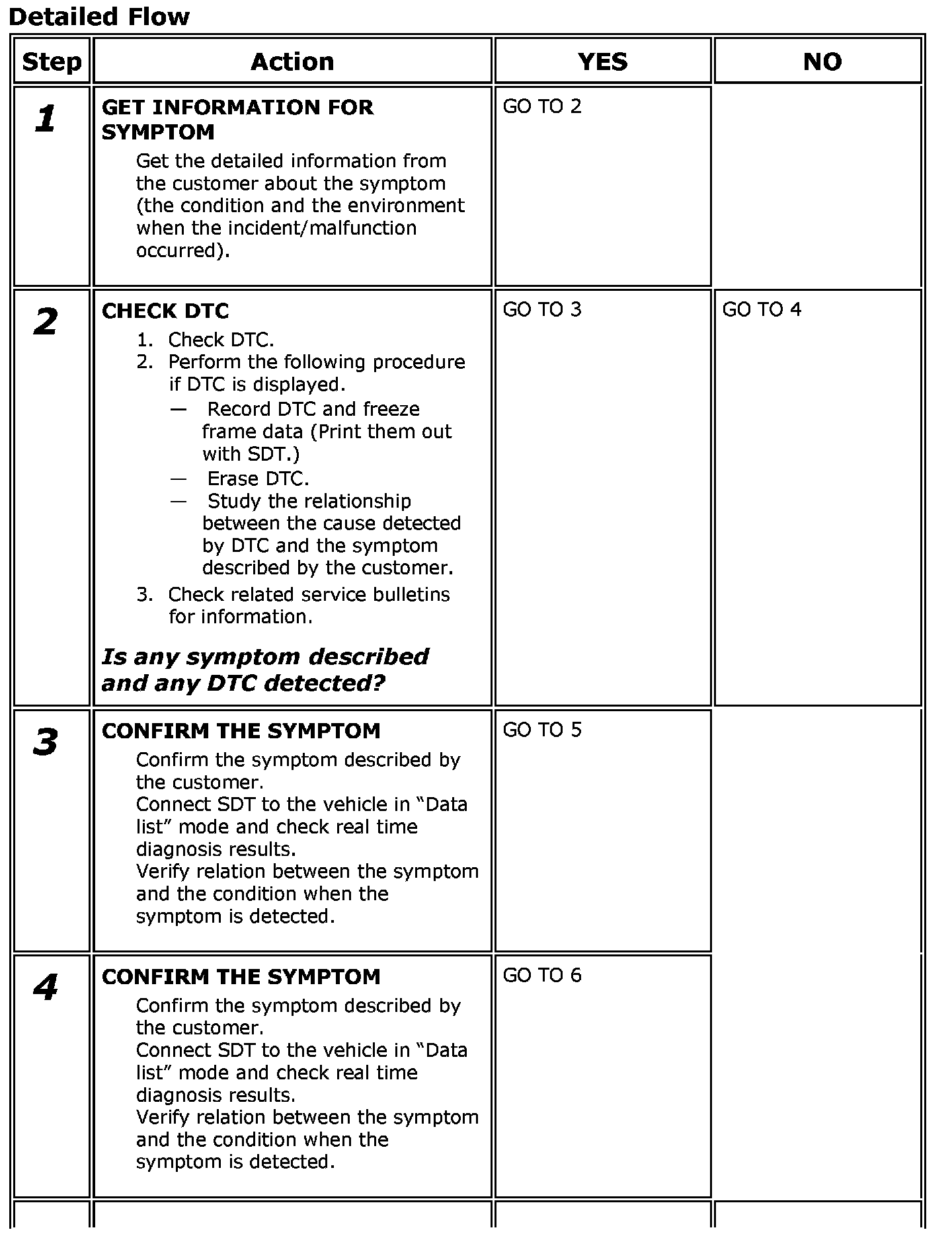

Detailed Flow
Step 1-4:

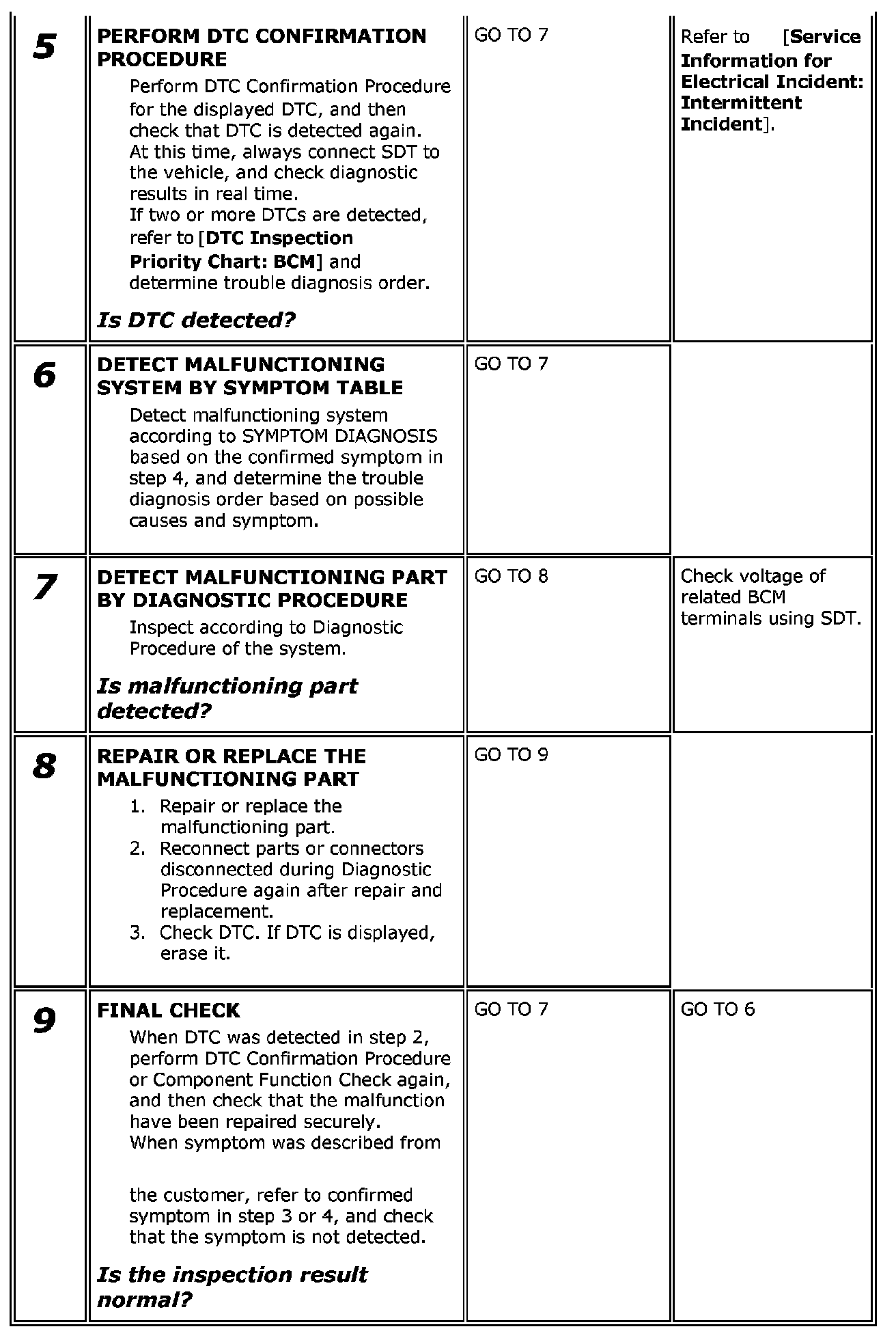

Step 5-9:
