Suzuki Truck
>>
2010
>>
Equator 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Chassis Harness
Chassis Harness
Chassis Harness

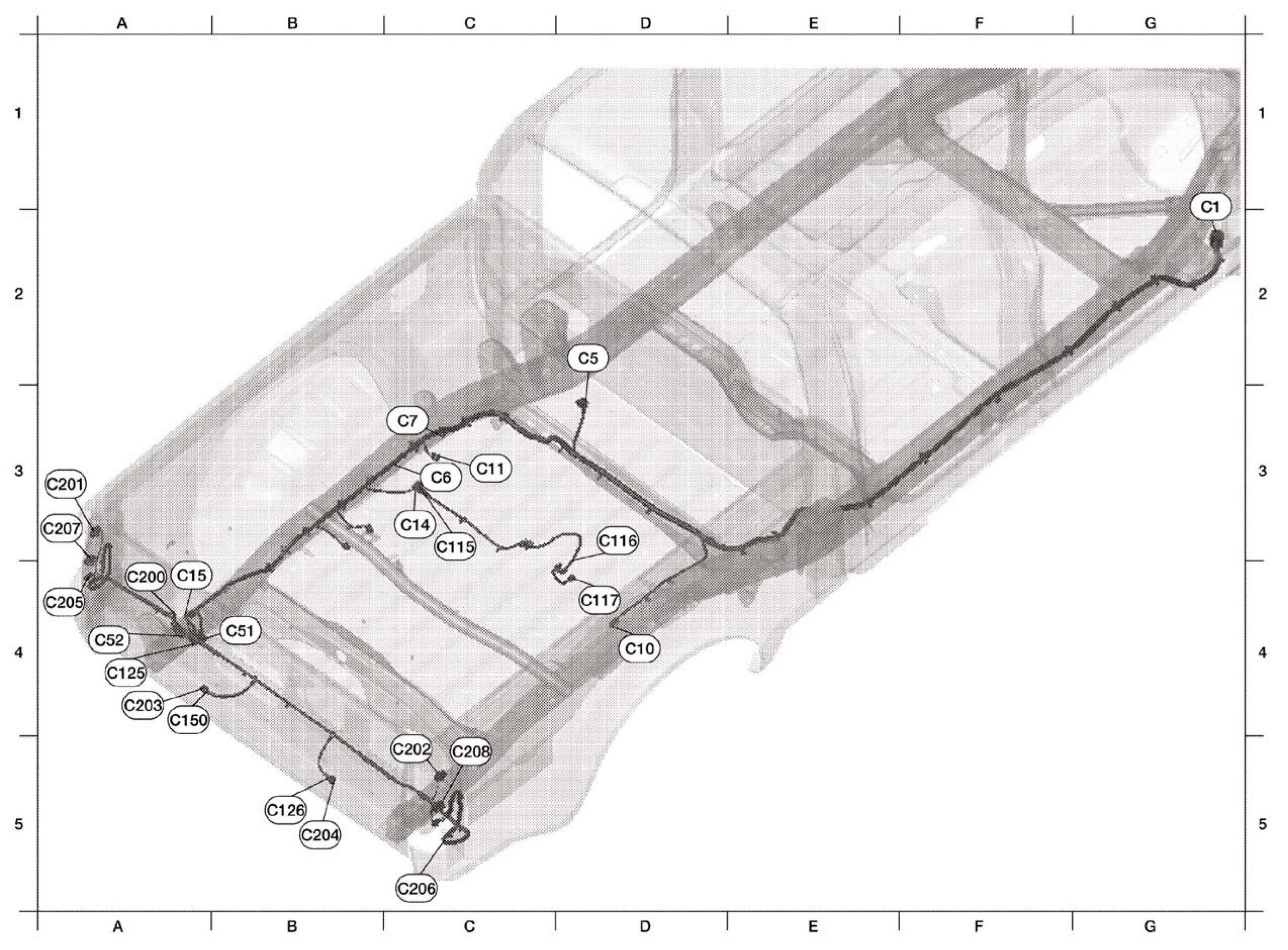

Chassis Harness View:

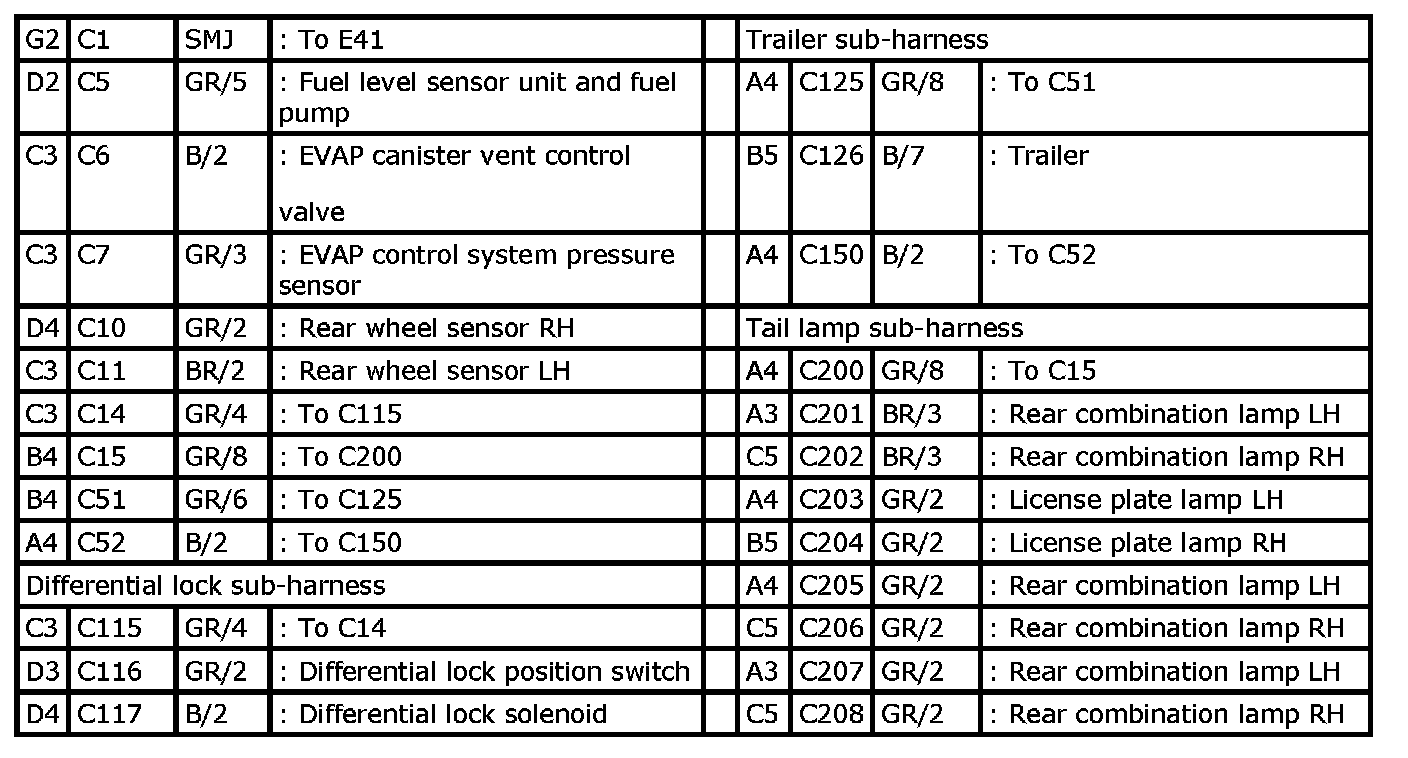

Chassis Harness Index:
