Engine Room Harness (LH View)
Engine Room Harness (LH View)
Engine Room Harness (LH View)

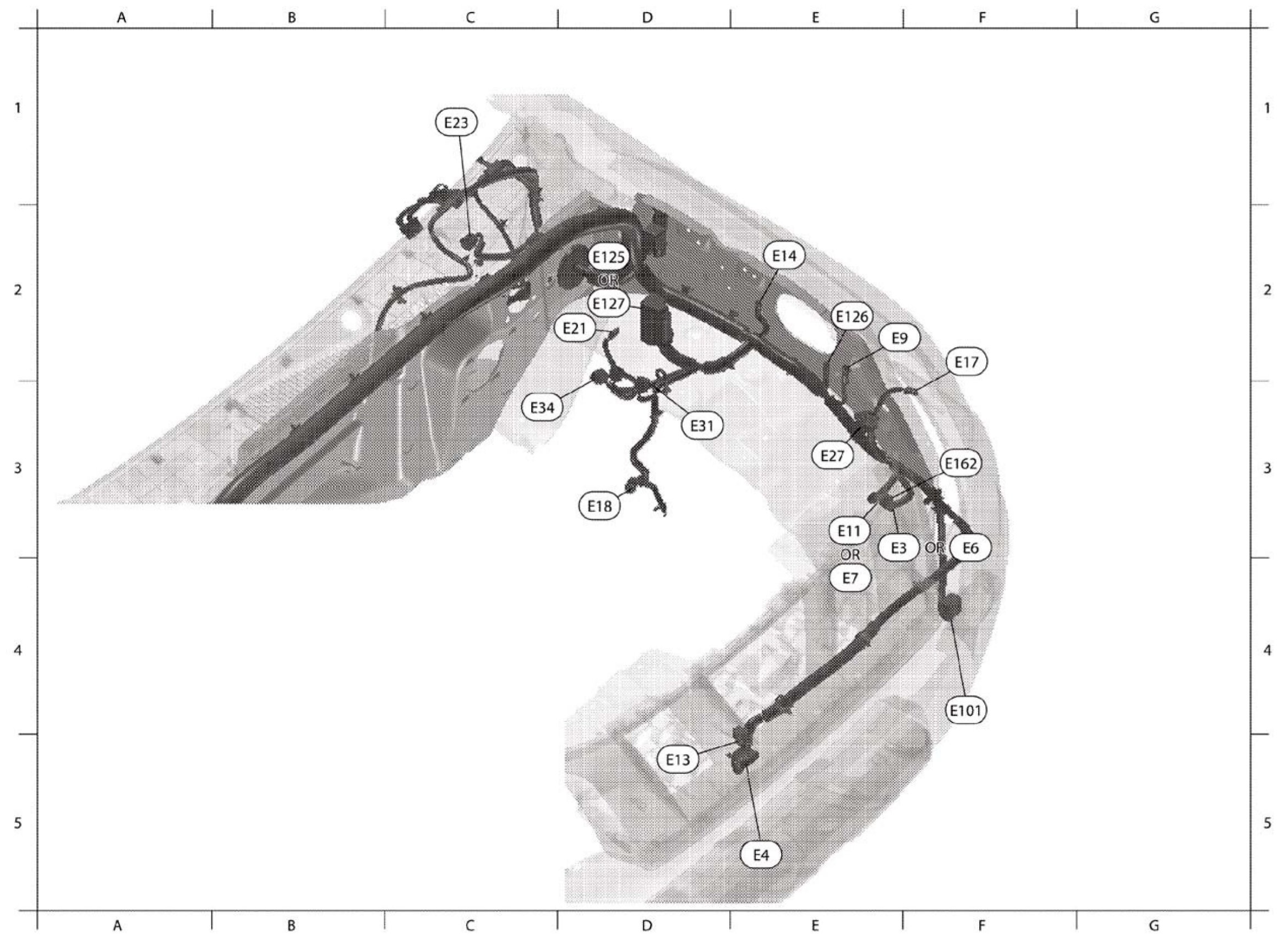

Engine Room Harness (LH View):

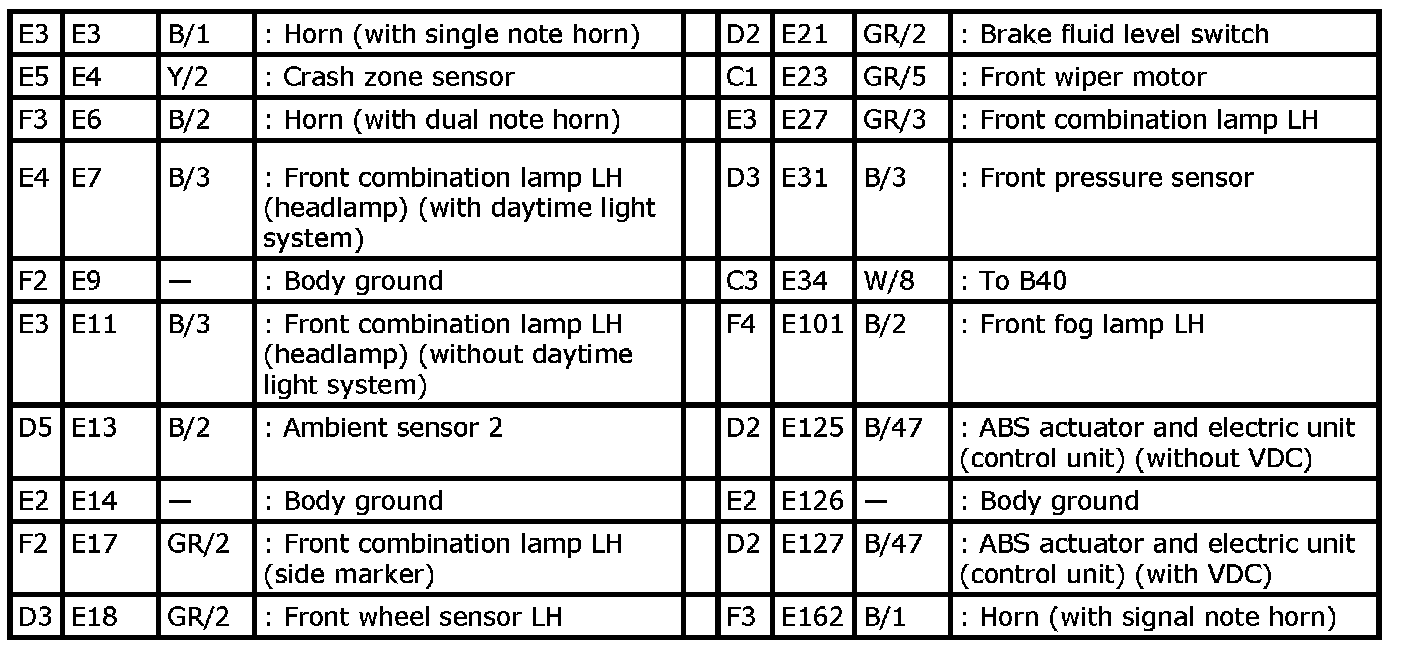

Engine Room Harness (LH View) Index:
